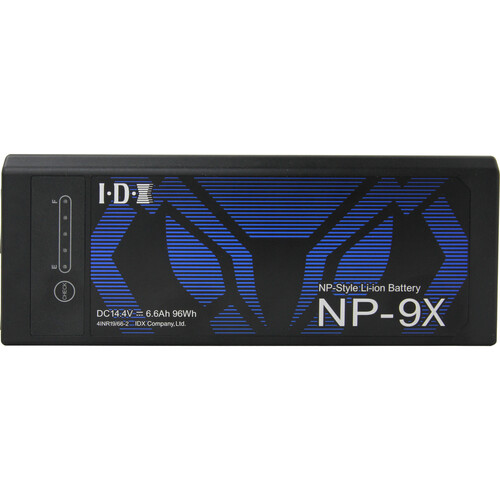

IDX NP-9X Battery

Overview
The NP-9X is a powerful battery with a capacity of 96Wh (14.4V / 6.6Ah). It meets the strict requirement of being ≤ 100Wh for carry-on on passenger aircrafts. This battery also features 2x D-Tap outputs and can be charged via D-Tap, but only with the compatible IDX VL-DT1 D-Tap charger. The 5 LED power indicator allows for displaying 10% increments, making it easy to monitor the battery’s remaining power. It is also compatible with all current accessories and chargers, just like its predecessor NP-L7S, which is the industry standard for powering audio equipment.

The NP-9X is the successor of the NP-L7S and has improved upon its features. It now has a higher capacity and an additional D-Tap output. The D-Tap Advanced port can also function as a charge port when used with the IDX VL-DT1 charger. Despite these improvements, the NP-9X remains compatible with all current accessories and chargers, including the JL-2PLUS. With its enhanced features and compatibility, the NP-9X is a reliable and efficient choice for powering audio equipment.

Summary
Battery Capacity: 96Wh
Battery Capacity: 50-98Wh
Battery Indicator: Yes
Battery Mount / Type: NP-9X
Battery Technology: Li-ion
Voltage: 14.4v
Included in box
1x NP-9X 96Wh Li-ion Battery

About the IDX NP-9X Battery
NP-9X is the successor of the NP-L7S, the industry standard NP-style battery for powering audio equipment. It now features 96Wh, two D-Tap outputs, and a 5 LED power indicator. One of the D-Tap ports is a D-Tap Advanced, which can also be a charge port when used with the IDX VL-DT1 charger. NP-9X is stll compatible with all current accessories and chargers like the JL-2PLUS.

Capacity 96Wh (14.4V / 6.6Ah)
Max Output Voltage 16.8V
Nominal Voltage 14.4V
Max Draw 4.6A / 50W (total of main connector and D-taps)
End Voltage 11V

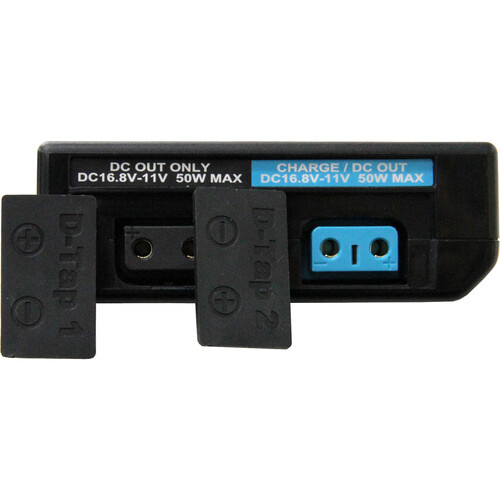

Power Outputs 1x D-tap (50W)
1x D-tap Advanced (compatible only with IDX VL-DT1 charger)
Additional Feature 5 LED Power Indicator
Battery Protection Over-charge/discharge/current, Thermal
Ambient Temperature To charge: 0°C~40°C
To discharge: -20°C~45°C
To store -20°C~40°C
Dimensions 184.5mm x 71.2mm x 24.7mm
Weight 520g

96Wh (14.4V / 6.6Ah) capacity
Meets ≤ 100Wh passenger aircraft carry-on requirement
2x D-Tap outputs
Charging via D-Tap (compatible only with IDX VL-DT1 D-Tap charger)
5 LED power indicator (two-step LED allows for displaying 10% increments)
Compatible with all current accessories and chargers
