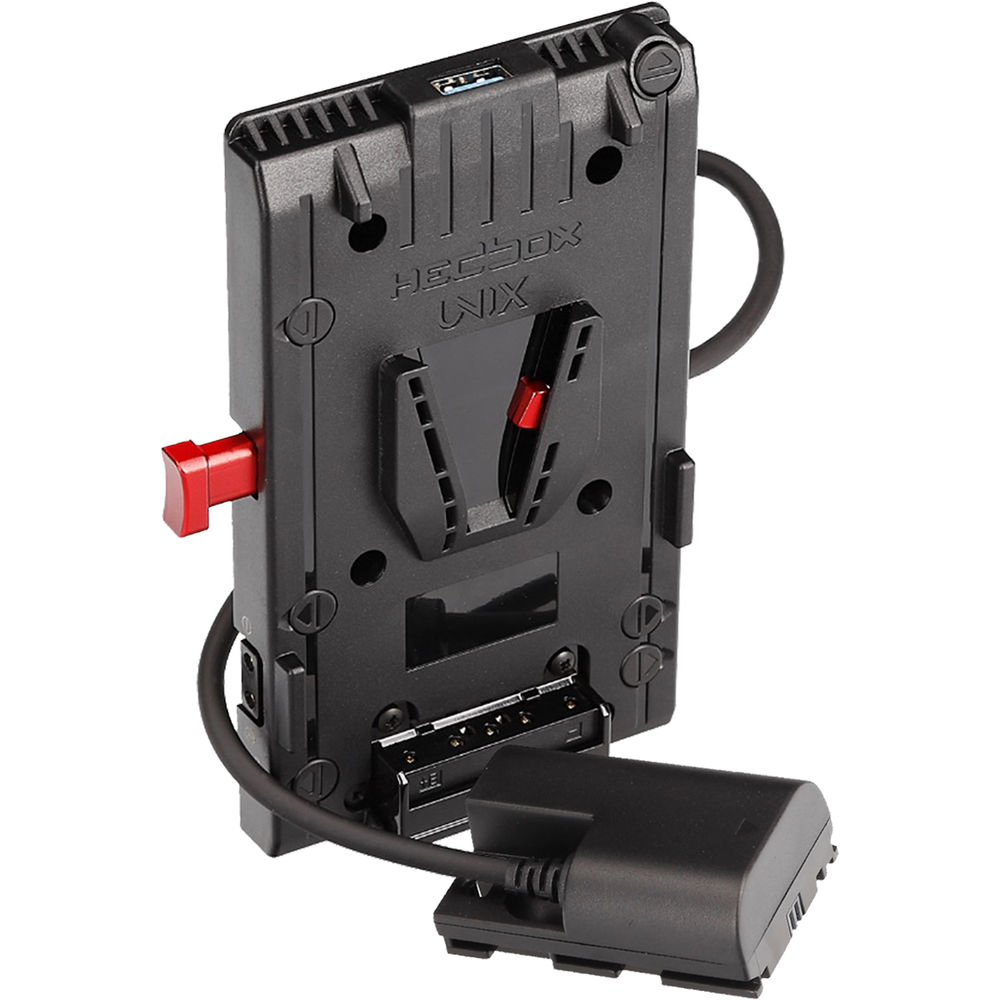

Hedbox HB-UNIX-LPE6 Battery Plate

Overview
The UNIX-LPE6 is a versatile power source for various cameras and devices that use an LP-E6 battery. It comes with a breakaway 50cm DC cable and a LPE6 dummy battery housing, allowing for a longer and more stable power supply. The high-quality aluminium V-lock release, with up to 10,000 cycles, ensures a secure connection with the V-mount battery on the Unix plate. Additionally, it features three D-Tap 14.8V DC power outputs and a USB 5V/2.1A power out socket, making it a convenient power station for multiple electronic devices.

With multiple mounting holes and the option to use M3x12 screws, the Unix plate can be easily attached to any camera or device. This makes it a universal and reliable power source for various equipment. The USB 5V/2.1A output can also be used to charge external electronic devices, making the Unix V-lock plate a versatile and essential tool for any photographer or videographer.

Summary
Battery Mount: V Mount

Included in box
1 x UNIX-LPE6 V-Mount Plate
1 x Set of M3x12 Screws (4pcs)
1 x User Manual – (English)
1 x 2 Year Limited Manufacturer’s Warranty

About the Hedbox HB-UNIX-LPE6 Battery Plate
With an installed breakaway DC 7.2V regulated power cable, UNIX-LPE6 can be used to power various cameras and devices that use an LP-E6 battery. Connect your select device to the UNIX-LPE6 with the LPE6 dummy battery coupler. This coupler fits inside your camera’s battery compartment, replacing the standard LP-E6 battery pack with a longer, more constant power supply.

Adopting technology that allowed Hedbox to use a high-quality aluminium alloy V-lock release, the lock and unlock provides up to 10,000 cycles for a V-mount battery on the Unix plate.

Unix provides three D-Tap 14.8V DC power outputs. Three D-taps allow for extra powering for cameras, on board recorders, LED lights, monitors, remote follow focus, wireless transition systems, etc.
With multiple mounting holes,(4 x M3x12 screws provided)) Unix is able to mount on to any device or camera connection.

The USB 5V/2.1A output can be used to power any external USB electronic devices. This function allows you to use the Unix V-lock plate like a power station to charge your cell phone, tablet, or any other electronic devices that can be powered with USB 5V power.

Model UNIX-LPE6 V-Mount Adapter Power Plate
Battery Mount V-Lock Mount
D-Tap Power Out 1 DC 12V ~ 16.8V / 10A / 148W (Max) unregulated
D-Tap Power Out 2 DC 12V ~ 16.8V / 10A / 148W (Max) unregulated
D-Tap Power Out 3 DC 12V ~ 16.8V / 10A / 148W (Max) unregulated
USB Output DC 5V / 2.1A /10W (Max)
Breakaway DC Cable DC 7.2V / 3.5A / 25W (Max) 50cm (length)/ Regulated Canon LP-E6 Dummy Housing
V-lock release High Quality Aluminium Alloy
Operating Temperature –20°C to +45°C (–4°F to +113°F)
Dimensions (WxDxH) 146 x 102 x 26 mm
Weight 185 g
Mounting Multiple mounting holes for universal camera connection

Supplied Breakaway 50cm DC Cable with LPE6 dummy housing
High Quality Aluminium V-lock release
3 x D-Tap DC Power Output
Multiple Mounting holes for universal camera connection
Build-in USB 5V / 2.1A Power Out Socket
