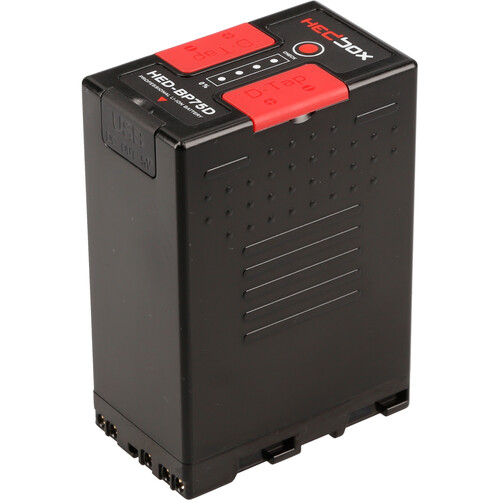

Hedbox BP75D 5200mAh Pro Battery Pack – Sony

Overview
This high-capacity, lithium-ion battery pack is perfect for powering Sony HD camcorders like the PMW-EX1, PMW-EX1R, PMW-EX3, PMW-100, PMW-150, PMW-200, PMW-300, PMW-F3, PXW-X160, PXW-X180, and PXW-X200, including the latest model PXW-FS7. It can also be used with any other units that accept the BPU style battery. The HED-BP75D features an external USB 5V/5W/1A power output and a Dual D-Tap DC 14.4V power output that can deliver 100W/7A for external devices.

The HED-BP75D battery pack also includes a built-in Dual D-Tap 14.4V, 8A 75W output socket, allowing you to connect two different products and power them simultaneously. The battery pack also has a built-in 4-LED power meter for easy monitoring and a USB 5V/1A socket for charging electronic devices. With its data communication chip, the battery can sync with the camcorder to display the exact power percentage on the LCD screen. Designed for professional filmmakers and camera operators, this battery pack provides up to 75Wh / 5200mAh of power and offers long run times in a lightweight form.

Summary
Battery Capacity: 74.9Wh
Battery Capacity: 50-98Wh
Battery Indicator: Yes
Battery Mount / Type: Sony BP-U
Battery Technology: Li-ion
Voltage: 14.4v
Included in box
1 x HED-BP75D Battery Pack
1 x User Manual
1 x 2 Year Limited Manufacturer’s Warranty

About the Hedbox BP75D 5200mAh Pro Battery Pack – Sony
Hedbox BP75D Professional Battery Pack provides up to 75Wh / 5200mAh for SONY PXW and PMW cameras using BP U-Series batteries.

Designed for professional filmmakers and camera operators the BP95D provides long run times (approximately 5.5hrs) in a light-weight form while offering external power outputs through a USB 5V/1A socket and Dual D-Tap sockets capable of delivering 14.4V 75W/8A to all professional external devices such as monitor/recorders and light panels.

Model HED-BP75D Info-Lithium Battery Pack with 4-LED Power Monitor
Mount Method Sony BP-U Stile
Product Colour Dark Grey / Black Color
Bat. Cell Model Samsung SDI AA High Quality 18650 x 8 / 2600mAh
Bat. Cell Chemistry Lithium-Ion
Output Voltage 14.4V DC
Capacity 5200 mAh / 74.88Wh
Maximum Load 8A / 115W
USB Output 5V, 5W / 1A max ( Dust Protection Cover BLACK Color)
D-Tap Output 1 14.4V, 100W / 7A max ( Dust Protection Cover RED Color)
D-Tap Output 2 14.4V, 100W / 7A max ( Dust Protection Cover RED Color)
Operating Temperature –20°C to +45°C (–4°F to +113°F)
Power Meter 4-level BLUE Color LED Power indicator
Data Comm. Built-in Microprocessor for Data Communication with Sony PMW and PXW Camcorders
Dimensions (WxHxD) 90 × 70 x 40 mm
Weight 435 g
Charging Mode For best charging performances and maximum charging capacity use HEDBOX RP-DC50 Digital Charger with RP-DBPU Battery Plate

High Power Capacity 75Wh

This high-capacity, lithium-ion battery pack can power any Sony HD camcorders like the PMW-EX1, PMW-EX1R, PMW-EX3, PMW-100, PMW-150, PMW-200, PMW-300, PMW-F3, PXW-X160, PXW-X180, PXW-X200, including the latest model PXW-FS7 and any other units that accept the BPU style battery. The HED-BP75D includes an external USB 5V/5W/1A power output, and a Dual D-Tap DC 14.4V power output that can deliver 100W/7A for all professional external devices.

Bulit-in Dual D-Tap 14.4V, 8A 75W Output Socket

Dual D-tap DC output socket is equipped on the top of HED-BP75D battery pack. With this external power supply facility you can connect two different products, like an on-camera LED light and video monitor or a wireless transmitter and digital recorder, and get simultaneous power with the battery attached to the camera, or separately as an independent power station. The opposite orientation of the D-Tap connectors provides more flexibility during every day operation. The max power from the two D-taps is 75W.

LED Monitor Indicator

HED-BP75D contains a built in 4-LED power meter that, at the press of a button, displays the remaining battery percentage at 100%, 75%, 50%, or 25%.

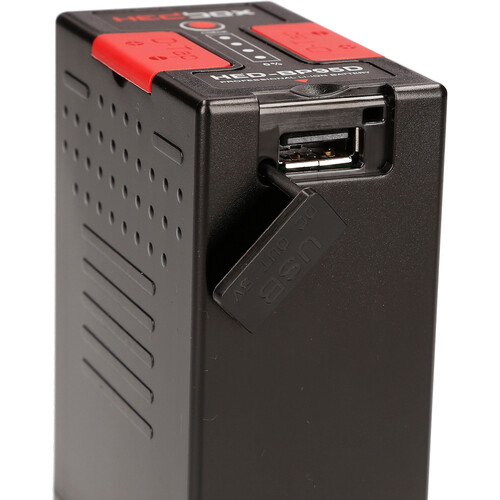

Built-in USB 5V, 1A Socket

The USB 5V/1A output can be used to power any external USB electronic devices. This function allows you to use the HED-BP75D like a power station to charge your cell phone, tablet, or any other electronic devices that can be powered with USB 5V power.

Data Communication with Camcorder

Using the built in data communication chip, the battery syncs with the camcorder to display the exact power percentage on the LCD screen.
