Hawk-Woods VL-AS1 V-Lok Fitting

About The Hawk-Woods VL-AS1 V-Lok Fitting
Due to the excessive power demand required to power Atomos monitors for a lengthy period of time Hawk-Woods have been asked to develop a V-Lok fitting for the Shogun Flame and Inferno.

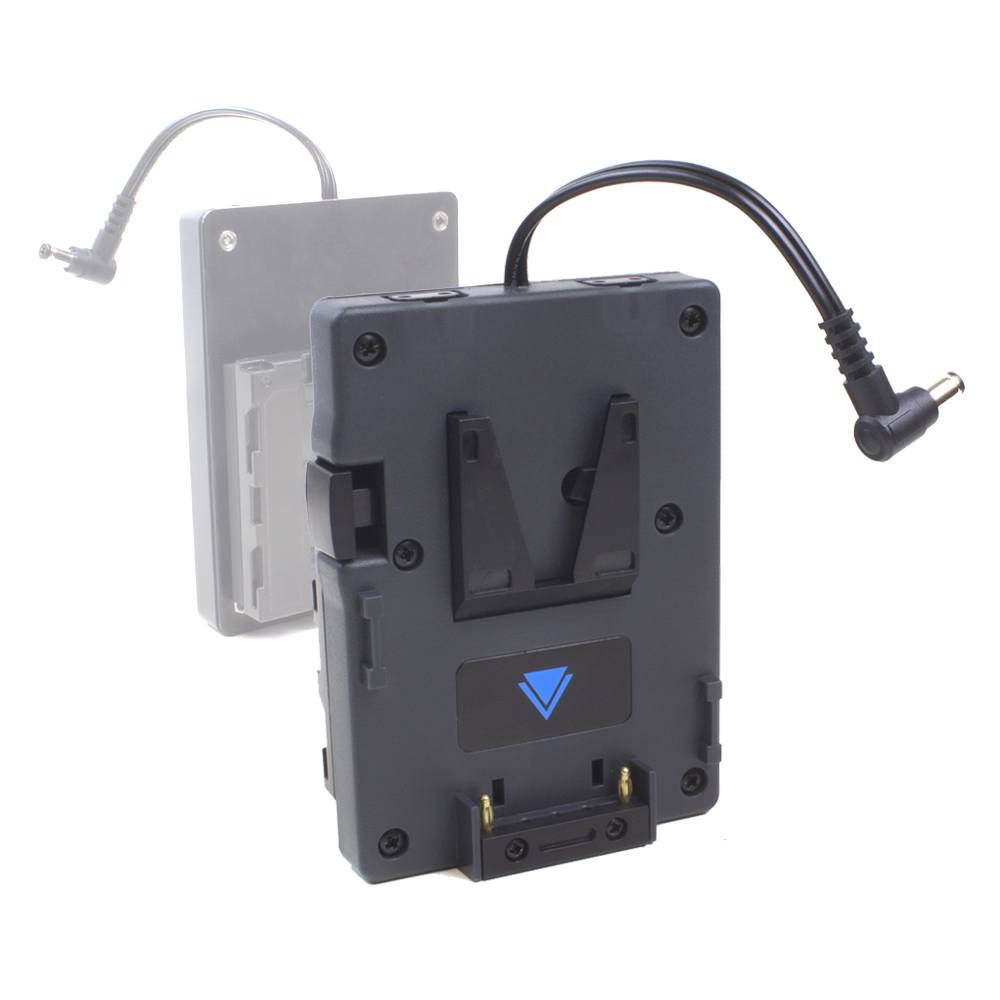

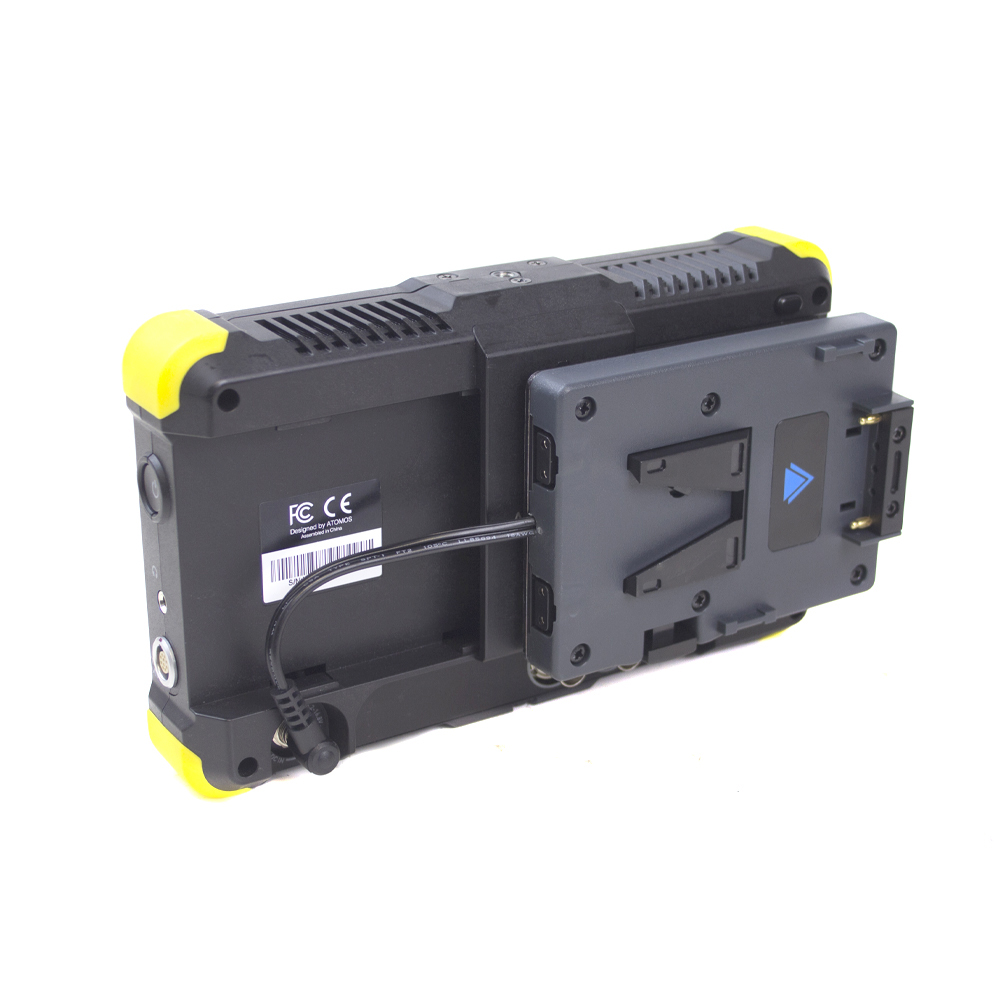

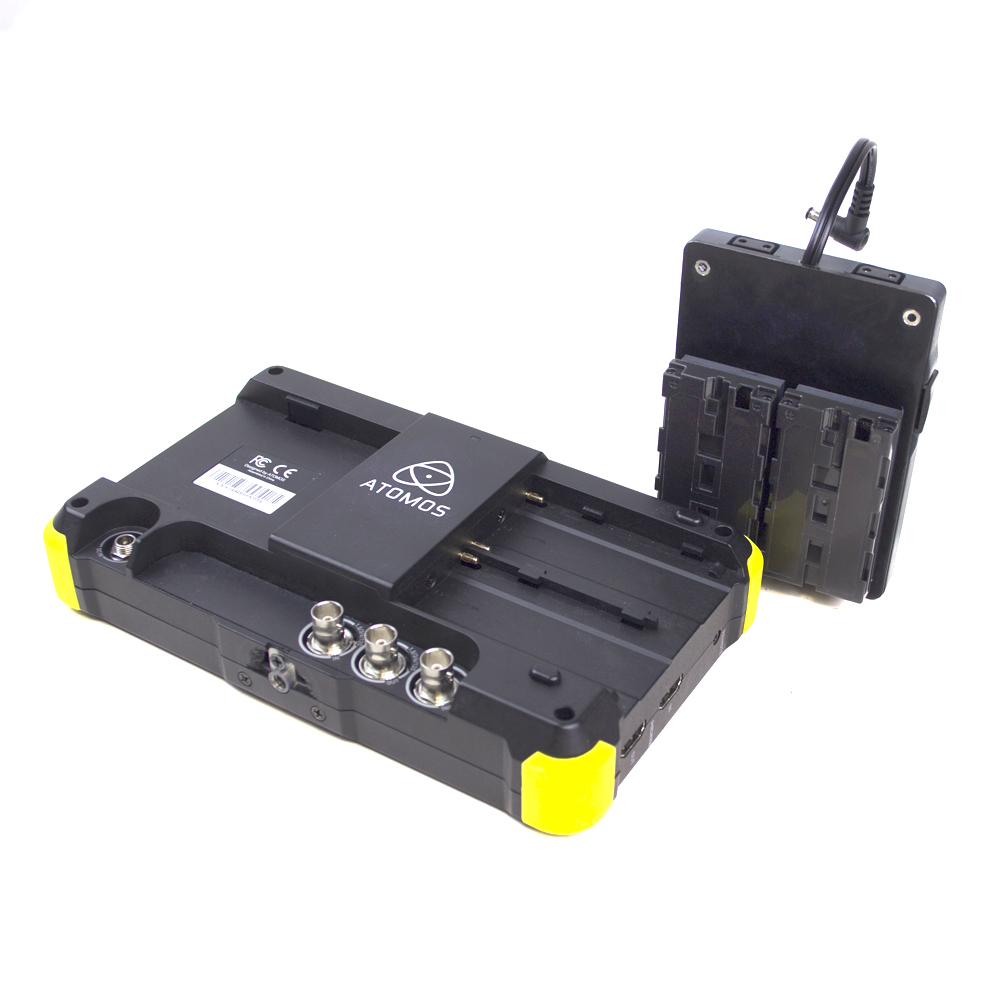

This adaptor allows the use of V-lok batteries to power the monitor, using a dual dummy MDV fitting on the rear of the adaptor plate the VL-AS1 fits into the monitors original battery compartment but has been improved to make the battery weight more central. Also included on the VL-AS1 fitting are 2x Power-con outputs which are ideal for powering Transmitters/Receivers or further accessories which require power. Access to the Hard drive slot and the SDI inputs/outputs are not obscured.

Using V-Lok’s will give you an extended run-time compared to the MDV batteries which only normally provide 35 – 45 minutes.

Size (HxWxD-Cm)
12 x 8 x 4
Weight
211g
Output Types
Output 2.1mm DC Jack
Compatible with
Atomos Flame
Atomos Inferno

V-lok Compatible
Extended Run-Time
2x Power-Con Outputs
For Atomos Flame and Infenro
