Freefly MoVI Pro SL4 Battery Kit

Overview
The SL4-Ground Battery Kit includes 2 smart batteries with a USB type C port onboard, capable of supplying up to 60 watts for powering devices like phones and laptops. These batteries have a screen for viewing various specs and utilize safer Lithium-Ion cells. They can also be integrated into other electronics with the provided CAD and API.

The kit also includes Mōvi Pro to SL Adapters, which can be easily installed onto the original battery plates and provide raw battery voltage for accessories. The SL Battery Charger uses USB PD for both input and output, with a charging time of approximately one hour per pack. A firmware update is available for increased accuracy of state of charge reporting. In Freefly’s testing, a single set of batteries can power the Mōvi Pro for up to 5.75 hours.

Summary
Battery Mount / Type: Freefly
Charging Ports: 2

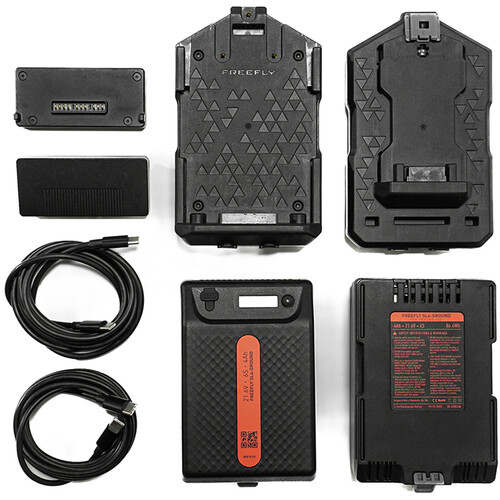

Included in box
2 x SL4-Ground Battery
2 x Mōvi Pro to SL Battery Plate Adapter
2 x SL Battery Charger (USB C)
2 x USB C to C Cable (2m/6.5ft)

About the Freefly MoVI Pro SL4 Battery Kit
The Mōvi Pro SL4 Battery Kit includes everything you need to convert your Mōvi Pro to the robust SL4 power system.

Runtime on Mōvi Pro

In Freefly’s testing, a single set of SL4-Ground batteries will run the Mōvi Pro for the following times:

2.25 hrs – RED Helium Epic, 6k 13:1, 2 focus motors, wireless video, with continuous handheld use
2.25 hrs – RED Helium Epic, 8k 6:1, 2 focus motors, wireless video, with continuous handheld use
2 hrs – RED Helium Epic, 6k 13:1, 2 focus motors, wireless video, system test mode (non-stop motion on all three axis, driven by testing software on a testing stand)
5.75 hrs – Sony Alpha 7R IV 4k, 1 focus motor, wireless video, system test mode (non-stop motion on all three axis, driven by testing software on a testing stand)

SL4-Ground Battery
Nominal Voltage 21.6 V
Min Voltage 18 V
Max Voltage 25.2 V
Capacity 4.1 Ah
Capacity 86.4 Wh
Ambient Operating Temperature -20 C to 50 C
Battery Cell Temperature 10 C to 50 C
Charging Temperature 0 C to 50 C
Weather Moderate rain (~3 mm/minute)
Drop Rating 1 meter
USB Power Delivery 60W (up to 3A at 5V, 9V, 12V, 15V or 20V)
Cell Chemistry Lithium-Ion
Cell Type Lishen LR2170SF
Max Current 20 A
Continuous Current 13.5 A
Weight 600g
Mōvi Pro to SL Battery Adapter Adapts Mōvi Pro to SuperLight Battery plate
Tool-less Quick Release
Two 4pin Molex connectors for raw battery voltage (18-25.2v)
Compatible with SL4 (SL8 with optional extender, coming soon)
SL Battery Charger (USB C) Input: USB type C
Input Range: USB Power Delivery (PD) 9V, 12V, 15V, 20V up to 100W
Compatible with SL4 & SL8
Weight: 65g

SL4-Ground Battery (2 batteries)
The batteries have a USB type C port onboard supplying up to 60 watts for powering devices such as a phone or laptop.
These smart batteries have a screen for viewing a range of specs from voltage, and power output to lifetime charge cycles, and much more.*
SL batteries utilize Lithium-Ion cells for more reliable performance and safer handling than LiPo battery cells.
These batteries are not only for the Mōvi Pro and Mōvi Carbon! We have published CAD and made an API available for anyone to integrate this into their electronics.

Mōvi Pro to SL Adapters (1 pair)
These adapters install onto the original Mōvi Pro battery plates without tools and feature a pair of 4pin Molex connectors for raw battery voltage for your accessories.**

SL Battery Charger
The charger uses USB PD for both input for charging, and output to charge your laptop for additional functionality on the job.
Charging time for one pack is roughly one hour with a 100w USB C power brick***.

*The state of charge (SOC) indicator on the battery is always the most accurate, but there is a firmware update available for Mōvi Pro & Carbon (through the Mōvi Pro app), that allows you to select your battery type for increased accuracy of state of charge reporting on the back of the Mōvi. For more information about this, click here.
**Please ensure that the devices you are powering from these ports can handle 6s voltage (18v-25.2v) or use a regulator to step down to the desired voltage. With the batteries directly powering these ports, you will lose power to any attached accessories during a battery hot-swap.
***USB C power brick not included.

Mechanical

Innovative Structure

A redesigned structure improves performance and adds capabilities to increase the MoVI Pro’s usability, convenience, strength, & adaptability.

Embedded Display

The addition of an embedded display with a 4-button control system gives users command over basic tuning and adjustments on the fly without the need for additional devices.

Increased Torque

New custom lightweight direct-drive brushless motors provide twice the pan torque of first generation MoVI’s for the most demanding camera movement scenarios.

Internal Wiring

Updated wiring is now strain relieved and internally routed, preventing potential damage to cables and enhancing reliability in a variety of weather conditions.

Aerial-Ready

Go from handheld to aerial in less than 60 seconds; with dual GPS antennas, lightweight construction, high torque motors, and an integrated FIZ driver, the MoVI PRO is unmatched in aerial performance.

Versatile Camera Rail

The addition of dovetails, revised camera mounts, easier top mounting, and a wide-body design results in an ultra versatile lightweight camera rail that can easily be mounted and removed.

Rugged System

Designed as a precision instrument with the toughness to withstand every environment from the set to the outdoors, including water resistance.

Power

Intelligent Batteries

Brand new MōVI Pro Battery Packs come with built in power indicators, intelligent battery management systems, and a refined new design.

Hot Swapping

One handed battery swaps and hot swapping are now possible through a redesigned battery system which is built to keep the MoVI Pro shooting continuously.

Camera and Accessory Power

Using the combined power of two 22.2V batteries; the MōVI Pro can power itself, the camera, and more for over an hour before swapping.

Control

Self-Tuning ​

Refined new software allows the MoVI Pro to find optimal stiffness and filter settings on a button push, within seconds. While the system can be further tuned manually, the new self-tuning algorithm makes the tuning process much more automated and accurate from thestart.

REDLink Command Protocol

Integrated REDLink Command Protocol grants users full control over RED EPIC and SCARLET camera adjustments, even when the user is hundreds of feet away from the mounted camera.

FIZ Control

Utilising the world’s smallest fully integrated 3-axis FIZ controller, the MoVI Pro reduces shooting weight and FIZ setup time with all industry standard motors
