Overview
The Ultrasonic Base Sensor UBS-100 is a compact and versatile device that combines all on-camera systems into one unit. It offers a wide field of view and a maximum range of 35 feet in RANGER mode and up to 120 feet in BUG and HANDSET modes. With adjustable sensitivity and advanced features like LIMITS and LOCKOUT, unwanted targets and reflections can be easily eliminated. The UBS-100 also allows for synchronization with other CINE RT systems and has compatibility with various devices. It features a Class 3R laser for targeting and a self-regulating thermostat for accurate distance calibration.

The Handset Control Unit HCU-100 allows for remote control of the CINE RT system through a robust RF link with a range of 800 feet. It also has advanced features like LIMITS and LOCKOUT and a SONIC ANALYZER for real-time display of room reflections. The HCU-100 can monitor two targets simultaneously and has an integrated ultrasonic tape measure. With features like MARKS VIEW and FOCUS WHISPER, it offers convenient mark collection and manipulation. The CINE RT system also includes the Bug Miniature Ultrasonic Transmitter, which is lightweight and easily concealable. The system is completed with the High-Bright LED Display, which offers a bright and clear readout, adjustable brightness levels, and long-range RF communication with the CINE RT BASE.

Included in box
1 x Ultrasonic Base Sensor UBS-100
1 x Handset Control Unit HSU-100
1 x High-Bright LED Display HBD-100
1 x Bug Miniature Ultrasonic Transmitter BUG-100
1 x AC Wall Charging Unit
1 x USB Charging Cable
3 x Cine RT Mounting Blocks
1 x spare antennae and 4 spare mounting block screws
1 x Pelican 1200 Case

About the FocusBug Cine RT System Package Inc UBS-100

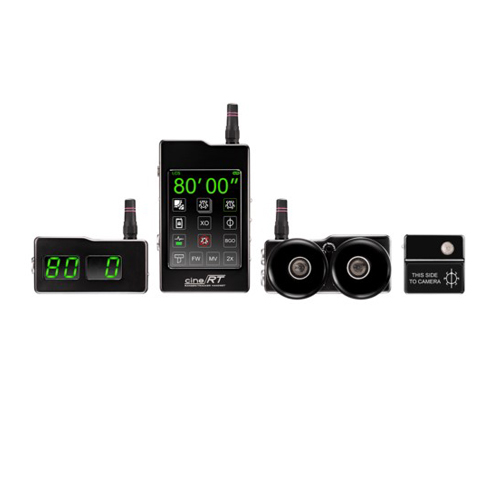

The CINE RT SYSTEM PACKAGE is comprised of four main components housed in CNC machined aluminium, Delrin and ABS with industry standard connectors, spherical actuator buttons and low profile mounting hardware. All components communicate on user selectable 2.4 GHz low power RF bands for exceptional range of up to 800’ (240m) line of sight, while proprietary protocol settings allow several CINE RT systems to work in close proximity while avoiding crosstalk.

ULTRASONIC BASE SENSOR

The low profile ULTRASONIC BASE SENSOR operates as both a rangefinder and receiver for tracking CINE RT BUG Ultrasonic Transmitters while sending constant distance information to the CINE RT Handset, CINE RT High-Bright LED DIsplay(s), Preston HU3 and Arri WCU-4 Handsets. The BASE mounts easily on the camera via several mounting block options, which enable a variety of industry standard brackets to be used. With it’s control systems, sensor array, RF systems and targeting laser combined into one compact unit, the BASE is designed to minimize camera build weight and clutter.

HANDSET CONTROL UNIT

The HANDSET CONTROL UNIT is a touchscreen hub to access LIVE VIEW display modes, operational tools and user settings. The HANDSET allows all adjustments to be made remotely without needing to be hands-on with the camera. The HANDSET also doubles as a discrete tape measure allowing up to eight marks to be quickly collected, stored and edited without pulling a tape or sighting a laser. Select the FOCUS WHISPER or MARKS VIEW to hear or see your marks in relation to your target’s movements in real time.

HIGH-BRIGHT LED DISPLAY

The compact HIGH-BRIGHT LED DISPLAY relays distance data with 0.55″ (14mm) ultra-bright LED characters. Five levels of brightness ensures exceptional visibility in all lighting conditions. Remotely chain several HIGH-BRIGHT displays to offer multiple readouts of the same source or use two HIGH-BRIGHTS to track two different targets simultaneously while in DUAL VIEW.

ULTRASONIC BUG TRANSMITTER

The miniature ULTRASONIC BUG TRANSMITTER is milled from rugged lightweight ABS, measures 1.6″ x 1.6″ x 0.4″ (4 x 4 x 1 cm) and weighs less than 0.7oz (20g). The BUG can be easily hidden and will transmit ultrasound through most fabrics with no RF emissions. Place them on your assistants, stand-ins or principal actors for fast continuous distance information. Track up to four BUG sources to distances of 120′ (36.5m) line of sight from the BASE.

Ultrasonic Base Sensor UBS-100
Dimensions 9.3 cm x 9.2 cm x 4.0 cm (without antenna) (3.7inch x 3.6inch x 1.6inch)
Weight 170 grams (6 oz)
Power 9 – 30V DC
RF Ultra low power, 2.4 GHz ISM band*
Construction Milled aluminum and Delrin (horns)
Ultrasonic Frequency 40kHz
Ultrasonic Sampling Rate 1 MHz
Rangefinder Range 1 feet – 35+ feet (0.3 – 10.6+m)
Connectors Power-2 pin LEMO (Arri Standard)
Serial 6 pin LEMO
Handset Control Unit HSU-100
Dimensions 10.5 cm x 6.2 cm x 2.5 cm (without antenna) (4.1in x 2.5in x 1in)
Weight 189 grams (6.7 oz)
Power 7 – 20V DC
RF Ultra low power, 2.4 GHz ISM band*
Construction Milled aluminium
Ultrasonic Frequency 40kHz
Handset Tape Range 1 feet- 120 feet(0.3 – 36.5m)
Connectors Power- 2 pin LEMO (Arri Standard)
Audio 1/8in stereo headphone jack
LCD Display Resistive Touch TFT LCD 3.2in (8.1cm)
Bug Miniature Ultrasonic Tx BUG-100
Dimensions 4.0 cm x 4.0 cm x 1.0 cm (1.6in x 1.6in x 0.4)
Weight 19.1 grams (0.7 oz)
Charge Power 5V DC (USB)
RF 2.4 GHz ISM band, receive only*.
Construction Milled ABS thermoplastic
Ultrasonic Frequency 40 kHz
Bug Range (recommended) 1 feet – 120 feet (0.3 – 36.5m)
Connectors USB mini B (charge power)
High-Bright LED Display HBD-100
Dimensions 7.3 cm x 3.8 cm x 2.4 cm (without antenna)
Weight 110 grams
Power 7 – 20V DC
RF 2.4 GHz ISM band, receive only*.
Construction Milled aluminum and acrylic (screen)
Connectors 2 pin LEMO DC power (Arri Standard)

Ultrasonic Base Sensor UBS-100 Features

One-piece design incorporates all on-camera systems into a single compact unit.
An easily adjustable Film Plane Offset function allows for a variety of camera mounting options.
An approximate 14 degree field of view and 35 feet+ (10.6m) maximum range in RANGER mode.
Up to 130 degree angle of view and 120 feet (36.5m) maximum range in BUG & HANDSET modes.
Fully adjustable Sensitivity setting to optimize the Rangefinder for changing target conditions.
Advanced LIMITS and LOCKOUT features that allow quick and easy elimination of unwanted targets & reflections.
Ultrasonic timeslot synchronization allows two CINE RT systems to work in the same physical/acoustic space without crosstalk.
Serial Output to send distance data to Preston HU3, Arri WCU-4 and other compatible devices.
“CINE-TAP” MODE to enable compatibility with existing rangefinder systems.
An internal Class 3R laser for easy orientation and targeting.
Compatibility with up to 4 BUG miniature Ultrasonic Transmitters.
Self regulating thermostat to ensure accurate ultrasonic distance calibration.
Easily interchangeable mounting options and genuine LEMO hardware.

Handset Control Unit HCU-100 Features

Remote control of all CINE RT system functionality via a robust Ultra Low Power 2.4 GHz RF link (up to 800 feet (240m) line-of-sight).
Advanced LIMITS and LOCKOUT features that allow quick and easy elimination of unwanted targets & reflections.
Advanced Digital Signal Processing (DSP) features for increased range and stability.
SONIC ANALYZER tool for real-time ultrasonic room reflection display.
One touch SYNC MODE ultrasonic timeslot synchronization allows two CINE RT systems to work in the same physical/acoustic space without crosstalk.
“CINE-TAP” MODE to enable compatibility with existing rangefinder systems.
Monitor two targets simultaneously in DUAL VIEW.
Integrated Ultrasonic Tape Measure with up to 120 feet (36.5m) range.
Mark collection, storage and manipulation via TAPE MODE and MARKS EDITOR screens.
MARKS VIEW offers real-time graphical monitoring of target movement in relation to stored marks.
Real-time audio “calling” of stored marks with the FOCUS WHISPER tool.
Powered by either a high-capacity internal rechargeable Lithium Polymer battery or external source.
Adjustable screen brightness, high contrast display mode and screen lock.
Interchangeable mounting options and genuine LEMO hardware.

Bug Miniature Ultrasonic Transmitter BUG-100 Features

Ultra lightweight design and small form factor for easy concealment.
Works through most common fabrics and around many common on-set obstacles.
Line of sight operation to BASE unit receiver.
Easily programmable Offset function to compensate for BUG placement (e.g, car mounted BUG).
Fully ultrasonic design with no RF emissions.
Long lasting internal lithium polymer battery (8 – 10 hours in standby).
Remote shutdown and ultrasonic level control via HANDSET.
Up to four BUG transmitters can be active at a time (with two sources simultaneously viewable).
Excellent compatibility with on set audio systems, microphones and wireless lavaliers.

High-Bright LED Display HBD-100 Features

14 mm ultra-bright daylight viewable LED readout.
Five adjustable brightness levels for optimal viewing in all lighting conditions.
Robust long-range RF communications with the CINE RT BASE (up to 800′ (240m) line of sight).
Multiple High-Bright units can be used simultaneously.
Lightweight and durable construction.
Independently selectable Metric/Imperial Units
Flip option for inverted mounting.
Powered by either a long lasting internal rechargeable Lithium Polymer battery or external source.
One touch battery life indicator.
Interchangeable mounting options and genuine LEMO™ hardware.
