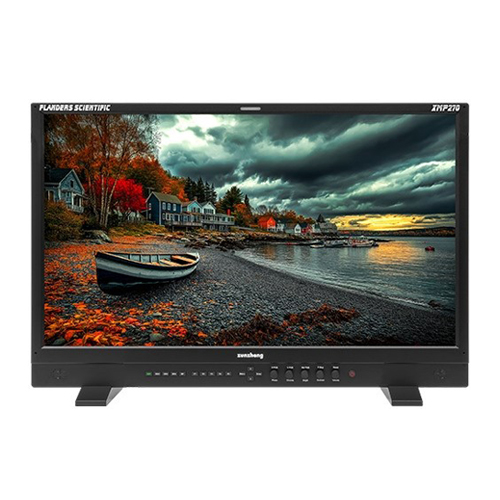

Flanders Scientific XMP270 26.5” UHD QD-OLED HDR

The XMP270 is a 26.5″ UHD resolution HDR and SDR reference monitor built around the same industry leading QD-OLED panel technology as our HPA Award Winning 55″ XMP550. With 1,000nits peak luminance, 1.5Million:1 contrast, and an exceptionally wide color gamut the XMP270 qualifies as a Dolby Vision mastering monitor and is ready to handle your most demanding HDR and SDR monitoring needs.

Panel Specifications
Screen Size 26.5″ Diagonal
Resolution 3840×2160
Bit Depth (Color) 10bit (1.073 Billion Colors)
Contrast Ratio ~1,500,000:1
Panel Type Quantum Dot OLED
Pixel Efficiency 99.999%
Max Luminance ~1000cd/m 2 @ L18
Viewing Angle 179°
Maximum Native Color Gamut
Max Native Color Gamut
Inputs
4 x BNC 12G/6G/3G/HD-SDI

Outputs
4 x BNC 12G/6G/3G/HD-SDI – Clean Loop
4 x BNC 6G/3G/HD-SDI – Processed Loop

Supported SDI Formats
SMPTE-274M
1080i (60/59.94/50)
1080p (30/29.97/25/24/24PsF/23.98/23.98PsF)
SMPTE-296M 720p (60/59.94/50/30/29/25/24/23.98)
2K
2048×1080
(30p/30PsF/29.97p/29.97PsF/25p/25PsF/24p/24PsF/23.98p/23.98PsF)
SMPTE-425M-AB
– Level A & Level B supported
– Level B supports 2 x SMPTE
292M image format mapping
372M image format mapping
– RGB & YCbCr
12 & 10bit 4:2:2 1920x1080p (60/59.94/50)
4:4:4 1280x720p (60/59.94/50/30/29.97/25/24/23.98)
12 & 10bit 4:4:4 1920x1080i (60/59.94/50)
12 & 10bit 4:4:4 1920x1080p (30/29.97/25/24/23.98 + PsF variations)
12 & 10bit 2k (2048×1080)p (30/29.97/25/24/23.98 + PsF variations)
12 & 10bit 2K (2048×1080)p (60/59.94/50/48/47.95)

4K & UHD (ST2081 & ST2082)
Single-Link 12G
Single-Link 6G
Dual-Link 6G
Dual-Link 3G Square Division
Quad-Link 3G Level A Square Division
Quad-Link 3G Level B Square Division
Quad-Link 1.5G Square Division 10 & 8bit 4:2:2 4096x2160p (60/59.94/50/48/47.95/30/29.97/25/24/23.98)
10 & 8bit 4:2:2 3840x2160p (60/59.94/50/48/47.95/30/29.97/25/24/23.98)
12 & 10bit 4:4:4 4096x2160p (30/29.97/25/24/23.98) YCbCr & RGB
12 & 10bit 4:4:4 3840x2160p (30/29.97/25/24/23.98) YCbCr & RGB

Audio
Internal Speakers 2
Audio In (Mini-Jack) 1
Audio Out (Mini-Jack) 1
Features
Removable Desktop Feet Standard
External Mounting Points 100mm VESA
Color Space Selection SMPTE C/EBU/REC709/DCI-P3/Rec2020*/Custom
*covers ~80% of Rec2020 color gamut
Direct Connect Volumetric AutoCal Compatible with CR100, K10A, K80, CA210 & CA310 (10mm), CA410, & i1D3DS OEM
Power
AC Input 100~240 VAC External Power Supply Included
DC Input 3 PIN XLR
Power Requirement 100~240 VAC / 24 VDC
*up to 36VDC Max Supported
Power Consumption 35W – 220W
Physical Characteristics
Weight without feet 14.4 lbs (6.5 Kg)
Weight with feet 15.8 lbs (7.2 Kg)
PSU Weight 2.4 lbs (1.1 Kg)
Chassis Aluminum Frame
Dimensional Drawing PDF
