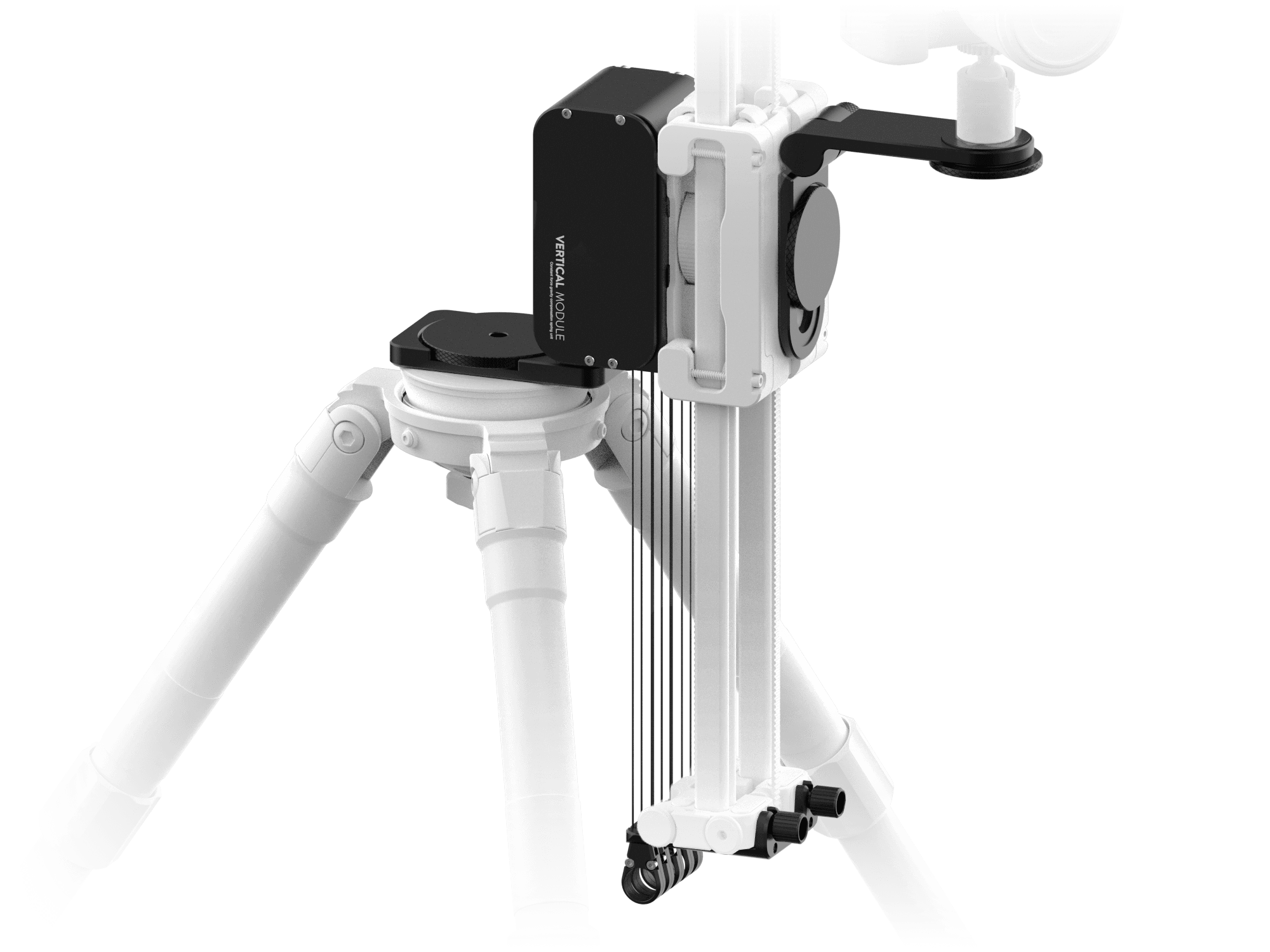

Vertical Module
Spring-powered mechanism that assists in carrying your SliderPLUS PRO setup, allowing the Motor Module to move the SliderPLUS PRO effortlessly at any incline.
All Mechanical
Vertical Module compensates for gravity, keeping the system weightless at any angle with the help of constant force springs. No need for extra batteries!
Heavy Lifter
Despite weighing about just 1 kg, Vertical Module can lift SliderPLUS PRO + Motor Module + HeadPLUS and a camera even at absolute vertical motion.
NOTE: The range of motion under full load may fall below the full range of motion of the slider, but even under full load, you are guaranteed to get at least 60 cm of vertical movement.
Fast & Simple Setup
Attaches Under SliderPLUS PRO Models – Vertical Module is designed to be compatible with SliderPLUS PRO models as well as SliderPLUS models equipped with the PRO Fit Module.
Easily Counterbalance Your Equipment – The module offers 5 levels of spring tension to accommodate different equipment weight, easily adjustable by attaching the necessary number of rings to SliderPLUS’s side (Side piece included with Vertical Module).
Adjust Slide Angle with the Turn of a Knob – Vertical Module utilizes an axis knob that allows for quick angle adjustments on the go.
Carrying Capacity:
Our system includes 5 springs, each with a maximum tension of 2.5 kg, providing a total carrying capacity of 12.5 kg.
To determine the camera carrying capacity, simply subtract the combined weight of your SliderPLUS PRO, Motor Module, and any additional accessories from the maximum carrying capacity of 12.5 kg.
Connection Ports:
Spring Box Unit has 3/8” port underneath. 3/8 screw on top.
L Bracket has 3/8” Port underneath and 1/4” screw on top.
Incline Limits:
Incline can be adjusted every 10 degree steps. Both spring box and L bracket.
Spring Box Unit max Incline 90 degrees.
Quantity of Springs:
5 Tension Springs
Spring Strength:
2.4-3 kg each. (Depending on the amount of tension applied.)
Dimensions:
Spring Box Unit: 140 x 80 x 85mm
L Bracket: 65 x 28 x 135mm
Side Port: 80 x 75 x 8mm
Weight:
Spring Box Unit: 1359g
L Bracket: 358g
Side Port: 127g
Spring Box Unit
L Bracket
Side Panel (with 2x attachment screws)
Motor Module manual engagement knob
Motor Module tension adjustment screw
