Ideal for a range of applications including live concert, theatre, opera, broadcast studio, news gathering, field production, and sound recording, the DWR-S02DN offers a truly digital wireless microphone platform. It combines advanced digital technologies, analogue microphone expertise, wireless audio transmission technologies, and an enviable reputation for stability.
- x2 Antenna
- x1 CD-ROM
- x1 Frequency band label

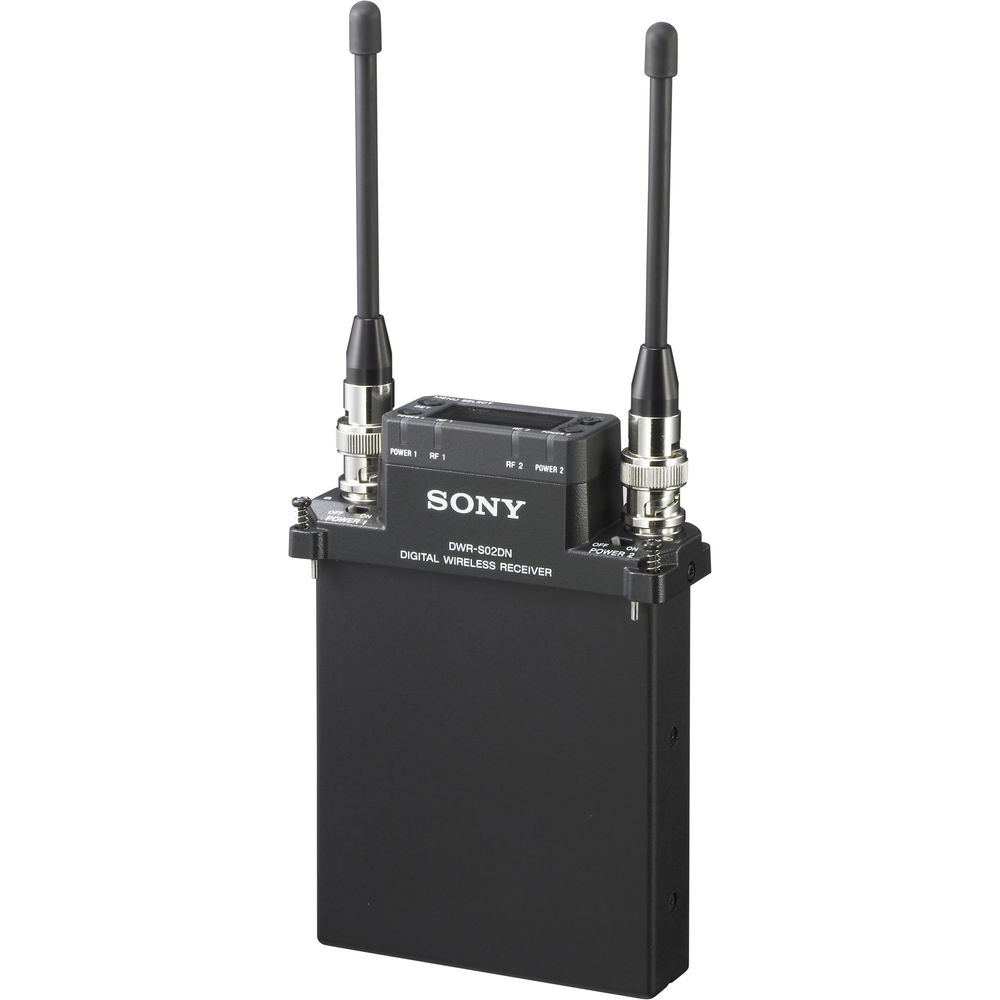

About The DWR-S02DN/33 Wireless Receiver
The DWR-S02DN is a two-channel portable slot-in receiver for Sony camcorders that, as part of the DWX N series digital wireless microphone system, works seamlessly with Sony digital wireless transmitters, such as the DWT-B01N, DWT-P01N and digital wireless microphones, such as the DWM-02N. The receiver operates with a wide bandwidth up to 72 MHz bandwidth (depending on region), giving users a higher probability of finding unoccupied frequencies in congested metropolitan areas.Ideal for a range of applications including live concert, theatre, opera, broadcast studio, news gathering, field production, and sound recording, the DWR-S02DN offers a truly digital wireless microphone platform. It combines advanced digital technologies, analogue microphone expertise, wireless audio transmission technologies, and an enviable reputation for stability.
Compatible with all DWX Series transmitters and microphones
Part of the DWX N series digital wireless microphone system, the DWR-S02DN works seamlessly Sony’s digital wireless transmitters, such as the DWT-B01N, DWT-P01N and digital wireless microphones, such as the DWM-02N.
Transmits high quality digital audio
The digital wireless microphone system transmits and receives high-quality 24-bit/48-kHz digital audio in a specific frequency bandwidth. Using Sony’s original WiDIF-HP codec, the system delivers a wide dynamic range of more than 106 dB, a wide frequency response of 20 Hz to 22 kHz, and an excellent transient response.
Secure and stable wireless transmission
The DWX N series enables highly stable wireless transmission that is extremely tolerant to unwanted interference. In addition, the system transmits and receives digitally modulated and encrypted data to minimise the risk of interception, providing highly secure transmission and reception.
Remote control of transmitter functions from the receiver
Input attenuation, RF frequency selection, RF power output, Audio Low-pass cut-off frequency and transmitter Sleep Mode can all be controlled remotely from the digital wireless receiver.
Pre-programmed wireless channel plans for simultaneous multi-channel operation
The DWR-S02DN has many pre-programmed channel groups, meaning combination of wireless channels to permit simultaneous operation of multiple channels without intermodulation.
Two-channel slot-in wireless receiver
Despite its dual-channel receiver capability, the DWR-S02DN is small enough to be mounted directly in the slot of the Sony camcorder.
Rear mounting to camcorders
The DWR-S02DN can be rear-mounted to arrange of Sony professional camcorders – using the DWA-01D adapter. When used with a camcorder that has AES/EBU inputs, full-digital audio recording is also possible.
Auto channel scanning function
The DWR-S02DN comes with two auto channel scanning functions that allows for fast, easy and safe frequency channel changes.
Compact, lightweight, and rugged design
The DWR-S02DN is highly compact and light weight, maintaining a good balance even when mounted on a camcorder. In addition, it is made of magnesium die-cast and aluminium, making it extremely rugged and suitable for the harsh environment.
Easy-to-see, full dot-matrix OLED (Organic Light-Emitting Diode) display
The quick response of the OLED display enables real-time operating conditions to be displayed clearly and accurately.
