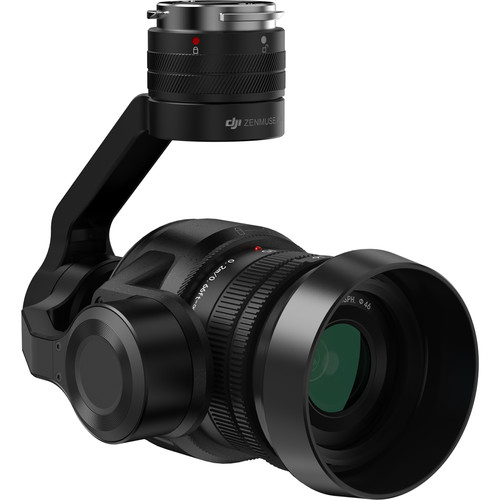

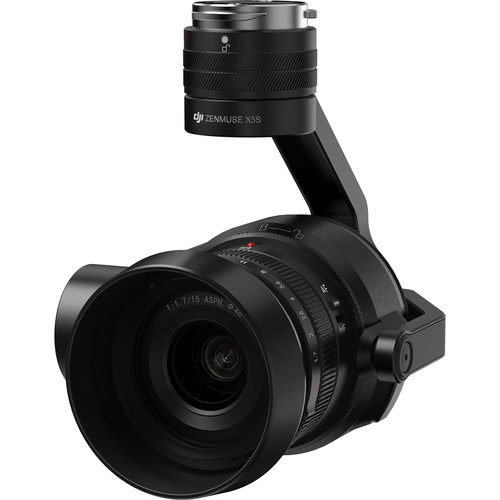

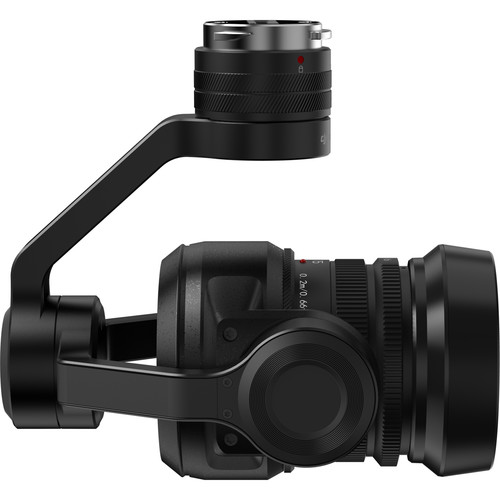

DJI Zenmuse X5S Gimbal Camera

Overview
The Zenmuse X5S is a powerful aerial imaging tool with improved signal-to-noise ratio and support for up to 8 standard MFT lenses. Its CineCore 2.0 image processing system allows for high-quality video and still image capture, with options such as 5.2K 30fps and 4K 60fps. The Micro Four Thirds sensor and detachable camera system provide flexibility and protection from magnetic interference. With 12.8 stops of dynamic range and a range of lightweight lenses, the X5S is designed for professional use.

The Zenmuse X5S offers advanced features such as 3-axis gimbal stabilization, direct camera control through the DJI GO app, and compatibility with the DJI Focus system. It also has the ability to capture 20.8MP still images at 14fps or 20fps with the DJI CINESSD. With its innovative design and high-end capabilities, the Zenmuse X5S is a reliable and versatile choice for aerial imaging professionals.

Summary
Weight: 0-2kg
Included in box
1x Gimbal and Camera
1x Camera Body Cap*
1x Lens Rear Cap*

*The Camera Body Cap and Lens Rear Cap are attached. Rotate to release them.

About the DJI Zenmuse X5S Gimbal Camera
Equipped with an uprated Micro 4/3 sensor, the Zenmuse X5S has a dynamic range of 12.8 stops with a much improved signal to noise ratio and colour sensitivity than the X5R. It supports up to eight standard M4/3 lenses (including zoom lenses) with focal lengths ranging from 9mm-45mm (equivalent to 18mm-90mm on a 35mm camera), allowing more creative flexibility. The new CineCore 2.0 image processing system on the Inspire 2 makes the Zenmuse X5S capable of capturing 5.2K 30fps CinemaDNG video and Apple ProRes video as well as 4K 60fps using H.264 and 4K 30fps using H.265 (both at 100Mbps). Continuous DNG burst shooting at 20fps with 20.8MP images is also supported. The Zenmuse X5S was designed to keep pace with the rigors of high-end professional aerial imaging.

Compared with the Inspire 1, the Inspire 2 utilizes an innovative structure that separates the CineCore 2.0 image processing system from the camera and places it inside the aircraft. This means that the sensor and optical system are detachable and easily connected using a newly designed quick-release connector. Designing the camera system in this way effectively protects the sensor from magnetic interference originating from the processor. It also allows a range of lightweight camera units to be connected as required by different scenes. The updated M4/3 sensor — and support for interchangeable lenses — allows the Zenmuse X5S to capture high resolution images of incredibly high quality, when combined with the extraordinary CineCore 2.0 image processing system.

The onboard Micro 4/3 sensor has been upgraded, significantly improving image quality. With a pixel size of 3.4μm, this 20.8-megapixel sensor captures more detail than the previous sensor. It has 12.8 stops of dynamic range as well as a better signal to noise ratio and colour sensitivity than the X5R, allowing it to create clear, low noise images in low light environments.

Since it uses a standard Micro 4/3 mount, the Zenmuse X5S now supports up to eight professional lenses* with focal lengths ranging from 9mm-45mm (equivalent to 18mm-90mm on a 35mm camera), providing more creative control over the final look of a shot.

Using CineCore 2.0, the Zenmuse X5S records video at a maximum resolution of 5.2K/30fps in CinemaDNG 12bit1, 5.2K 30fps Apple ProRes 422 HQ and 4K 30fps Apple ProRes 4444 XQ (no alpha)2. Additional recording options include video in 4K/60fps using H.264 or oversampling video in 4K/30fps using H.264/H.265, both with a bitrate of 100Mbps.

The DJI CINESSD card (PCIe3.0 NVMe SSD support) and a highly optimized FAT32/exFAT file system, allows Zenmuse X5S footage to be transferred directly through the DJI CINESSD STATION card reader to a computer at high speeds without any additional software. Footage also supports the DIT standard. CinemaDNG or Apple ProRes workflows can be used for post-processing.

Using only the Micro SD card, 20.8MP stills can be captured at 14fps in Burst Mode in JPEG+DNG. Using the DJI CINESSD opens up 20fps continuous DNG Burst Mode with a maximum image resolution of 20.8 megapixels. Stills can also be taken during video recording without interruption.

Stabilizing the Zenmuse X5S is a highly optimized 3-axis gimbal with pinpoint-precise motor rotation with a control accuracy of ±0.01° powered by a dedicated processor.

Rather than rely on electrical slip rings — as is common with many gimbals — the Zenmuse X5S uses a unique mechanically limited design and concealed wires to ensure more stable data transmission and greater durability. Vibration is eliminated using three damping balls and a lightweight damping board, creating seamlessly smooth video. 360° rotation remains possible through gimbal rotation and smooth aircraft yaw. Stable, smooth footage1 can be captured even when using a 90mm2 lens.

Take control over every camera setting from afar, including focus, aperture, and format, directly in the DJI GO app. Precision control also extends to focus, with DJI GO and the optional DJI Focus, offering focus control across the entire transmission range. Using DJI Focus, no additional cables or motors are needed and new Lightbridge technology sends all signals as far as 4.3mi (7km) away*.

GENERAL
Name Zenmuse X5S
Dimensions 140×98×132 mm
Weight 461 g
CAMERA
Supported Lens DJI MFT 15mm/1.7 ASPH (With Balancing Ring and Lens Hood)
Panasonic Lumix 15mm/1.7 (With Balancing Ring and Lens Hood)
Panasonic Lumix 14-42mm/3.5-5.6 HD
Olympus M.Zuiko 12mm/2.0 (With Balancing Ring)
Olympus M.Zuiko 17mm/1.8 (With Balancing Ring)
Olympus M.Zuiko 25mm/1.8
Olympus M.Zuiko 45mm/1.8
Olympus M.Zuiko 9-18mm/4.0-5.6
Sensor CMOS, 4/3”
Effective Pixels: 20.8MP
FOV 72° (with DJI MFT 15mm/1.7 ASPH )
Photo Resolutions 4:3, 5280×3956
16:9, 5280×2970
Video Resolutions CinemaDNG
5.2K: 5280×2970
23.976/24/25/29.97p,12-bit,up to 4.2Gbps
5.2K: 5280×2160
23.976/24/25/29.97p,12-bit
4K: 4096×2160,3840×2160
23.976/24/25/29.97/47.95p,12-bit,up to 3.6Gbps
4K: 4096×2160,3840×2160
50/59.94p,10-bit
ProRes
5.2K: 5280×2160
23.976/24/25/29.97p,10-bit,422HQ@1.8Gbps
4K: 3840×2160
23.976/24/25/29.97p,10-bit,422HQ@1.3Gbps
4K: 3840×2160
23.976/24/25/29.97p,10-bit,444HQ@2.1Gbps
H.264
C4K:4096×2160
23.976/24/25/29.97/47.95/50/59.94p @100Mbps
4K: 3840×2160
23.976/24/25/29.97/47.95/50/59.94p @100Mbps
2.7K: 2720×1530
23.976/24/25/29.97p @80Mbps 47.95/50/59.94p @100Mbps
FHD: 1920×1080
23.976/24/25/29.97p @60Mbps 47.95/50/59.94p @80Mbps 119.88p @100Mbps
H.265
C4K: 4096×2160
23.976/24/25/29.97p @100Mbps
4K: 3840×2160
23.976/24/25/29.97p @100Mbps
2.7K: 2720×1530
23.976/24/25/29.97p @65Mbps 47.95/50/59.94p @80Mbps
FHD: 1920×1080
23.976/24/25/29.97p @50Mbps 47.95/50/59.94p @65Mbps 119.88p @100Mbps
Photo Formats DNG，JPEG，DNG+JEPG
Video Formats RAW，ProRes，MOV，MP4
Operation Modes Capture, Record, Playback
Still Photography Modes Micro SD: Single shot, Burst Shooting:
3/5/7/10/14 frames, Auto Exposure Bracketing, 3/5 bracketed frames at 0.7EV bias, Timelapse
SSD: RAW Burst Shooting:
3/5/7/10/14/20/∞ frames
Exposure Mode Auto, Manual, Shutter, Aperture
Exposure Compensation ±3.0 (1/3 increments)
Metering Mode Center-weighted metering,
Spot metering (area option 12×8)
AE Lock Supported
Electronic Shutter Speed 8-1/8000s
White Balance Auto, Sunny, Cloudy, Incandescent,
Neon Custom (2000K–10000K)
ISO Range 100 – 6400 (Video)
100 – 25600 (Stills)
Video Captions Supported
Anti-Flicker Auto, 50Hz, 60Hz
PAL/NTSC Supported
GIMBAL
Angular Vibration Range ±0.01°
Mount Detachable
Controllable Range Tilt: +30°to -90°, Pan: ±320°
Mechanical Range Tilt: +50°to -140°, Pan: ±330°, Roll: +90° to +30°
Max Controllable Speed Tilt: 90°/s, Pan: 90°/s
ENVIRONMENTAL
Operating Temperature 14°–104°F (-10 to 40℃)
Storage Temperature -4°–140°F (-20 to 60℃)

Improved Signal-to-Noise Ratio
Supports up to 8 Standard MFT Lenses (Including Zoom Lenses)
CineCore 2.0 Image Processing System
5.2K 30FPS
4K 60FPS
20.8MP Still Image
12.8 Stops of Dynamic Range
Micro Four Thirds Sensor
