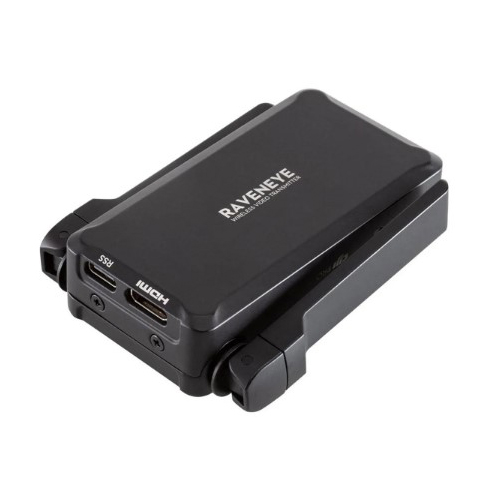

DJI Ronin Image Transmitter

Overview
The DJI Ronin RavenEye Image Transmission System is a revolutionary technology that allows for a live camera view and enables ActiveTrack 3.0 on DJI RS 2 and DJI RSC 2. This means that users can now see exactly what their camera is capturing in real-time through the Ronin app.

RavenEye is compatible with various DJI products, including Ronin-S, Ronin-SC, DJI RS 2, and DJI RSC 2. It mounts onto the gimbal and connects to the camera through an HDMI cable. By connecting to the smartphone via Wi-Fi, users can remotely control the gimbal, monitor the footage, and use ActiveTrack 3.0. For a list of supported camera models and functions, please visit the Ronin Series Compatibility Search on dji.com. It is important to note that Ronin-S and Ronin-SC do not currently support remote gimbal control or the use of ActiveTrack 3.0 through RavenEye.

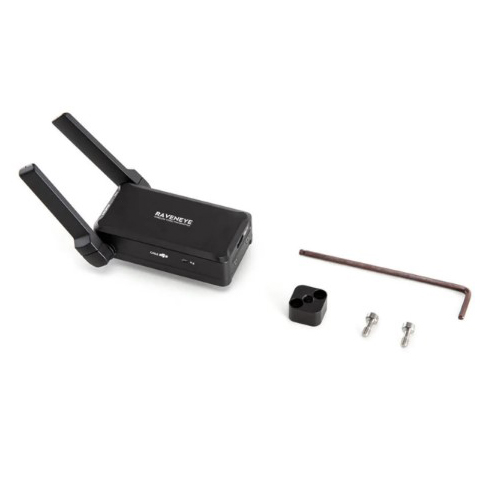

Included in box
1x Image Transmitter
1x Cold Shoe to 1/4”-20 Adapter
1x USB-C Charging Cable (40 cm)
1x USB-C Power Cable (20 cm)
1x Mini-HDMI to HDMI Cable (20 cm)
1x Mini-HDMI to Mini-HDMI Cable (20 cm)
1x Mini-HDMI to Micro-HDMI Cable (20 cm)
2x M4 Screw
1x Allen Wrench (3 mm)

About the DJI Ronin Image Transmitter
With the DJI Ronin Image Transmitter, the following functions are supported: ActiveTrack 3.0, Force Mobile, remote gimbal control with virtual joystick, manual focus, gimbal parameter adjustments, camera exposure adjustments, and more. Connect the DJI Ronin Image Transmitter to the camera via HDMI cable and to the smartphone via Wi-Fi to check the live camera view on the Ronin app. When using the DJI Ronin Image Transmitter with DJI RS 4 Pro/‌‌DJI RS 2/DJI RS 3 Pro, you can also check the live camera view on the built-in screen of the gimbal.

Note: When using the DJI Ronin Image Transmitter with DJI RS 4‌‌/DJI RS 3/DJI RSC 2, live camera view is not supported on the built-in screen of the gimbal. You can check the live camera view on the Ronin app.

Ronin-S and Ronin-SC do not currently allow remote gimbal control or the use of ActiveTrack 3.0 via RavenEye.

Working Frequency 2.400-2.4835 GHz，5.725-5.850 GHz
Weight 126 g
Dimensions 82 mm x 63 mm x 24 mm
Transmission Power (EIRP)
2.400-2.4835 GHz ＜25dBm (FCC)
＜20dBm (CE/SRRC/MIC)
5.725-5.850 GHz ＜25dBm (FCC/SRRC)
＜14dBm(CE)

Allows live camera view
Enables ActiveTrack 3.0 on DJI RS 2 / DJI RSC 2
Transmits the cameras live view directly on to the Ronin app
Compatable with Ronin-S, Ronin-SC, DJI RS 2, DJI RSC 2
