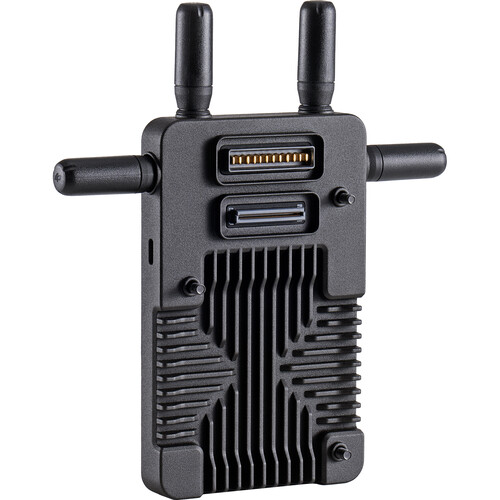

DJI Ronin 4D Video Transmitter

Overview
The Ronin 4D from DJI boasts an impressive 20,000-foot transmission range, allowing for extended use in larger areas. This is made possible by DJIs proprietary chip, which powers both the video transmitter and remote monitor. The integrated design of these components ensures a streamlined wireless transmission system, with optimized links for ultra-low transmission latency.

Thanks to the new DJI O3 Pro Video Transmission technology, the Ronin 4D offers unparalleled transmission capabilities. It not only supports the standard 2.4 GHz and 5.8 GHz frequencies, but also the DFS frequency band and an AES 256-bit encryption algorithm for enhanced security. This allows for a 1080p/60fps FHD feed to be output to multiple remote monitors simultaneously, making the Ronin 4D a top choice for professional videographers. (Note: Requires DJI High-Bright Remote Monitor).

Summary
Accessory Type: Transmitter
Included in box
1x 4D Video Transmitter
4x Ronin Video Transmission Antenna
1x 3mm Ball-End Hex Key
3x M4-20 Hex Cap Screw

About the DJI Ronin 4D Video Transmitter
DJI’s proprietary chip powers the video transmitter and remote monitor of Ronin 4D. Together, these components form a streamlined wireless transmission system, with every link explicitly optimised to provide end-to-end ultra-low transmission latency and an effective transmission range of up to 20,000 feet.

Ronin 4D uses the all-new DJI O3 Pro Video Transmission technology, offering a 20,000-foot transmission range that would be unimaginable on traditional solutions. In addition to 2.4 GHz and 5.8 GHz, it supports the DFS frequency band and an AES 256-bit encryption algorithm that can output a 1080p/60fps FHD feed to multiple remote monitors simultaneously with significantly enhanced security, stability, and anti-interference capability. (Note: Must be used with the DJI High-Bright Remote Monitor).

Dimensions 89×21×137 mm
4D Video Transmitter PortB156 4D Expansion Plate Data Port (male) × 1
SMA Antenna Connector × 4
USB 3.1 Type-C Data Port × 1
Battery Mount Power Port (female) × 1
Battery Mount Power Port (male) × 1

20,000-foot transmission range
Ultra-low transmission latency
Remote control
Integrated design
