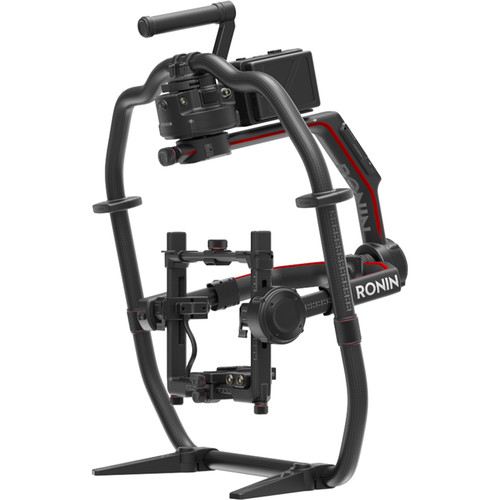

DJI Ronin 2 Gimbal Combo

DJI Ronin 2 is a professional 3-axis handheld gimbal that is highly compatible with cable cams, drones, cranes, Steadicams, and more. Its customisable mounting modes such as handheld, Car Mount, Aerial, and Tripod mode help the Ronin 2 work accurately in different shooting scenerios. Also, it new Pan Lock mode has been specifically designed for work with Steadicam.

The DJI Ronin 2 is the sucessor to the DJI Ronin. It is the prefect camera stabilization to meet all your needs whether they be handheld or mounted on a vehicle, cable system, Steadicam or drone. The DJI Ronin 2 supports upto 30lbs in payload capacity making it easy for you to use a variety of cameras and lens. So if one day you need to use your DSLR and the next your Sony FS7 you’re set to go with this versatile gimbal.

Like Ronin, Ronin 2 was designed for handheld camera applications. Now, Ronin 2 is more versatile with aerial, car-mounting, cablecam, and Steadicam capabilities. It is also compatible with a large number of professional cinema cameras and accessories like sunshades and filters.

Higher-torque motors allow Ronin 2 to support an increased payload of approximately 30 lbs (13.6 kg), while new stabilization algorithms combine data from multiple sensors to perform smoothly in high-stress environments.

For more reliability and convenience, new features include a dual-battery system, built-in screen, adjusting knob, GPS algorithm, camera control system, and power system. These provide Ronin users with unmatched stability, power, and reliability.

The DJI Ronin 2 is the sucessor to the DJI Ronin. It is the prefect camera stabilization to meet all your needs whether they be handheld or mounted on a vehicle, cable system, Steadicam or drone.

The DJI Ronin 2 supports upto 30lbs in payload capacity making it easy for you to use a variety of cameras and lens. So if one day you need to use your DSLR and the next your Sony FS7 you’re set to go with this versatile gimbal.

What are the main differences between Ronin and Ronin 2?

Like the original Ronin, Ronin 2 was designed for handheld camera applications but is now more versatile with aerial, car mounting, cablecam and Steadicam capabilities. Higher torque motors give Ronin 2 a larger payload and new GPS algorithms allow it to perform smoothly in high-stress environments. Along with many other improvements, Ronin 2 brings a whole new level of stabilization to Ronin users.

What is Ronin 2’s maximum payload?

Ronin 2’s maximum payload is approximately 30lbs (13.6kg). Through DJIs own extensive testing, Ronin 2 can handle an Arri Alexa Mini with a Canon CINE-SERVO 17-120mm lens comfortably.

Overall, is stabilization on Ronin 2 higher-performing and more accurate than Ronin/Ronin-M/Ronin-MX?

Yes. Ronin 2 was created with stronger motors and its SmoothTrack algorithm has been enhanced for smoother performance. A new GPS module enables it to perform much better in high G-force situations.

Are all three previous modes of operation still available on Ronin 2?

Yes. All three previous modes of operation — upright, underslung, and briefcase — are available with Ronin 2. What’s new is that users can now transition between upright and underslung modes without changing the orientation of the camera. Users can now lock the yaw motor for 2-axis mode while using Ronin 2 with a Steadicam. Now you can lock each axis for an easier setup, better balancing, and safer transportation.

How does the new yaw axis quick release differ from previous Ronins?

The new yaw axis quick release mount in Ronin 2 means a faster set up in different scenarios, enabling an easier transition from handheld to car and aerial applications.

Does Ronin 2 come with a dedicated stand?

No. However, Ronin 2’s new hand and ring grip design come with retractable feet so that the whole gimbal system can stand upright on a flat surface. The grip is detachable and can be separated when standing is not required for shooting or transportation.

What kind of batteries does Ronin 2 use?

Ronin 2 uses the same batteries as the Inspire 2.

Are Ronin series batteries compatible with the Ronin 2?

No. The Ronin 2 is only compatible with Ronin 2 or Inspire 2 batteries and is NOT compatible with any previous Ronin series batteries.

How long is the battery life of Ronin 2?

When powering the Ronin 2 and a RED Dragon camera simultaneously, the Ronin 2 dual battery system will last up to 2.5 hours.

How long does it take to fully charge the battery?

When using the Inspire 2 charging hub, it will take approximately 90 minutes to fully charge both batteries.

What is a hot-swappable battery?

A hot-swappable battery eliminates power-related downtime to ensure maximum available power. For example, when shooting a scene with batteries at low power, hot swappable batteries allow you to change one of the batteries without turning off the camera system, gimbal, or accessories. Hot-swappable batteries thus allow you to shoot continuously and uninterrupted.

Can I use the Ronin 2 battery with third party products like monitors?

Yes. The battery system is designed with a P-TAP port that allows you to power your accessories with industry standard power cables.

What cameras are compatible with Ronin 2?

Ronin 2 is compatible with a large number of cameras. The biggest that DJI tested so far is the Arri Alexa Mini with a Canon CINE-SERVO 17-120mm lens.

Do I have full control on the cameras mounted on Ronin 2?

For selected cameras, user can control its settings such as ISO, frame rate, resolution or start/stop through our new camera control module.

What is the largest lens I can mount on Ronin 2?

The largest lens tested on Ronin 2 with an Alexa Mini weighed about 6.6lbs (3kg). But the largest size of lens varies based off different cameras.

Does Ronin 2 come with a remote controller?

Yes. The new remote controller is smaller than before with a more functional joystick. It also has dual control frequency bands 2.4 GHz and 5.8 GHz.

What are the main differences between this and previous remote controllers?

Users can now change the control speeds of the joystick directly on the remote controller by tweaking the knobs, without changing any settings in the gimbal assistant app or directly on Ronin 2.

What is the control range of Ronin 2?

Unobstructed control range is over 1 km.

What is the new gimbal assistant app? What can I do with it?

The new gimbal assistant app has all the fundamental gimbal parameters such as SmoothTrack settings, motor stiffness, and gimbal operation modes. Included are new intelligent features that are studio-oriented such as Panorama, Timelapse and direct control of supported cameras.

What is the built-in screen for?

Ronin 2’s new built-in ultra-bright touch screen provides the convenience of changing gimbal settings without using a mobile device directly on the gimbal. With the built-in screen, users are now able to change most of the settings they see on the new gimbal assistant app.

Can I use third-party remote controllers with Ronin 2?

Yes, you can.

Are all Ronin series accessories compatible with Ronin 2?

No.

• Its carbon fiber structure makes the Ronin 2 lightweight, strong, and functional. Upgraded high-torque motors support payloads of 30 lbs.
• A new mechanical design makes camera mounting and balancing easier while optimizing accuracy. New axis locks improve usability, and its extendable roll axis allows the Ronin 2 to support more cameras.
• Angular vibration is within ±0.02°, and the built-in GPS module improves the gimbal accuracy, making it extremely stabile even while shooting at high speeds.
• Adjusting settings is easier with the built-in touch panel, and it also displays the Ronin 2’s working status.
• A dual battery system and support for hot swapping allows for continuous operation when replacing batteries. With fully charged TB50 Intelligent Batteries, the Ronin 2 can power a camera and the whole system for 2.5 hours.
• Power and video signal are transmitted through the built-in slip ring. The Ronin 2 comes with several accessory ports and supports the DJI Focus system, lens hoods, wireless video downlinks, and monitors.
• Transmits signal at 2.4 GHz and 5.8 GHz to improve transmission stability.
• The brand new Ronin 2 app can adjust settings and also activate multiple intelligent features such as Track and CamAnchor.

Powerful:

Ronin 2 exists to let filmmakers capture the scene they see in their mind. Upgraded high torque motors allow it to support a wider range of cameras, resist high winds and G-forces caused when mounted to a car and keep it moving smoothly in flight.

Supported Builds:

Whether it’s a simple DSLR or a professional camera with cinema grade glass with all the accessories mounted, Ronin 2 will stabilize the build.

Higher Torque, More Power, Same Precision:

With up to eight times more powerful motors than previous iterations, the Ronin 2 can withstand sustained speeds of over 75mph with camera builds as heavy as 30lbs. We’ve increased power without sacrificing control. With encoded motors and extreme precision, the same 0.02° of accuracy remains.

Accessory Support:

With the new Ronin power hub, essential accessories such as DJI Focus and wireless video transmission systems could gain power and communicate data with Ronin 2.

Versatility:

A newly designed detachable Grip allows Ronin 2 to stand up on its own and is easily separated when the lower part of the hand grip is not needed. Ronin 2 is also highly compatible with cable cams, drones, cranes, Steadicams and more.

Easy:

The simplicity of Ronin has been amplified with Ronin 2, making setup and use easier than ever. Everything, from mounting cameras to balancing and tuning, powering accessories and transportation has been tweaked and refined for ease and speed.

Integrated screen:

A dedicated ultra-bright touch screen for settings and adjustments has been integrated into the Ronin 2, streamlining and accelerating gimbal setup. Tactile buttons including motor pause are now easily within reach.

Intuitive software:

The extensively refined, redesigned and expanded Gimbal Assistant app, helps to create content with minimum effort via new features such as CamAnchor, Timelapse, and Panorama, providing a more intuitive and easier to use full control system for the Ronin 2.

Intelligent:

Enhanced intelligence means filmmakers can get shots with Ronin 2 that would once have needed specialist expertise or additional equipment, from total smoothness control to studio-oriented smart features.

Integrated:

Power systems are now tightly integrated into Ronin 2, capable of powering its motors and the attached camera and accessories without dangling cables or multiple power systems. As it uses a dual battery system, filmmakers can hot swap to keep the camera and accessories powered and maximize shooting time.

Hot-Swap Batteries:

Two batteries on the Ronin 2, and the ability to run with only one allows batteries to be charged and swapped without interrupting a shoot.

Accessory Powering:

Installed cameras, monitors, or accessories, including the DJI Focus, can be powered by the Ronin 2 batteries through integrated cabling and ports, eliminating dangling cables.

Reliable:

Every element of Ronin 2 has been designed to maximize reliability, from materials to the splash-proof enclosed motor design, cable management, and redundancy. All of this creates a system that shines in the most demanding of shooting environments.

Carbon Fibre Build:

A carbon fibre build enables Ronin 2 to perform well in extreme weather conditions. Light and durable, it is reliable in the most testing scenarios.

Ultra-durable Batteries:

Robust and resilient in extreme weather conditions, the Ronin 2’s self-heating batteries ensure stable power output for high-performance in temperatures as low as -4°F (-20°C) and high heat environments. Dual batteries capable of operating simultaneously and independently provide complete redundancy, keeping the shoot going.
