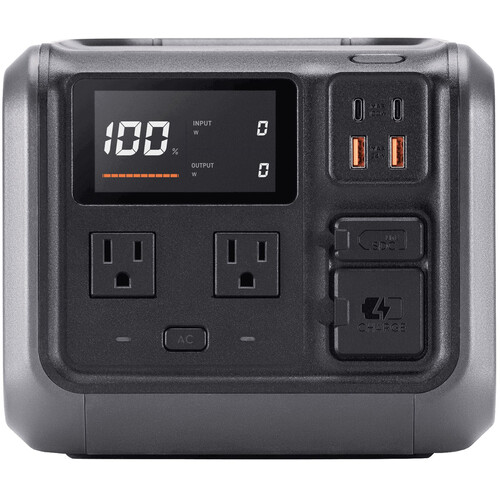

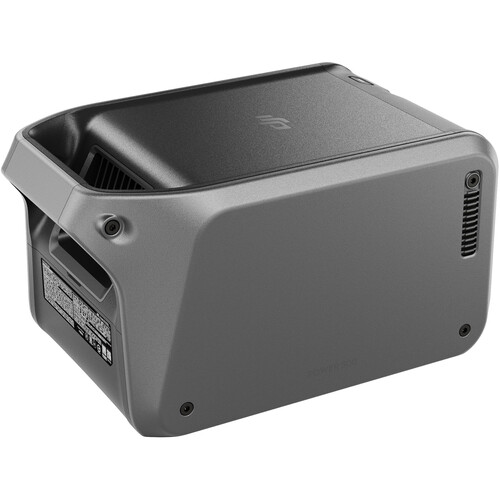

DJI Power 500 (UK)

Overview
The DJI Power 500 is a compact and portable power station that boasts a genuine stable high-capacity power output of 1000W. With a battery capacity of 512 Wh, it can power high-wattage appliances such as electric kettles and charge multiple devices simultaneously. It also has the capability to fast charge DJI drone batteries, allowing for worry-free flight and creation. The power station can be recharged through various options, including grid power, USB-C ports, and even solar power. Safety is a top priority, with 26 product test certifications from the Swiss third-party testing authority SGS ensuring worry-free usage.

One of the standout features of the DJI Power 500 is its low noise level of only 25dB, making it suitable for use indoors or while camping. The power station also has dual 100W USB-C ports, providing super fast charging for devices. With comprehensive safety features, a long lifespan of up to 10 years, and the ability to function as a UPS in case of power outages, the DJI Power 500 is a reliable and versatile choice for all your power needs.

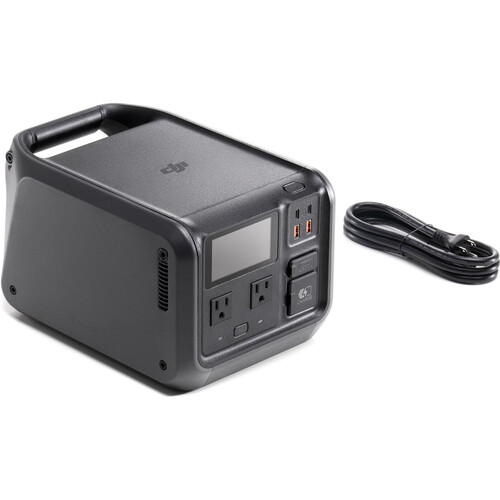

Included in box
1x DJI Power 500
1x DJI Power AC Power Cable

About the DJI Power 500 (UK)
1000W Genuine Stable High-Capacity Power Output

The compact and portable DJI Power 500 has a battery capacity of 512 Wh to provide a max output power of 1000 W. It is capable of powering high-wattage appliances such as electric kettles (900 W) and can charge a computer and smartphone simultaneously, providing stable power until battery runs out.

Fast Charges DJI Drones

With the aid of separately-sold charging cables, you can fast charge select DJI drone batteries with the DJI Power SDC super-fast charge function, and be up in the air within approximately 30 mins. With three drone batteries and a DJI portable power station, you can enjoy an entire day of worry-free flight and creation

Multiple Recharging Options

DJI Power 500 can be recharged through two 100W USB-C ports, for a total power of 200W input power, and it can be fully charged in approximately three hours

Grid Power

It’s fast and easy to plug in, recharge, and go. When connected to grid power, DJI Power 500 supports both 540W Fast Recharge Mode and 270W Standard Recharge Mode, with the quickest recharging time being 70 minutes for 100% battery. It can also charge to 80% in just 50 minutes.

USB-C Recharging

DJI Power 500 can be recharged through two 100W USB-C ports, for a total power of 200W input power, and it can be fully charged in approximately three hours.

Solar Power

DJI Power 500 can be connected to solar panels through the DJI Power Solar Panel Adapter Module (MPPT) or DJI Power Car Power Outlet to SDC Power Cable, [10] and recharged with environmentally friendly solar power. MPPT (Maximum Power Point Tracking) is an intelligent algorithm that supports real-time monitoring of the voltage generated by connected solar panels. By tracking and maintaining the highest voltage and current values (V-I), the algorithm allows the solar panels to recharge DJI Power 500 in an optimized and efficient way.

Car Power

Easily supercharge any road trip. With the DJI Power Car Power Outlet to SDC Power Cable (12V/24V), you can recharge DJI Power 500 via car charger for a fully recharged unit in as little as six hours.

Safe and Secure, Inside and Out

Safety comes first at all times. From the body structure and cell chemistry to the system software, DJI Power 500 features a comprehensive safety design. It has passed 26 product test certifications from the Swiss third-party testing authority SGS, ensuring worry-free electrical usage

SGS Switzerland Authority Certification

Thanks to its comprehensive safety design, DJI Power 500 has gained the high-quality portable power station certification from SGS Switzerland, and received 26 product test certifications, including 2 product test verifications, 4 mechanical performance tests, 9 electrical performance tests, 3 environmental resistance tests, 5 noise-level tests, and 3 intelligent and efficient DC power-supplying and recharging tests.

Intelligent Battery Management System (BMS)

When the safety threshold of electricity usage is surpassed, the protective mechanism for supplying power and recharging will kick into action automatically. And once electricity supply returns to normal, DJI Power 500 will resume operation.

LFP Cell

The LFP cell is safe and durable, and can achieve 4000 cycles, providing a lifespan of approximately 10 years, even with frequent use

Safe and Reliable Power Usage

11 Temperature Sensors

11 temperature sensors on the device continually monitor heat dissipation, and the power station can function normally even in temperatures as high as 40° C (104° F).

Power Outage Protection

Ten fuses located throughout the power station provide circuit protection for each module. Even if there is a circuit abnormality, DJI Power 500 will respond quickly and safely.

UPS Mode, Seamless Power Continuity

If an electrical device is connected to a powered-on DJI Power 500 (via AC output port) and both are receiving grid power, DJI Power 500 defaults to UPS (Uninterruptible Power Supply) mode. In cases of sudden power outage, DJI Power 500 can start powering the connected device (or devices) within 0.02 seconds, ensuring continued operation.

25dB—Sleep Undisturbed Indoors or Camping

The noise level of DJI Power 500 is as low as 25 dB during recharging, lower than most household refrigerators, so there is no noise disturbance, even in quiet environments. It is also quieter than most electric fans and other everyday appliances.

Dual 100W USB-C Ports, Super Fast Charging

Dual 100W USB-C two-way ports support power input and output, and both ways support the PD 3.0 fast charging protocol, enabling efficient output and input. The two ports can be used simultaneously to recharge DJI Power 500 at a maximum of 200 W, or provide power supply to devices like cameras, phones, and laptops at up to 200 W

General
Model DYM500L/DYM500H
Capacity 512 Wh
Net Weight Approx. 7.3 kg
Dimensions 305×207×177 mm (L×W×H)
Number of Ports AC Output × 2
USB-C × 2
USB-A × 2
SDC Lite × 1
AC Input × 1
Max Operating Altitude 3000 m
Output Specifications
AC Output DYM500L: AC 100-120 V, 50/60 Hz, max continuous output: 1000 W
‌ DYM500H: AC 220-240 V, 50/60 Hz, max continuous output: 1000 W
Max continuous output power is available when the product’s battery level is above 20%
AC output data varies by country and region.
AC Output (Bypass Mode) DYM500L: AC 100-120 V, max 1000 W
DYM500H: AC 220-240 V, max 1000 W
USB-A Output 5 V, 3 A
9 V, 2 A
12 V, 2 A
Max output power per channel: 24 W
USB–C Output 5 V, 5 A
9 V, 5 A
12 V, 5 A
15 V, 5 A
20 V, 5 A
Max output power per channel: 100 W (device being charged should support PD 3.0 protocol)
SDC Lite Output SDC Lite: 9-27 V, max output power: 240 W
Input Specifications
AC Input DYM500L: AC 100-120 V, 540 W (recharging), 1000 W (Bypass mode)
DYM500H: AC 220-240 V, 540 W (recharging), 1000 W (Bypass mode)
SDC Lite Input DC 22.4-29.2 V, max 300 W, 10 A
USB–C Input DC 5-20 V, max 100 W (the charger should support PD 3.0 protocol)
Supports simultaneous power input with two USB-C ports at a max 200 W.
Battery
Cell Chemistry LFP (lithium ferrophosphate)
Cycle Life Maintains over 70% capacity after 4000 cycles.
Measured at 25℃/77°F room temperature, being recharged in the
270W Standard Recharge Mode, and at an output power of 500 W.
Operating Temperature
Power Supply Temperature -10° to 45° C (14° to 113° F)
Recharging Temperature 0° to 45° C (32° to 113° F)
Storage Temperature -10° to 45° C (14° to 113° F)

1000W Genuine Stable High-Capacity Power Output
Dual 100W USB-C Ports, Super Fast Charging
25dB—Sleep Undisturbed Indoors or Camping
Supports Solar Charging
Comprehensive Safety
Fully Charged in 70 Mins
Up to 5 Years of Warranty
