DJI O4 Air Unit

Overview
With a 155° ultra-wide FOV, easily navigate through complex terrains and capture breathtaking flight footage. Supporting 4K/120fps recording, it delivers high image quality and a smooth camera view, offering you a cinematic visual experience. Retains more details in highlights and shadows, giving you greater flexibility in post-production editing. With RockSteady, even high-speed flights maintain steady video capture. Additionally, its compatible with the Gyroflow software for offline post-stabilization, ensuring smooth and stable footage every time you fly.

The DJI O4 Air Unit Series marks a new leap in video transmission performance, delivering a cutting-edge digital video transmission solution with higher resolution, lower latency, and extended range. Equipped with the DJI O4 video transmission system, achieving ultra-low latency for more responsive controls. Paired with the dual-antenna design of the DJI O4 Air Unit Pro, the max transmission distance can reach up to 15 kilometres, and the system can automatically select the most stable frequency. The DJI O4 Air Unit Series is capable of recording 4K/60fps video, ensuring clear and smooth real-time imagery. No matter how fast you fly, the camera view keeps up.

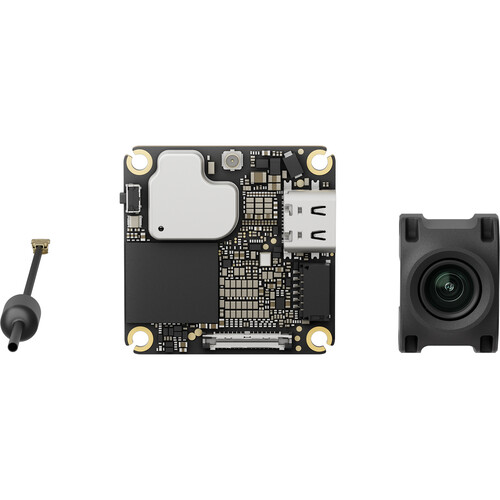

Included in box
1x DJI O4 Air Unit Camera Module

1x DJI O4 Air Unit Transmission Module

1x DJI O4 Air Unit Antenna

1x DJI O4 Air Unit 3-in-1 Cable

About the DJI O4 Air Unit
The DJI O4 Air Unit Series marks a new leap in video transmission performance, delivering a cutting-edge digital video transmission solution with higher resolution, lower latency, and extended range. Weighing just 8.2 grams, the DJI O4 Air Unit features a 1/2-inch image sensor capable of capturing 4K/60fps video, offering both portability and versatility. Taking it a step further, the DJI O4 Air Unit Pro boasts an enhanced imaging capability with a 1/1.3-inch image sensor, capable of recording 4K/120fps video. It also supports impressive features such as 10-bit D-Log M color mode and a 155° ultra-wide FOV, capturing the vast expanse of the world in unparalleled detail.

New Heights in Transmission, More Freedom in Flight

The DJI O4 Air Unit Series is equipped with the DJI O4 video transmission system, achieving ultra-low latency for more responsive controls. Paired with the dual-antenna design of the DJI O4 Air Unit Pro, the max transmission distance can reach up to 15 kilometres and the system can automatically select the most stable frequency. Whether soaring over mountains and rivers or navigating indoor spaces, you can perform confidently and with precision.

Crisp and Fluid, Visually Striking

The DJI O4 Air Unit Series is capable of recording 4K/60fps video. The video transmission system utilizes H.265 video encoding, supporting high-frame-rate transmission at 1080p/100fps, ensuring clear and smooth real-time imagery. No matter how fast you fly, the camera view keeps up.

New Racing Mode: Unleashed Speed, Unlimited Fun

The DJI O4 Air Unit Series introduces a new Racing mode, with video transmission latency as low as 15 milliseconds. It supports up to eight aircraft racing simultaneously, taking you on an exhilarating, high-speed journey through the skies.

DJI O4 Air Unit Pro: Max Video Transmission Range of 15 km
DJI O4 Air Unit: Max Video Transmission Range of 10 km * Regulations vary by country and region, and actual performance may differ.

Upgraded Imaging: Cinematic Masterpieces at Your Fingertips

The DJI O4 Air Unit features a 1/2-inch image sensor, capable of capturing 4K/60fps video. The DJI O4 Air Unit Pro goes a step further with a 1/1.3-inch image sensor, supporting 4K/120fps video recording. No need for an external action camera to achieve ultra-wide-angle, high-definition footage. Creating stunning visuals has never been so effortless.

Even in Intense Light, Create With Confidence

The DJI O4 Air Unit Pro Camera Module can be used with the DJI Avata 2 ND Filter Set (ND8/16/32). Even in bright lighting conditions, it ensures balanced exposure and true-to-life colors. This allows you to flexibly control light intake and shutter speed, easily achieving natural motion blur and making your footage more dynamic and impactful.

Compatible With Canvas Mode: Your Flights, Your Way

You have full control over what’s displayed on your screen. The DJI O4 Air Unit Series supports Canvas Mode and Betaflight OSD settings. You can customize the real-time data and layout displayed on your goggles screen, making flight data clear at a glance, and enhancing your control precision.

Lightweight Design, Effortless Adaptation

The DJI O4 Air Unit Series adopts a lightweight and portable design with extensive compatibility. Specifically, the DJI O4 Air Unit can fit drone frames of 2 inches and smaller, supporting flexible assembly to suit various creative flight scenarios. Experience the thrill of flying while capturing high-quality footage with ease.

Compatible With Various Goggles and Remote Controllers
Compatible with DJI Goggles 3 and DJI Goggles N3, and can be used with the DJI FPV Remote Controller 3.
Also compatible with DJI Goggles 2 and DJI Goggles Integra, supporting use with the DJI FPV Remote Controller 2.

Weight Air Unit (camera module excluded): Approx. 5.1 g
Air Unit (camera module included)：Approx. 8.2 g*
Antenna: Approx. 0.75 g
Dimensions Transmission Module: 30×30× 6 mm
Camera Module: 13.44×12.36×16.50 mm
Coaxial Cable: 50 mm
3-in-1 Cable: 50 mm
Antenna: 80 mm
Operating Frequency 5.170-5.250 GHz
5.725-5.850 GHz
Operating frequency allowed varies among countries and regions. Please refer to local laws and regulations for more information
Transmitter Power (EIRP) 5.1 GHz: <23 dBm (CE) 5.8 GHz <30 dBm (FCC) <14 dBm (CE) <30 dBm (SRRC) Lowest Latency With DJI Goggles 3 and pick racing mode 1080p/100fps video transmission quality, the latency is as low as 20 ms. With DJI Goggles N3 and pick racing mode 1080p/100fps video transmission quality, the latency is as low as 24 ms. With DJI Goggles 2 or Goggles Integr 1080p/100fps video transmission quality, the video transmission latency is less than 35 ms. Max Video Transmission Range With DJI Goggles 3/DJI Goggles N3 10 km (FCC),6 km (CE),6 km (SRRC) Live View Quality 1080P@30/50/60/100fps Communication Bandwidth Max 60 MHz Antenna 1 antenna, 1T1R Channels Supports auto mode Supports manual mode With DJI Goggles 3 or DJI Goggles N3 60 MHz: 1 channel; 40 MHz: 1 channels; 20 MHz: 3 channels; 10 MHz: 3 channel With DJI Goggles 2 or Goggles Integra 40 MHz: 1 channel; 20 MHz: 3 channels; 10 MHz: 3 channels Channels Info FCC/SRRC/CE 60MHz/40 MHz Channel 1: 5794.5 MHz 20 MHz/10 MHz: Channel 1: 5768.5 MHz Channel 2: 5789.5 MHz Channel 3: 5814.5 MHz Image Sensor 1/2-inch CMOS Sensor Lens FOV: 117.6° The equivalent focal length: 14 mm Aperture: f/2.8 Focus: 0.6 m to ∞ ISO Range 100-6400 (Auto) 100-12800 (Manual) Video Resolution 4K(4:3): 3840 x 2880@30/50/60fps 4K(16:9): 3840 x 2160@30/50/60fps 1080P(4:3): 1440 x 1080@30/50/60/100/120fps 1080P(16:9): 1920 x 1080@30/50/60/100/120fps Video Format MP4 Max Video Bitrate 100 Mbps Colour Mode Normal Mode Camera FOV Standard Wide-Angle EIS RockSteady 3.0+ Stabilization function off (supports Gyroflow) Input Voltage 3.7-13.2 V Operating Temperature '-10° to 40° C Built-in Storage 23GB Supported SD Cards Not supported Recommended microSD Cards Not supported Supported Flight Controller System Betaflight 4.3.0 and higher versions Supported DJI Goggles and Remote Controllers DJI Goggles 3 + DJI FPV Remote Controller 3 DJI Goggles N3 + DJI FPV Remote Controller 3 DJI Goggles 2/ Goggles Integra + DJI FPV Remote Controller 2 155° Ultra-Wide FOV With a 155° ultra-wide FOV, easily navigate through complex terrains and capture breathtaking flight footage. 4K/120fps Video Supporting 4K/120fps recording, it delivers high image quality and a smooth camera view, offering you a cinematic visual experience. 10-bit D-Log M Colour Mode Retains more details in highlights and shadows, giving you greater flexibility in post-production editing. Multiple Stabilization Modes With RockSteady, even high-speed flights maintain steady video capture. Additionally, it's compatible with the Gyroflow software for offline post-stabilization, [6] ensuring smooth and stable footage every time you fly.
