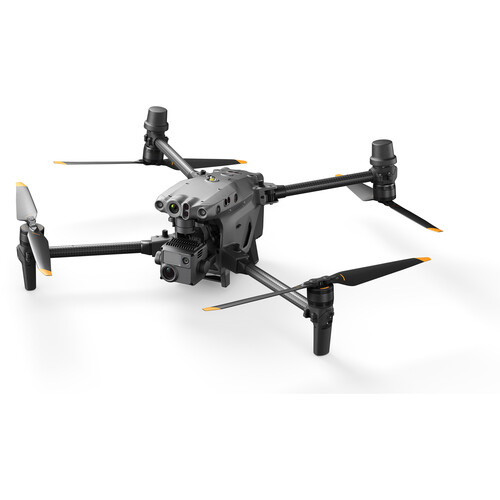

DJI Matrice 30 (ENT) Drone

Overview
The DJI M30 Series is a powerful and versatile tool for those who need to capture aerial data. It features integrated cameras, including a thermal camera, and a laser rangefinder sensor. With an IP55 ingress protection rating and a temperature operation range of -20° C to 50° C, it is suitable for use in various weather conditions. The M30 is also lightweight and portable, making it ideal for those who are constantly on the move. Its remote control is tailor-made for enterprise users, providing efficient and precise control.

The M30 Series also boasts impressive flight performance, with a maximum flight time of 41 minutes. It is compatible with FlightHub 2, allowing for efficient ground-to-cloud synergy. The M30 can also support remote deployment operations with the DJI Dock. It features dual-vision and ToF sensors on all six sides, as well as an ADS-B receiver for added safety and reliability. With its compact and foldable design, superior image quality, and advanced transmission capabilities, the M30 Series is a top choice for commercial drone pilots.

Summary
Focal Length: 21-75mm
Flight Time: 41 mins
Max. Speed: 23m/s
Resolution and Frame Rate: 1920×1080
Sensor: CMOS
Weight: 0-2kg
Included in box
1x Matrice 30
1x DJI RC Plus
1 x BS30 & storage case. No TB30

About the DJI Matrice 30 (ENT) Drone
Powerful Flight Performance

A balance of power and portability delivers higher operational efficiency

Environmental Adaptability

With IP55 protection, the M30 can easily handle adverse weather and temperatures ranging from -20° C～50° C.

Safe and Reliable

Dual-vision and ToF sensors appear on all six sides of the aircraft, keeping it and your mission safe. The built-in ADS-B receiver provides timely warnings of any incoming crewed aircraft nearby.

Redundancies and Backup Systems

Built-in advanced redundancy systems help keep your critical missions going even in unexpected scenarios.

Enhanced Transmission

Four built-in antennas support OcuSync 3 Enterprise, which enables triple-channel 1080p video transmission, and seamless swapping between input feeds, even in complex environments.

Lightweight and Portable

Compact and foldable, the M30 Series is easy to pack up, carry, and deploy.

Capture Everything

The M30 Series integrates wide, zoom, and thermal cameras (M30T only) with a laser rangefinder, which together can capture the aerial data you need, when you need it.

Superior Image Quality

Find hotspots and heat signatures thanks to high-resolution thermal capabilities.

With the FPV camera optimized for low-light conditions, the ground and skyline are clearly visible, even at night, so you can fly with safety and confidence.

Capture bright, clear images in low-light conditions with Smart Low-Light Photo.

PinPoint an object in view, and advanced sensor fusion algorithms immediately deliver its coordinates.

Built For Commercial Drone Pilots

The 7-inch widescreen DJI RC Plus with dual control mode is tailor-made for Enterprise users.

Enterprise Environmental Adaptability
IP54 Protection

Water and dustproof
-20°C to 50°C
Capable in climates both hot and cold

Improved Stability and Battery Life
Four Antenna OcuSync 3 Enterprise

Cover more area with stable video transmission and removable dual-antennas.

Extended Battery Life

Internal and external battery configuration powers 6 hours of battery life and enables hot-swapping for seamless, uninterrupted flight operations.

Introducing the All-new DJI Pilot 2

A revamped Enterprise flight interface designed to improve piloting efficiency and flight safety.

Reimagined User Interface

Drone and payload controls can be easily accessed with one tap. Clear presentation of flight details and navigational information improves user experience and flight efficiency.

Ergonomic Design For Safety and Efficiency

Pilot 2 works seamlessly with the DJI RC Plus. Screenside and customizable buttons are all within reach and enable quick operations, such as adjusting camera views and dropping PinPoints.

Flight Safety

Pre-flight Checklist

A comprehensive checklist helps you quickly confirm aircraft status and parameter settings, so you can take off with confidence.

Navigation Display

An optimized interface displays your home point, PinPoints, and nearby obstacles to improve safety and provide comprehensive situational awareness.

Alert Notifications

Stay updated with timely alerts as conditions and scenarios evolve.

DJI FlightHub 2

Ground-to-Cloud Synergy

Master Your Mission Environment

FlightHub 2 offers a 2.5D Base Map for quick terrain awareness, One-Tap Panorama Sync for rapid site overviews, and Cloud Mapping for fast mapping in RGB or infrared.

Mission Live Streaming

Connect multiple users to one or many drone operations simultaneously, and keep teams updated with the latest developments thanks to low latency, high-resolution livestreaming.

Live Annotations

Highlight objects or areas of interest for efficient mission management and resource distribution. Annotations are visible to ground teams, pilots, or any team member for timely project alignment and task distribution.

Streamlined Team Communication

Synchronize valuable information such as teams position, drone status, mission details and more, in real time and across multiple device types, making team collaboration easier than ever.

Advanced Intelligence

Route Planning and Management

Flight routes and missions planned in FlightHub 2 can be easily synchronized with Pilot 2. Operation data can be automatically uploaded to FlightHub 2 Media Files for unified management and analysis.

An upgrade to Live Mission Recording brings an optimized user interface, convenient task recording, and target point marking, saving 90% of operation steps. Gimbal angle and photo settings can be adjusted between Waypoints, improving flight and mission efficiency.

DJI Dock, For Road Less Traveled

Non-stop Ops

The DJI Dock (M30 Series Dock Version5) has flagship-level performance with a maximum operation range of 7 km6, IP55 weather resistance, and resilience in temperatures ranging from -35℃ to 50℃7.

Fast Charging, Fast Turnaround

Fast charge and take off thanks to TEC air conditioning that cools the drone batteries, enabling charging from 10-90% in just 25 minutes8.

Cloud Platform Management

With FlightHub 2, unlock full DJI Dock functionality from the cloud. Schedule missions, create and edit flight routes, and manage data collected.

Private Deployment

Cloud API opens up DJI Dock functionality to developers and system integrators, who can set up a custom, private server.

Core Package

The Matrice 30 Series (M30 or M30T) comes with a DJI RC Plus, two TB30 Intelligent Flight Batteries, one BS30 Intelligent Battery Station, and the aircraft storage case.

BS30 Intelligent Battery Station

A smart, portable solution with multiple charging modes to meet your mission needs. Capable of charging four pairs of TB30 Intelligent Flight Batteries and one pair of RC Plus batteries, pairs are charged one at a time, with one pair taking just 30 minutes to charge from 20-90%.

TB30 Intelligent Flight Battery

Each battery supports self-heating for cold environments, hot-swapping for fast turnarounds, and 400 charge cycles9 for increased operational efficiency.

Open Developer Ecosystem

MSDK

Mobile SDK 5 simplifies the development of apps to control the Matrice 30 Series. Mobile SDK 5 is fully open source and comes with production code samples of core DJI Pilot 2 modules.

PSDK

The M30 Series Onboard SDK and Payload SDK ports have been merged into one. Together with the M30’s PSDK quick-release frame, this facilitates easier development and deployment of 3rd party payloads.

Cloud API

With Pilot 2’s built-in MQTT based protocols in DJI Cloud API, you can directly connect the Matrice 30 Series to Third-Party cloud platforms without having to develop an App. Access the drone’s hardware, video live-stream, and photo data. Cloud API also supports DJI Docks, which can be connected to Third-Party platforms for management of Docks, mission planning, and data transfer.

Aircraft
Dimensions (unfolded, excl. propellers) 470×585×215 mm (L×W×H)
Dimensions (folded) 365×215×195 mm (L×W×H)
Diagonal Wheelbase 668 mm
Weight (incl. two batteries) 3770 ± 10 g
Max Takeoff Weight 4069 g
Max Takeoff Weight for C2 Certification in EU 3998 g
Operation Frequency[1] 2.4000-2.4835 GHz; 5.725-5.850 GHz
Transmitter Power (EIRP) 2.4 GHz: <33 dBm (FCC); <20 dBm (CE/SRRC/MIC) 5.8 GHz: <33 dBm (FCC/SRRC); <14 dBm (CE) Hovering Accuracy (windless or breezy) Vertical: ±0.1 m (Vision System enabled); ±0.5 m (N-mode with GPS); ±0.1 m (RTK) Horizontal: ±0.3 m (Vision System enabled); ±1.5 m (N-mode with GPS); ±0.1 m (RTK) RTK Positioning Accuracy (fixed RTK enabled) 1 cm+1 ppm (horizontal) 1.5 cm+1 ppm (vertical) Max Angular Velocity Pitch: 150°/sec.; Yaw: 100°/sec. Max Tilt Angle 35° (N-mode and Forward Vision System enabled: 25°) Max Ascent/Descent Speed 6 m/s, 5 m/s Max Tilt Descent Speed 7 m/s Max Horizontal Speed 23 m/s Max Service Ceiling Above Sea Level (without other payload) 5,000 m (with 1671 propellers) 7,000 m (with 1676 propellers) Max Wind Resistance 12 m/s Max Hover Time [2] 36 min Max Flight Time[2] 41 min Motor Model 3511 Propeller Model 1671 1676 High Altitude (not included) Ingress Protection Rating[3] IP55 GNSS GPS+Galileo+BeiDou+GLONASS (GLONASS is supported only when RTK module is enabled) Operating Temperature -20° to 50° C (-4° to 122° F) Gimbal Angular Vibration Range ±0.01° Controllable Range Pan: ±90° Tilt: -120° to +45° Mechanical Range Pan: ±105° Tilt: -135° to +60° Roll: ±45° Zoom Camera Sensor 1/2" CMOS, Effective pixels: 48M Lens Focal length: 21-75 mm (equivalent: 113-405 mm) Aperture: f/2.8-f/4.2 Focus: 5 m to ∞ Exposure Compensation ±3 ev (using 1/3 ev as step length) Electronic Shutter Speed Auto Mode: Photo: 1/8000-1/2 s Video: 1/8000-1/30 s M Mode: Photo: 1/8000-8 s Video: 1/8000 -1/30 s ISO Range 100-25600 Max. Video Resolution 3840×2160 Max Photo Size 8000×6000 Wide Camera Sensor 1/2" CMOS, Effective pixels: 12M Lens DFOV: 84° Focal length: 4.5 mm (equivalent: 24 mm) Aperture: f/2.8 Focus: 1 m to ∞ Exposure Compensation ±3 ev (using 1/3 ev as step length) Electronic Shutter Speed Auto Mode: Photo: 1/8000-1/2 s Video: 1/8000-1/30 s M Mode: Photo: 1/8000-8 s Video: 1/8000-1/30 s ISO Range 100-25600 Max. Video Resolution 3840×2160 Photo Size 4000×3000 Thermal Camera Thermal Imager Uncooled VOx Microbolometer Lens DFOV: 61° Focal length: 9.1 mm (equivalent: 40 mm) Aperture: f/1.0 Focus: 5 m to ∞ Sensitivity ≤30 mk@F1.1 Infrared Temperature Measurement Accuracy[4] ±2°C or ±2% (using the larger value) Video Resolution Infrared Image Super-resolution Mode: 1280×1024 Normal Mode: 640×512 Photo Size Infrared Image Super-resolution Mode: 1280×1024 Normal Mode: 640×512 Pixel Pitch 12 um Temperature Measurement Method Spot Meter, Area Measurement Temperature Measurement Range High Gain Mode: -20° to 150° C (-4° to 302° F) Low Gain Mode: 0° to 500° C (32° to 932° F) Temperature Alert Supported Palette White Hot/Black Hot/Tint/Iron Red/Hot Iron/Arctic/Medical/Fulgurite/Rainbow 1/Rainbow 2 FPV Camera Resolution 1920×1080 DFOV 161° Frame Rate 30 fps Laser Module Wavelength 905 nm Max Laser Power 3.5 mW Single Pulse Width 6 ns Measurement Accuracy ± (0.2 m + D×0.15%) D is the distance to a vertical surface Measuring Range 3-1,200 m (0.5×12 m vertical surface with 20% reflectivity) Vision Systems Obstacle Sensing Range Forward: 0.6-38 m Upward/Downward/Backward/Sideward: 0.5-33 m FOV 65° (H), 50° (V) Operating Environment Surfaces with clear patterns and adequate lighting (> 15 lux)
Infrared Sensing Systems
Obstacle Sensing Range 0.1 to 10 m
FOV 30°
Operating Environment Large, diffuse, and reflective obstacles (reflectivity >10%)
TB30 Intelligent Flight Battery
Capacity 5880 mAh
Voltage 26.1 V
Battery Type Li-ion 6S
Energy 131.6 Wh
Net Weight Approx. 685 g
Operating Temperature -20° to 50° C (-4° to 122° F)
Storage Temperature 20° to 30° C (68° to 86° F)
Charging Temperature -20° to 40° C (-4° to 104° F)
(When the temperature is lower than 10° C (50° F), the self-heating function
will be automatically enabled. Charging in a low temperature may shorten the lifetime of the battery)
Chemical System LiNiMnCoO2
Auxiliary Lights
Effective Illumination Distance 5 m
Illumination Type 60 Hz, solid glow
Remote Controller
Screen 7.02 inch LCD touchscreen, with a resolution of 1920×1200 pixels, and high brightness of 1200 cd/m2
Internal Battery Type: Li-ion (6500 mAh @ 7.2 V)
Charge Type: Supports battery station or USB-C charger maximum rated power 65W (max voltage of 20V)
Charge Time: 2 hours
Chemical System: LiNiCoAIO2
External Battery(WB37 Intelligent Battery) Capacity: 4920 mAh
Voltage: 7.6 V
Battery Type: Li-ion
Energy: 37.39 Wh
Chemical System: LiCoO2
Operating Time[5] Internal Battery: Approx. 3 hours 18 min
Internal Battery + External Battery: Approx. 6 hours
Ingress Protection Rating[3] IP54
GNSS GPS+Galileo+BeiDou
Operating Temperature -20° to 50° C (-4° to 122° F)
O3 Enterprise
Operating Frequency[1] 2.4000-2.4835 GHz, 5.725-5.850 GHz
Max Transmission Distance (unobstructed, free of interference) 15 km (FCC); 8 km (CE/SRRC/MIC)
Max Transmission Distance (with interference) Strong Interference (urban landscape, limited line of sight
many competing signals): 1.5-3 km (FCC/CE/SRRC/MIC)
Medium Interference (suburban landscape, open line of sight, some competing signals): 3-9 km (FCC); 3-6 km (CE/SRRC/MIC)
Weak Interference (open landscape abundant line of sight, few competing signals): 9-15 km (FCC); 6-8 km (CE/SRRC/MIC)
Transmitter Power (EIRP) 2.4 GHz: <33 dBm (FCC); <20 dBm (CE/SRRC/MIC) 5.8 GHz: <33 dBm (FCC); <14 dBm (CE); <23 dBm (SRRC) Wi-Fi Protocol Wi-Fi 6 Operating Frequency[1] 2.4000-2.4835 GHz; 5.150-5.250 GHz; 5.725-5.850 GHz Transmitter Power (EIRP) 2.4 GHz: <26 dBm (FCC); <20 dBm (CE/ SRRC/MIC) 5.1 GHz: <26 dBm (FCC); <23 dBm (CE/ SRRC/MIC) 5.8 GHz: <26 dBm (FCC/SRRC); <14 dBm(CE) Bluetooth Protocol Bluetooth 5.1 Operating Frequency 2.4000-2.4835 GHz Transmitter Power (EIRP) <10 dBm BS30 Intelligent Battery Station Dimensions 353×267×148 mm Net Weight 3.95 kg Compatible Battery Type TB30 Intelligent Flight Battery WB37 Intelligent Battery Input 100-240 VAC, 50/60 Hz Output TB30 Battery Port: 26.1 V, 8.9 A (supported up to two outputs simultaneously) WB37 Intelligent Battery: 8.7 V, 6 A Output Power 525 W USB-C port Max. output power of 65 W USB-A port Max. output power of 10 W (5 V, 2 A) Power Consumption (when not charging battery) < 8 W Output Power (when warming up battery) Approx. 30 W Operating Temperature -20° to 40° C (-4° to 104° F) Ingress Protection Rating[3] IP55 (with the cover closed properly) Charging Time[6] Approx. 30 min (charging two TB30 batteries from 20% to 90%) Approx. 50 min (charging two TB30 batteries from 0% to 100%) Protection Features Anti-Backflow Protection Short Circuit Protection Over Voltage Protection Over Current Protection Temperature Protection Other Footnotes [1] 5.8 and 5.1GHz frequencies are prohibited in some countries In some countries, the 5.1GHz frequency is only allowed for use indoors. [2] The maximum flight time and the hover time were tested in a lab environment and is for reference only. [3] This protection rating is not permanent and may reduce over time after long-term use. [4] Infrared temperature measurement accuracy was tested in a lab environment and is for reference only. [5] The maximum operating time was tested in a lab environment and is for reference only. [6] The charging time was tested in a lab environment at room temperature The value provided should be used for reference only. The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. Integrated Wide, Zoom, and Infrared cameras with a Laser Rangefinder sensor IP55 ingress protection, and -20° C～50° C temperature operation range Lightweight and portable, for those who are mobile Remote control is tailor-made for enterprise users 41-Min Max. Flight Time Compatible with FlightHub 2 for efficient ground-to-cloud synergy Support remote deployment operations with DJI Dock
