DJI LiDAR Range Finder (RS) to DJI Transmission Cable Hub

Overview
The DJI LiDAR Range Finder (RS) to DJI Transmission Cable Hub is a versatile accessory that allows for seamless connection between the DJI LiDAR Range Finder (RS) and other DJI products. It includes four cables that connect to the DJI LiDAR Range Finder (RS), DJI Video Transmitter, DJI RS Focus Motor (2022), and a power supply. This allows for a complete focusing and monitoring system for any camera and manual lens combination, as well as lens calibration and autofocus with a manual lens.

In addition, the USB-C Communication Port of the cable hub can be connected to the DJI RS 3 Pro/DJI RS 4 Pro using the DJI RS Multi-Camera Control Cable (USB-C). This enables inter-connection between the DJI RS 3 Pro/DJI RS 4 Pro, DJI Transmission, and the LiDAR Range Finder (RS) for stabilization, remote monitoring and control, and autofocus. Please note that an external power supply of 12-17 V is required for optimal performance.

Included in box
1 x DJI LiDAR Range Finder (RS) to DJI Transmission Cable Hub
2 x Screw 1/4-20
2 x M4 Screw (10 mm)

About the DJI LiDAR Range Finder (RS) to DJI Transmission Cable Hub

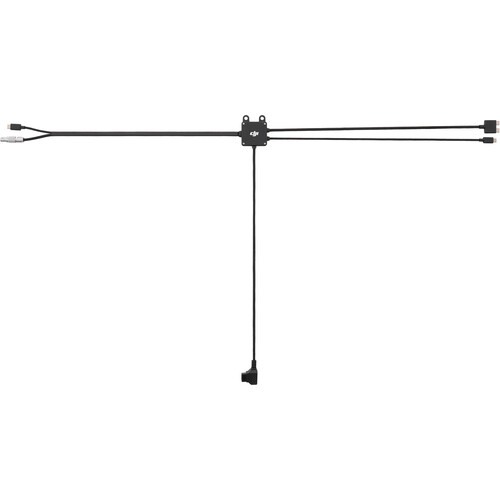

The DJI LiDAR Range Finder (RS) to DJI Transmission Cable Hub incorporates four cables that respectively connect to the DJI LiDAR Range Finder (RS), DJI Video Transmitter, DJI RS Focus Motor (2022), and a power supply.

By connecting the DJI LiDAR Range Finder (RS) with the DJI Video Transmitter and other accessories, you can get a complete focusing and monitoring system for any combination of camera and manual lens, and achieve lens calibration and autofocus with a manual lens.

By connecting the USB-C Communication Port of the cable hub with DJI RS 3 Pro‌‌/DJI RS 4 Pro via the DJI RS Multi-Camera Control Cable (USB-C), you can build inter-connection among DJI RS 3 Pro‌‌/DJI RS 4 Pro, DJI Transmission, and the LiDAR Range Finder (RS) for stabilization, remote monitoring and control, and autofocus.

Note: Please use 12-17 V external power for power supply.

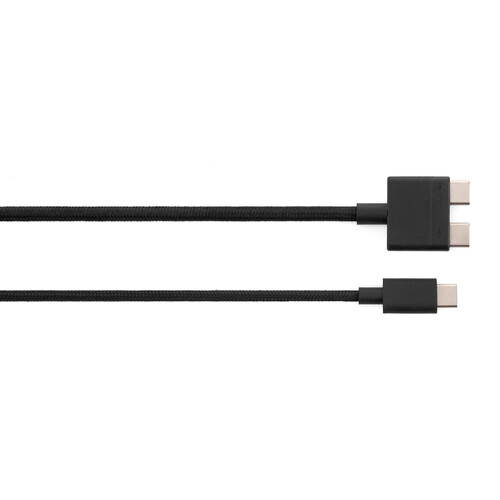

Cable and Port Type Dual USB-C LiDAR Connection Cable (40 cm)
USB-C Focus Motor Connection Cable (40 cm)

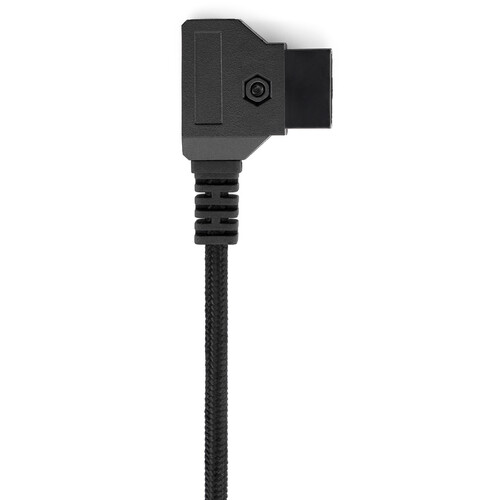

P-Tap Power Cable (40 cm)

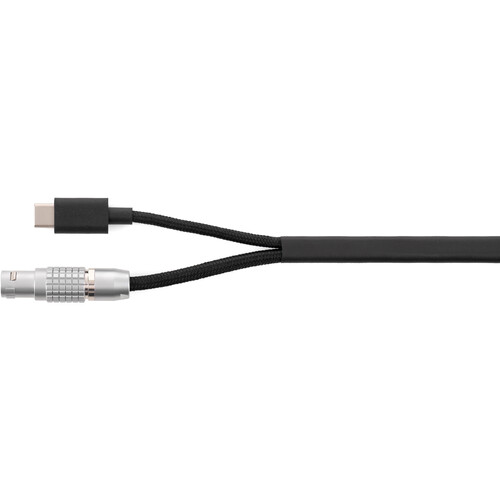

DC-OUT and USB-C Splitter Cable (40 cm)
USB-C Communication Port
Operating Voltage 12 to 17 V
Compatibility DJI RS 4 Pro
DJI Transmission

A hub for several cables that connects a DJI Video Transmitter, DJI LiDAR Range Finder (RS), DJI RS Focus Motor (2022), and other devices.
