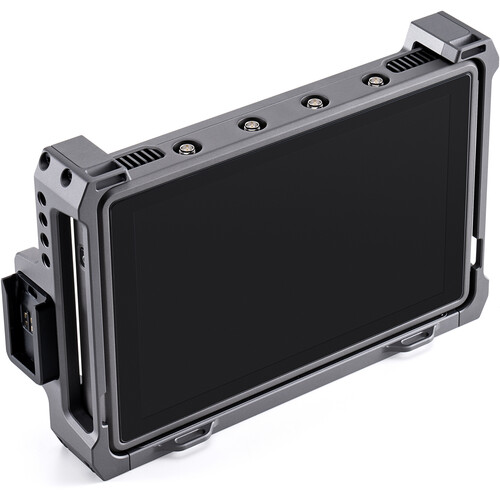

DJI High-Bright Remote Monitor

Overview
The DJI High-Bright Remote Monitor is a versatile device designed for monitoring, recording, and playback. It features a 7-inch wide color gamut touchscreen display with a high-bright output of 1,500 nits. It also has the capability to output HDMI and SDI signals, making it compatible with various devices.

With features such as Mirror Control Mode, independent recording and playback, remote parameter setting and control, motion control, and customizable LUT, the DJI High-Bright Remote Monitor offers a comprehensive solution for professional filmmakers. It also provides focus and exposure assistance and allows for independent monitoring of HDMI input. Additionally, it can be used with other DJI accessories for remote control of camera functions and movements. (Note: Must be used with the DJI Ronin 4D Video Transmitter).

Summary
Screen Size: 7 Inch
Resolution: 1920 x 1200
Inputs:
HDMI
SDI
Outputs:
HDMI
SDI
NITs: 1500
Power Supply: NPF Battery
Recording: No

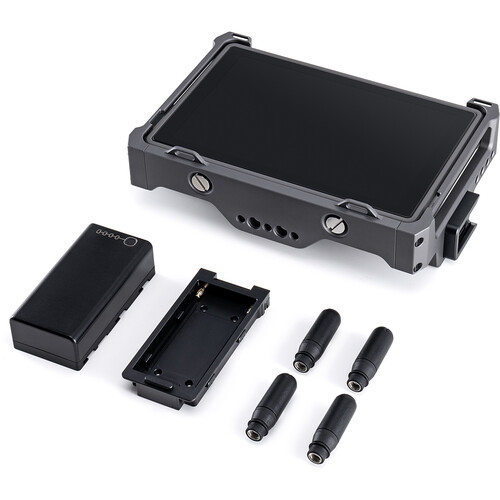

Included in box
1x High-Bright Remote Monitor
4x Ronin Video Transmission Antenna
1x Remote Monitor Tempered Glass Screen Protector
1x Remote Monitor Hood
1x Remote Monitor Cage
1x F970 Battery Adapter
1x WB37 Intelligent Battery
1x WB37 Battery Charging Hub (USB-C)
1x 1.5mm Ball-End Hex Key

About the DJI High-Bright Remote Monitor
The DJI High-Bright Remote Monitor is integrated with a wide color gamut display and image transmission receiver and can be used for monitoring, recording, and playback. When used with the DJI Remote Monitor Expansion Plate, outputs of HDMI and SDI signals can be achieved.

With a 7-inch wide color gamut, 1,500-nit high-bright touchscreen, and an integrated O3 Pro image transmission receiver, the DJI High-Bright Remote Monitor can be used for monitoring, recording, and playback. It also works seamlessly with the Hand Grips, DJI Master Wheels, DJI Force Mobile, and the new DJI Three-Channel Follow Focus to enable remote control of focus, gimbal movements, and camera functions. (Note: Must be used with the DJI Ronin 4D Video Transmitter).

Dimensions 216×58×166 mm (includes monitor cage)
Screen Size 7 inches (diagonal)
Max Brightness 1500 cd/m²
Screen Resolution 1920×1200
Refresh Rate 60Hz
Max Battery Life Approx. 2 hours* Measured at 50% screen brightness with DJI WB37 battery.
Operating Temperature 0° to 40° C (32° to 104° F)
Storage Temperature -20° C to 60° C (-4° to 140° F)
Power System DJI WB37 Battery/NP-F series Battery (requires NP-F battery adapter)
Remote Monitor Port 3.5mm Stereo Jack × 1
microSD Card Slot × 1* – This port is currently not available. Will support internal recording in a future firmware update.
HDMI Type-A Video Input Port × 1* – This port is currently not available. Will support HDMI 1.4 in a future firmware update.
Remote Monitor Expansion Plate High-Speed Port (female) × 1
Remote Monitor Accessory Expansion Port × 1
USB 3.1 Type-C Data Port × 1
Remote Monitor Expansion Port Remote Monitor Expansion High-Speed Port (male) × 1
HDMI 1.4 Type-A Video Output Port × 1
6-pin 1B DC-IN (DC 6.8-17.6 V) × 1
3G-SDI (Level A) BNC Video Output Port × 1

1,500-nit high-bright monitor
7-inch wide colour gamut touchscreen display
Output of HDMI and SDI signals
Mirror Control Mode
Independent recording and playback
Remote parameter setting, remote control
Motion control
Customisable LUT and independent LUT for monitoring
Focus assistance and exposure assistance
Independent monitoring of HDMI input
