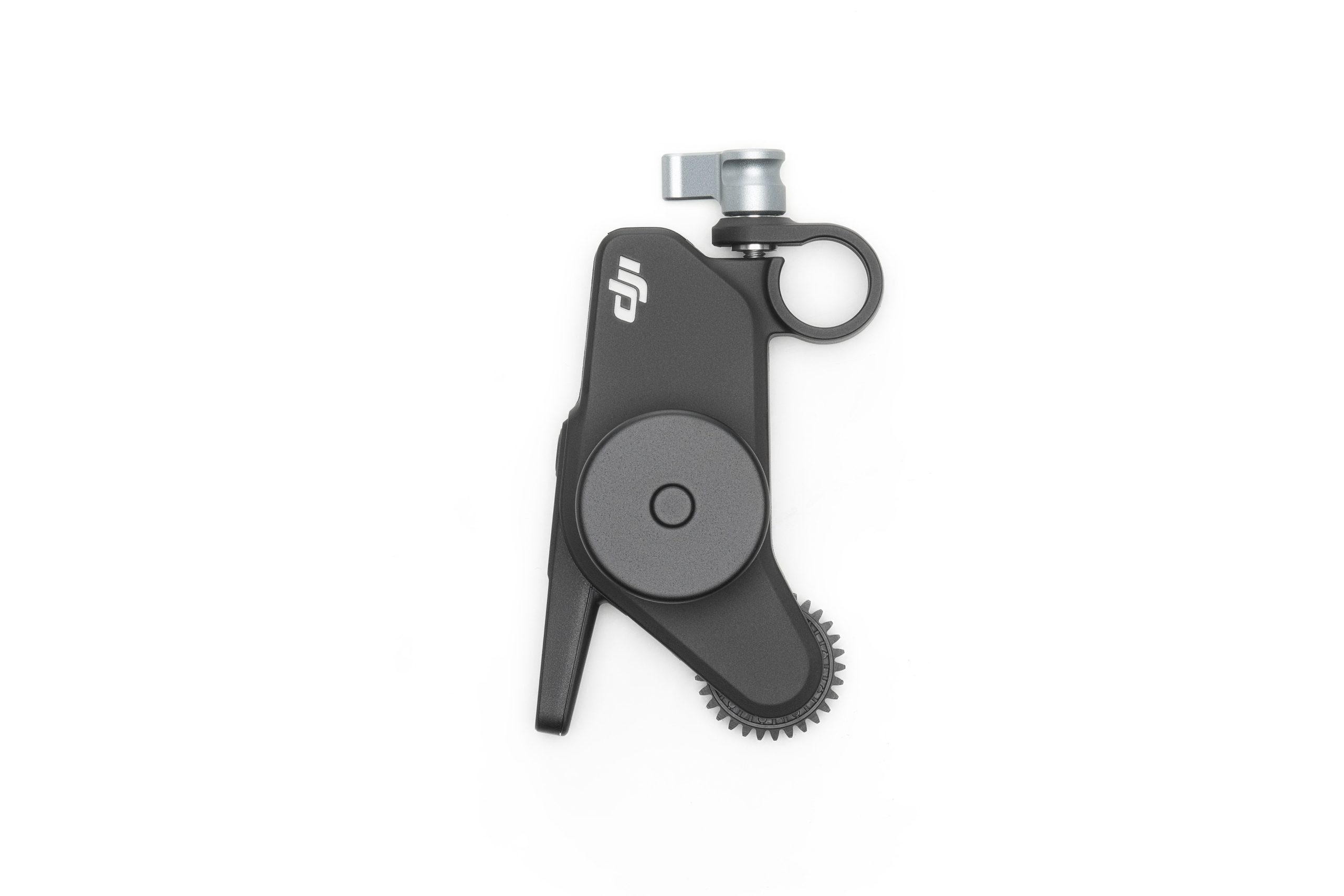

DJI Focus Pro Motor

OVERVIEW
The DJI Focus Pro Motor is a professional-grade tool that offers improved motor performance for precise control and versatile cinematic language opportunities. With its one-button linking feature, users can easily connect the motor to the Hand Unit, eliminating the need for manual linking and allowing for quicker startup and use.

Thanks to its 10ms low latency, the motor speed is 30% faster than the previous generation, resulting in a response time of just 10 milliseconds. This ensures a smooth and seamless operation, perfect for professionals who require quick and accurate focus adjustments.

The motor also offers a three-level adjustable torque, allowing users to match the focus gear ring tightness of different lenses. This feature ensures a smoother operation and eliminates any potential damage to the lens.

For added flexibility, the motor rotation direction can be adjusted according to different mounting positions. This makes the DJI Focus Pro Motor compatible with various setups and allows for more precise control over the focus of the camera.

Additionally, the motor is compatible with 15mm rods, making it more versatile in size and allowing for more convenient mounting. This feature makes the DJI Focus Pro Motor a must-have tool for professionals in the film and photography industry.

INCLUDED IN BOX

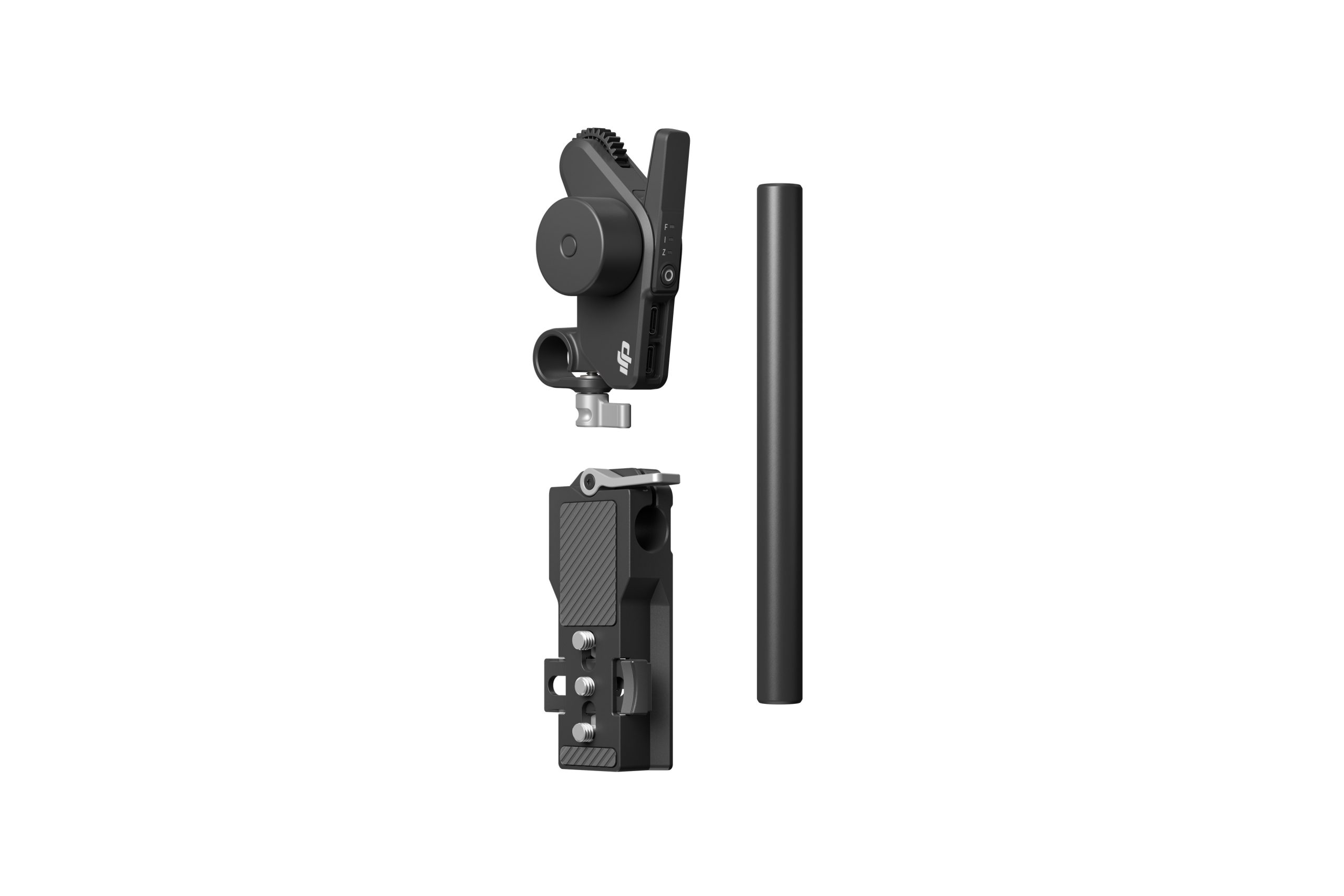

1 x Focus Pro Motor
1 x Motor Rod Mount Kit
1 x Focus Gear Strip
1 x Multi-Camera Control Cable (USB-C, 30 cm)
1 x FIZ Sticker
1 x 15mm Rod
2 x 10mm 1/4″-20 Screw

About The DJI Focus Pro Motor
Motor performance has significantly improved, offering more precise control for professionals and more versatile cinematic language opportunities.

One-Button Linking

It supports one-button linking with the Hand Unit, eliminating the manual linking process for quicker startup and use.

10ms Low Latency

The motor speed is approximately 30% faster than the previous generation, [6] with a response latency of just 10 milliseconds.

Three-Level Adjustable Torque

Motor torque can be adjusted to match the focus gear ring tightness of different lenses, ensuring a smoother operation.

Adjustable Rotation Direction

Motor rotation direction can be adjusted flexibly according to different mounting positions.

Compatible With 15mm Rods

More versatile in size for more convenient mounting.

2.4GHz Transmitter Power (EIRP) < 20 dBm (CE/SRRC/MIC) < 26 dBm (FCC) 2.4GHz Transmission Distance 160 m* 100 m** ‌* Measured under FCC standard in an unobstructed environment free of interference. ‌‌‌‌** Measured under CE/SRRC/MIC standards in an unobstructed environment free of interference." Mechanical Properties: ‌Dimensions Approx. 100×61×34 mm (L×W×H) ‌Weight Approx. 123 g (0.27 lbs) Rod Diameter 15 mm Output Gear Teeth 30 Output Gear Module 0.8" Performance: Max Torque 0.6 N·m (8 V) Max Speed 300 rpm (8 V)" Power Supply Voltage 6.6-17.2 V Stall Current 2 A, 8 V Free Current 60 mA, 8 V Operating Temperature -20° to 45° C (-4° to 113° F) Output Voltage 6.6-17.2 V Motor speed increased by 30%; compatible with 15mm universal rods; built-in RF antenna; latency as low as 10 milliseconds.
