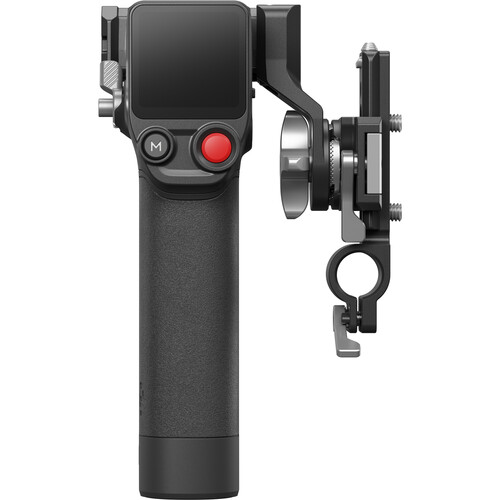

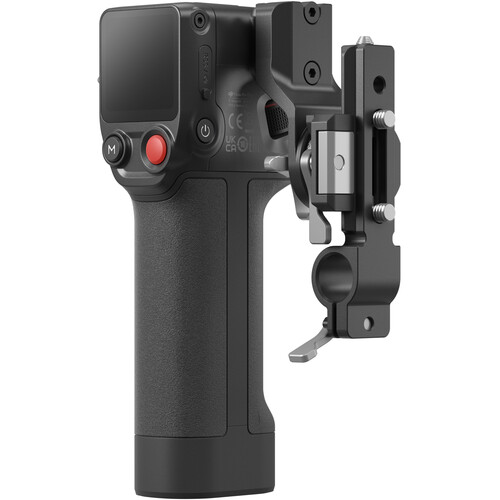

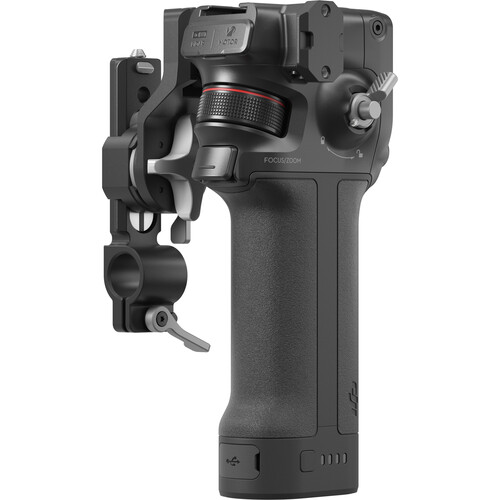

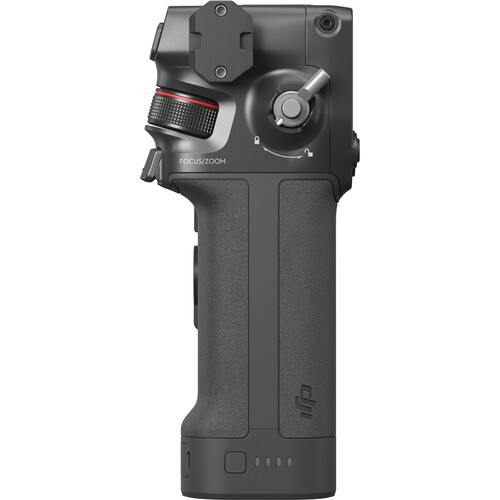

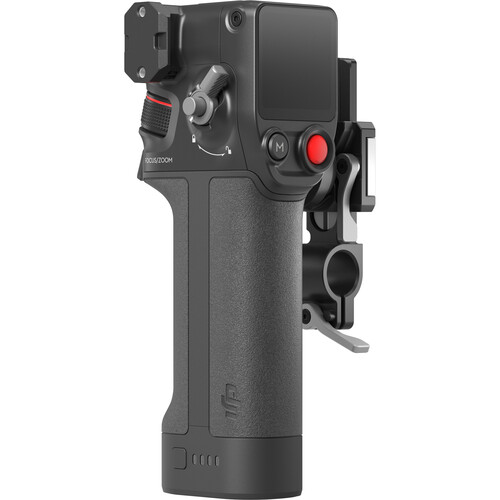

DJI Focus Pro Grip

OVERVIEW
The DJI Focus Pro Grip is a newly designed handheld device that offers a range of features to enhance your LiDAR focusing experience. With a 2.5-hour system power supply, intuitive screen operations, and the ability to store data for up to 15 lenses, this grip is perfect for handheld shooting without a Ronin stabilizer.

Equipped with a full-colour touchscreen, the Grip allows for easy adjustments of LiDAR and motor parameters, as well as providing a real-time view from the LiDARs perspective. This gives operators complete awareness during use, making it a highly efficient and convenient tool.

The DJI Ronin app, which can be connected to the Grip via Bluetooth, features built-in lens data that can be imported for up to 15 lenses. This means that the Grip can easily and accurately calibrate manual lenses, saving you time and effort.

With a 2.5-hour operating time, the Grip allows for extended use while shooting. It also has the ability to be used while charging through third-party PD fast-charging batteries, giving you even more flexibility and convenience. Plus, with Bluetooth connectivity, you can control your mirrorless camera wirelessly, making your filming experience even smoother.

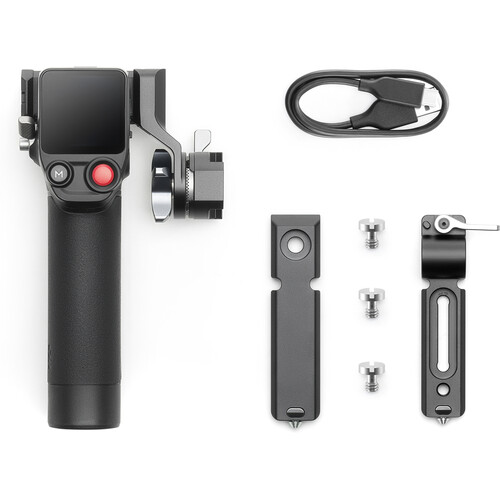

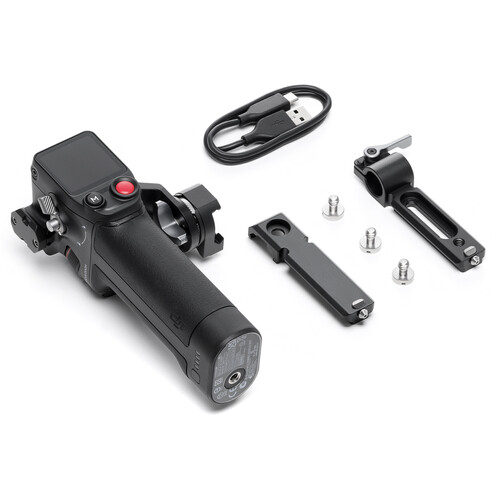

INCLUDED IN BOX
1 x Focus Pro Grip Screen
1 x BG21 Battery Grip
1 x NATO Adapter Mount
1 x Rod Adapter Slide Rail
1 x Horizontal Adapter Slide Rail
1 x USB-C Charging Cable (40 cm)
2 x M4 Screw
3 x 10mm 1/4″-20 Screw

About The DJI Focus Pro Grip
All-New Grip, All-Around Capability

The newly designed DJI Focus Pro Grip features a 2.5-hour system power supply, intuitive screen operations, auto-calibration and data storage for 15 lenses, Bluetooth start/stop recording, and handheld shooting capabilities, offering an exceptional LiDAR focusing experience, even without a Ronin stabilizer.

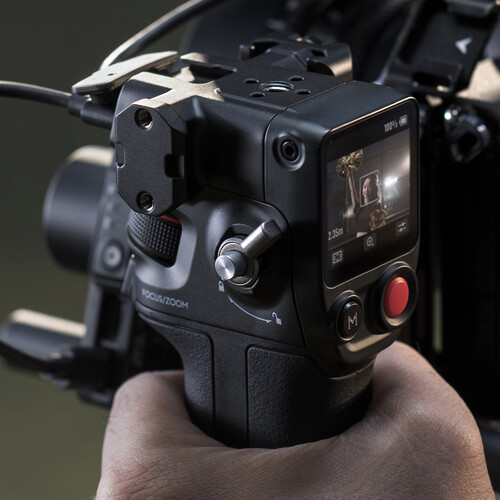

Touchscreen Parameter Adjustments, LiDAR View Synchronization

The Grip, equipped with a full-colour touchscreen, supports the adjustment of LiDAR and motor parameters and can present a real-time view from the LiDAR’s perspective, granting operators complete awareness during use.

Auto Calibration, Efficient and Convenient

The DJI Ronin app features built-in lens data that can be imported into the Focus Pro Motor via Bluetooth connection to the Grip. A single Motor can store data for up to 15 lenses.

Bluetooth Connectivity, Wireless Control

‌The Grip can directly connect to mirrorless cameras via Bluetooth for wireless start/stop recording. It can also pair with the DJI Ronin app over Bluetooth to complete the calibration of manual lenses.

2.5-Hour Operating Time, Use While Charging

The Grip supports a 2.5-hour power supply for both the LiDAR and focus motor. It also allows for continuous use while charging through third-party PD fast-charging batteries.

Operating Frequency 2.400-2.4835 GHz
Bluetooth Transmitter Power < 8 dBm Mechanical Properties Main Body Dimensions: Approx. 59×73×162 mm (L×W×H) Main Body Weight: Approx. 482 g (1.06 lbs) Mounting Method Flexible mounting on either left or right side of the cage via NATO port Screen 1.8-inch full-colour touchscreen Port USB-C Port (DJI Focus Pro LiDAR) USB-C Port (DJI Focus Pro Motor) USB-C Port (Camera Control Port) USB-C Port (Battery Charging Port) Operating Time ‌Approx. 2.5 hours Measured in a 25° C (77° F) environment while simultaneously powering the grip, LiDAR, and a focus motor, with AF continuously on, and paired with a manual lens." Charging Power Supports 18W PD fast charging Battery Model BHX711-3000-7.2V Power Supply Voltage 6.6-8.4 V Operating Temperature -20° to 45° C (-4° to 113° F) The grip is equipped with a magnetic damping dial and a 1.8-inch full-color touchscreen. When used with the DJI Focus Pro LiDAR, it enables autofocus for manual lenses
