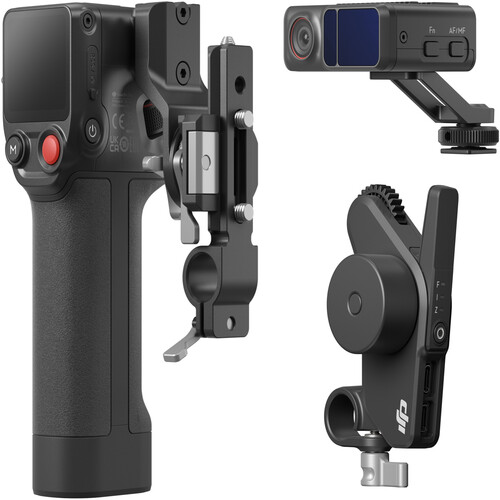

DJI Focus Pro Creator Combo

Overview
The latest LiDAR technology has significantly improved the focusing capabilities for human subjects, with a focus distance approximately three times that of the previous generation. This is made possible by the impressive 76,800 ranging points that the upgraded LiDAR boasts. This not only sharpens the detection of human subjects, but also includes enhanced AI recognition algorithms for more reliable recognition of both humans and vehicles. Even if the subject is momentarily obscured, the LiDAR can quickly regain focus. In addition, the AMF mode allows for human-machine collaborative focus control, where cinematographers can visually observe the focus status on a monitor and intuitively perceive the autofocus logic through tactile feedback.

The Focus Pro Hand Unit also features FIZ lens control with real-time, stepless damping adjustment, making it effortless for focus pullers to control lens FIZ. Cinematographers can also access the LiDAR Waveform focus assistance through a High-Bright Remote Monitor, providing supplementary information. The DJI Focus Pro is also compatible with various DJI products such as Ronin stabilizers, DJI Transmission, Ronin 4D, and Inspire 3, making it a robust AMF focusing solution for expanded scenarios. For a full list of compatibility, please refer to the provided link.

Included in box
1 x DJI Focus Pro LiDAR
1 x DJI Focus Pro Grip

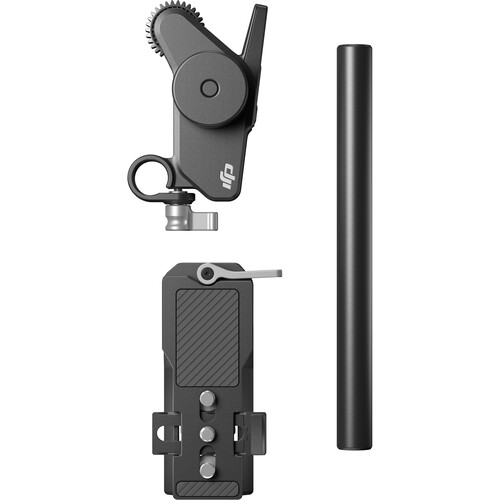

1 x DJI Focus Pro Motor
1 x DJI Focus Pro Carrying Case

About the DJI Focus Pro Creator Combo
For compatibilty, please see here.

20-Meter Subject Focusing, [1] 76,800 Ranging Points

‌LiDAR human-subject focus distance is approx. 3 times that of the previous generation. [2] The upgraded LiDAR boasts 76,800 ranging points, sharpening human-subject edge detection.

Built-in Camera, Enhanced AI Recognition Algorithms

More reliable recognition of human subjects and vehicles can be achieved. Even if the subject is momentarily obscured, the LiDAR can quickly regain focus.

AMF Mode, Human-Machine Collaborative Focus Control

‌In AMF mode, cinematographers can both visually observe the focus status on the monitor and intuitively perceive the autofocus logic through tactile feedback.

FIZ Lens Control, Magnetic Damping Tactile Feedback

The Focus Pro Hand Unit features real-time, stepless damping adjustment, and the Focus Pro Motor supports one-button linking with the Hand Unit. This allows focus pullers to effortlessly control lens FIZ.

LiDAR Waveform, Top-Down Focus Assistance View

Cinematographers can access the LiDAR Waveform focus assistance [3] through the High-Bright Remote Monitor. In addition, LiDAR Waveform offers supplementary information.

Compatibility With DJI PRO Ecosystem

DJI Focus Pro can work with Ronin stabilizers, DJI Transmission, Ronin 4D, Inspire 3, and more. This provides a robust AMF focusing solution for expanded scenarios.

1. Requires enabling the 2x zoom display function on the DJI Focus Pro Grip screen.

2. Compared with the DJI LiDAR Range Finder (RS). Data was measured in a controlled environment. Actual experience may vary depending on the environment, usage, and firmware version.

3. Requires the DJI Focus Pro LiDAR to DJI Transmission Cable Hub, as well as DJI Transmission (High-Bright Monitor Combo).

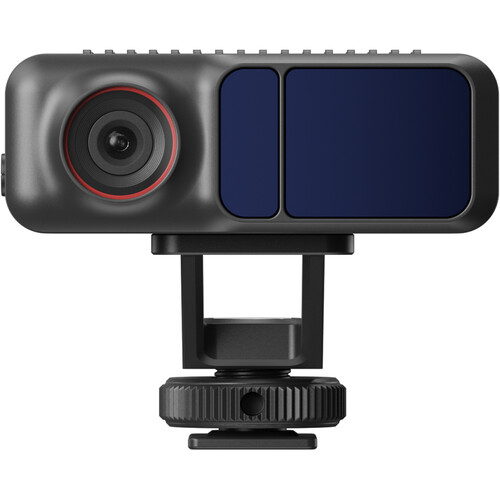

DJI Focus Pro LiDAR
Accessory Port Cold Shoe
1/4″-20 Threaded Hole
USB-C Firmware Update Port (Power/USB)
USB-C Data Port (Power/CVBS/CAN)
Image Sensor Resolution: 1920×1440
FOV:
‌ 57.4° (horizontal), 44.6° (vertical), 70.1° (diagonal)
Frame Rate: 30fps
Equivalent Focal Length: 30 mm
ToF Sensor Ranging Points: 76,800
Sensing Range: 0.5-20 m
FOV:
Wide-Angle Mode: 65° (horizontal), 40° (vertical), 76.1° (diagonal)
Telephoto Mode: 20° (horizontal), 20° (vertical), 28.3° (diagonal)
Frame Rate: 30fps
Equivalent Focal Length: 30 mm (wide-angle mode)
Ranging Accuracy: ±1% to 3% (affected by the distance)
Machine Learning Tracking Subject: Can recognize up to five subjects at the same time, and choose one to follow
Smart Object Identification: Human, vehicle
Focus Area: Flex Spot (activate focus lock by framing the subject and pressing the trigger; supports autofocus only, not ActiveTrack); Wide (when subject-locked on human, supports both autofocus and ActiveTrack*; when subject-locked on vehicle, supports autofocus only, not ActiveTrack)

* ActiveTrack is available only when used in conjunction with DJI RS 4 Pro or DJI RS 3 Pro.‌”
Electrical Properties ‌Power Consumption: Average approx. 6.3 W, max 6.8 W
Input Voltage: 6.6-17.2 V”
Operating Temperature -20° to 45° C (-4° to 113° F)
Mechanical Properties Main Body Dimensions: Approx. 68×25×57 mm (L×W×H)
Weight: Approx. 140 g (0.31 lbs)
Mounting Method and Position Can be mounted directly via cold shoe or using the 1/4″” threaded hole

It is recommended to mount the DJI Focus Pro LiDAR close to the camera’s optical axis.

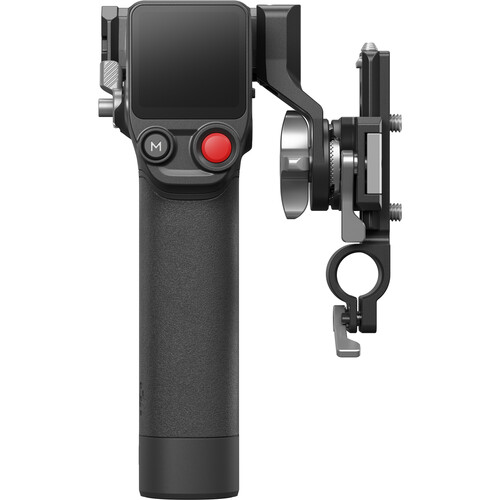

DJI Focus Pro Grip
Operating Frequency 2.400-2.4835 GHz
Bluetooth Transmitter Power < 8 dBm Mechanical Properties Main Body Dimensions: Approx. 59×73×162 mm (L×W×H) Main Body Weight: Approx. 482 g (1.06 lbs) Mounting Method Flexible mounting on either left or right side of the cage via NATO port Screen 1.8-inch full-color touchscreen Port USB-C Port (DJI Focus Pro LiDAR) USB-C Port (DJI Focus Pro Motor) USB-C Port (Camera Control Port) USB-C Port (Battery Charging Port) Operating Time ‌Approx. 2.5 hours Measured in a 25° C (77° F) environment while simultaneously powering the grip, LiDAR, and a focus motor, with AF continuously on, and paired with a manual lens. Charging Power Supports 18W PD fast charging Battery Model BHX711-3000-7.2V Power Supply Voltage 6.6-8.4 V Operating Temperature -20° to 45° C (-4° to 113° F) DJI Focus Pro Motor 2.4GHz Transmitter Power (EIRP) ‌< 20 dBm (CE/SRRC/MIC) < 26 dBm (FCC) 2.4GHz Transmission Distance 160 m* 100 m** ‌* Measured under FCC standard in an unobstructed environment free of interference. ‌‌‌‌** Measured under CE/SRRC/MIC standards in an unobstructed environment free of interference. Mechanical Properties ‌Dimensions: Approx. 100×61×34 mm (L×W×H) ‌ Weight: Approx. 123 g (0.27 lbs) Rod Diameter: 15 mm Output Gear Teeth: 30 Output Gear Module: 0.8 Performance Max Torque: 0.6 N·m (8 V) Max Speed: 300 rpm (8 V) Power Supply Voltage 6.6-17.2 V Stall Current 2 A, 8 V Free Current 60 mA, 8 V Operating Temperature -20° to 45° C (-4° to 113° F) Output Voltage 6.6-17.2 V
