DJI DL PZ 17-28mm T3.0 ASPH Lens

Overview
DJI has released their first cinema zoom lens, the DL PZ 17-28 mm T3.0 ASPH, which covers focal lengths from 17 mm to 28 mm. This lens is perfect for professional shooting as it provides a calibration-free focusing experience. Once mounted, the lens is ready to deliver accurate focusing and zoom without the need for calibration. The lens also boasts ultra-high resolution from center to edge, meeting the requirements of 8K sensors for superior image quality. With a minimum object distance of 0.19 m, this lens can handle most close-up shots at ultra wide angles. Additionally, the lens is made from a lightweight aluminium magnesium alloy, weighing only 520 g, while still maintaining stiffness and strength.

The DL PZ 17-28 mm T3.0 ASPH also features a built-in servo zoom motor, eliminating the need for an external focus motor. This non-detachable motor is both lightweight and portable. The lens tube moves within 5 mm while zooming, making it possible to zoom without the need for re-balancing. When used with the Ronin 4D, re-balancing is not required after zooming. With its impressive features, this lens provides a high-quality, hassle-free shooting experience for professionals.

Summary
Focal Length: 17-28mm
Max Aperture: T3.0
Lens Mount: DL Mount
Filter Thread: 67mm
Included in box
1 x Lens Front Cap
1 x Lens Hood
1 x Lens
1 x Lens Rear Cap

About the DJI DL PZ 17-28mm T3.0 ASPH Lens
Calibration-Free Focusing Experience

DJI’s first cinema zoom lens DL PZ 17-28 mm T3.0 ASPH covers focal lengths from ultra-wide-angle 17 mm to wide-angle 28 mm to meet the need of professional shooting. Once mounted, the lens is ready to deliver accurate focusing and zoom without calibration.

High Resolution From Center to Edge

Ultra-high resolution from center to edge that meets the requirement of 8K sensors for image quality. Delivers sharp imagery and outstanding optical performance.

0.19m Minimum Object Distance

A minimum object distance of 0.19 m can meet the needs of most close-up shots at ultra wide angles.

520g Aluminium Magnesium Alloy Body

The lens design using aluminium magnesium alloy effectively reduces weight to a ultra-light 520 g, while ensuring stiffness and strength.

Built-in Servo Zoom Motor

With a servo zoom motor built in, the lens can zoom without having to mount an external focus motor. The non-detachable motor is light and portable.

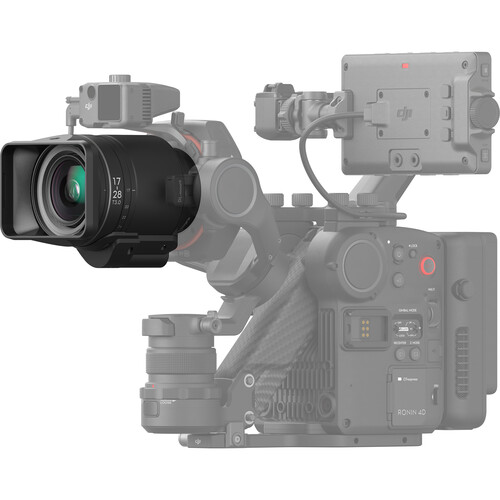

Zoom without Re-balancing

The lens tube moves within 5 mm while zooming. When using with Ronin 4D, re-balancing is not required after zooming.

Imager Size Full frame (36×24 mm)
Focal Length 17-28 mm
MOD (From Object to Image Plane) 17 mm: 0.19 m
28 mm: 0.26 m
Aperture Range T3.0 to T22
Filter Diameter Φ 67 mm
Lens Mount DL mount
Weight (lens hood included) Approx. 520 g
Operating Temperature -10° to 55° C (14° to 131° F)
