DJI Action 2 Front Touchscreen Module

Overview
The DJI Action 2 module is perfect for vlogging and taking selfies, thanks to its OLED front screen, microSD card slot, and three microphones. It can be easily attached to the Camera Unit with its magnetic lock, and when connected, it offers a longer battery life of up to 160 minutes. The module also features dual OLED touchscreens, a 4-mic Matrix Stereo, and supports Audio Zoom and Directional Audio, making it a versatile tool for content creators. However, it is important to note that the Front Touchscreen Module is not waterproof or dustproof and should be used with the Waterproof Case for underwater activities.

Summary
Accessory Type: Touchscreens
Included in box
1x Front Touchscreen Module

About the DJI Action 2 Front Touchscreen Module

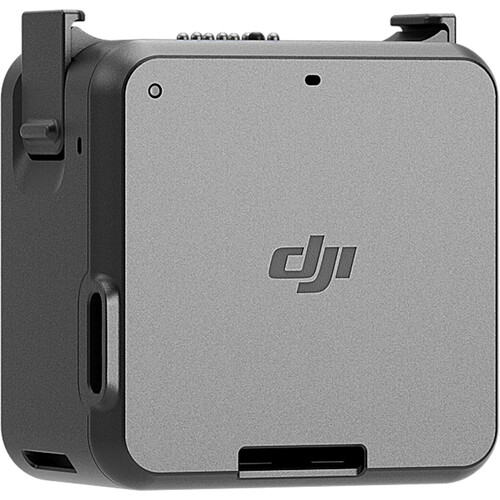

The module includes an OLED front screen, a microSD card slot, and three microphones, making it perfect for vlogging and taking selfies. With the magnetic lock, it can be attached to the Camera Unit. When connected, DJI Action 2’s battery life increases to a maximum of 160 minutes, offers dual OLED touchscreens and a 4-mic Matrix Stereo, supports Audio Zoom and Directional Audio, and can be used with an external microphone.

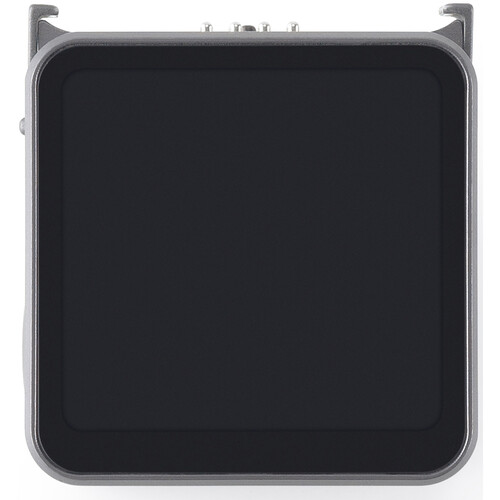

When connected, dual OLED touchscreens mean you can flexibly switch between screens and effortlessly take perfect selfies.

Note: The Front Touchscreen Module is not waterproof or dustproof and should be used with the Waterproof Case for underwater activities.

Dimensions 39×41.6×24.6 mm
Waterproof Not waterproof without Waterproof Case, 60 m with Waterproof Case
Number of Microphones 3
Weight 64 g
Touchscreen 1.76 inches 350 ppi
500±50 cd/m² 446×424
Battery Type LiPo 2S
Capacity 1300 mAh
Energy 5 Wh
Voltage 3.85 V
Operating Temperature 0° to 40° C (32° to 104° F)
Charging Temperature 5° to 60° C (41° to 140° F)
Operating Time Camera Unit + Front Touchscreen Module: 160 minutes
Tested in a laboratory environment while recording 1080p/30fps (Power Reserve) video with electronic image stabilisation disabled
This figure should be used for reference only
Charging Time Camera Unit + Front Touchscreen Module: 90 minutes
Tested in a laboratory environment when using a 5V/2A USB adapter
