Deity SRD Mini

Overview
Active SplitterThe SRD-Mini features an active splitter that also can supply power to external antenna circuitry. Each side of the distro (A / B) can have its external power toggled on or off independently. Above each toggle switch is an LED to indicate if the incoming signal is overloading the RF amp in the SRD-Mini.The SRD-Mini supports both passive and active antennas.

Industry Standard ConnectorsThe SRD-Mini ultitized connectors that are widely used throught the sound community. Two 50 Ohm BNC ports act as the A/B inputs while eight 50 Ohm SMA outputs split the incoming signal.( 1A x 4A / 1B x 4B.)The operational range of the SRD-Mini is 470MHz ~ 1GHz. This allows it to operate anywhere in the world, and with nearly any UHF wireless microphone system you may already own.

Included in box
SRD-Mini
Warranty QR Code
Manual QR Code
Deity Stickers

About the Deity SRD Mini
Introducing the SRD-Mini, the ultimate portable RF distributor tailored for location sound mixers operating out of a sound bag setup. This cutting-edge device ensures seamless connectivity and superior performance in demanding field conditions.

The SRD-Mini features an active splitter that corrects for line loss, ensuring your RF signals remain strong. With built-in RF overload protection and warning LED lights, you’ll always be alerted to any potential signal issues, keeping your setup safe and efficient.

The SRD-Mini’s 2×8 splitter design supports up to +16 wireless channels and provides exceptional flexibility for complex sound setups. Its ultra-wide spectrum covers a frequency range of 470 to 960 MHz, guaranteeing compatibility with a wide array of wireless brands. Whether you’re on a film set, a live event, or any location requiring pristine wireless signal quality, the SRD-Mini delivers.

Furthermore, the SRD-Mini offers multiple power input options, including a Hirose-style 4-pin power input and USB-C. This ensures you can stay powered up no matter the circumstances, making it a versatile addition to your wireless equipment.

Compact, reliable, and packed with features to enhance your wireless ecosystem experience, the SRD-Mini is your go-to solution in the field.

Active Splitter

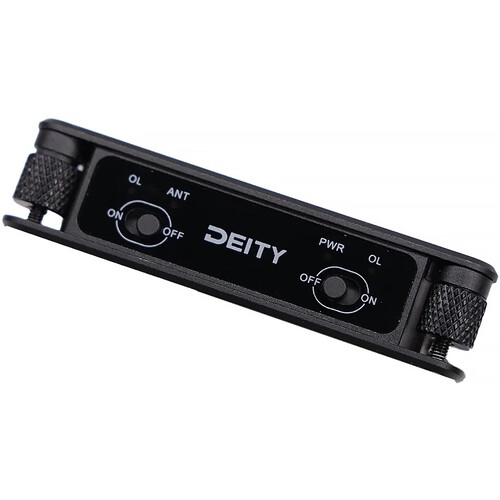

The SRD-Mini features an active splitter that also can supply power to external antenna circuitry. Each side of the distro (A / B) can have it’s external power toggled on or off independently. Above each toggle switch is an LED to indicate if the incoming signal is overloading the RF amp in the SRD-Mini.
The SRD-Mini supports both passive and active antennas.

Industry Standard Connectors

The SRD-Mini ultitized connectors that are widely used throught the sound community. Two 50 Ohm BNC ports act as the A/B inputs while eight 50 Ohm SMA outputs split the incoming signal.( 1A x 4A / 1B x 4B.)
The operational range of the SRD-Mini is 470MHz ~ 1GHz. This allows it to operate anywhere in the world, and with nearly any UHF wireless microphone system you may already own.

Multiple Powering Options

The SRD-Mini features the our Regional Power™ System, allowing it to be powered from the SPD-Mini’s pogo pins for a cable-less power solution.
But it also has traditional power inputs like a 4-Pin Hirose-compatible power input and USB-C.

Professional connections

We have created a catalogue of RF cables for any connection.

Frequency Range 470 MHz ~ 1 GHz
Gain +3 dB ~ +9 dB
Port Isolation >20 dB
Input Impedance 50Ω
Output Impedance 50Ω
Front-End Max Input Signal +13 dBm
Overload Indication 0 dBm
Noise Figure < 1.5 dB Working Voltage USB-C: 5V DC HRS4: 12-16.8V Operating Current Consumption < 160 mA (HRS4 Input) Material Aluminum Alloy RF Input Port BNC RF Output Port SMA Size 115.5 * 78 * 20.8 mm Weight 185.5 g
