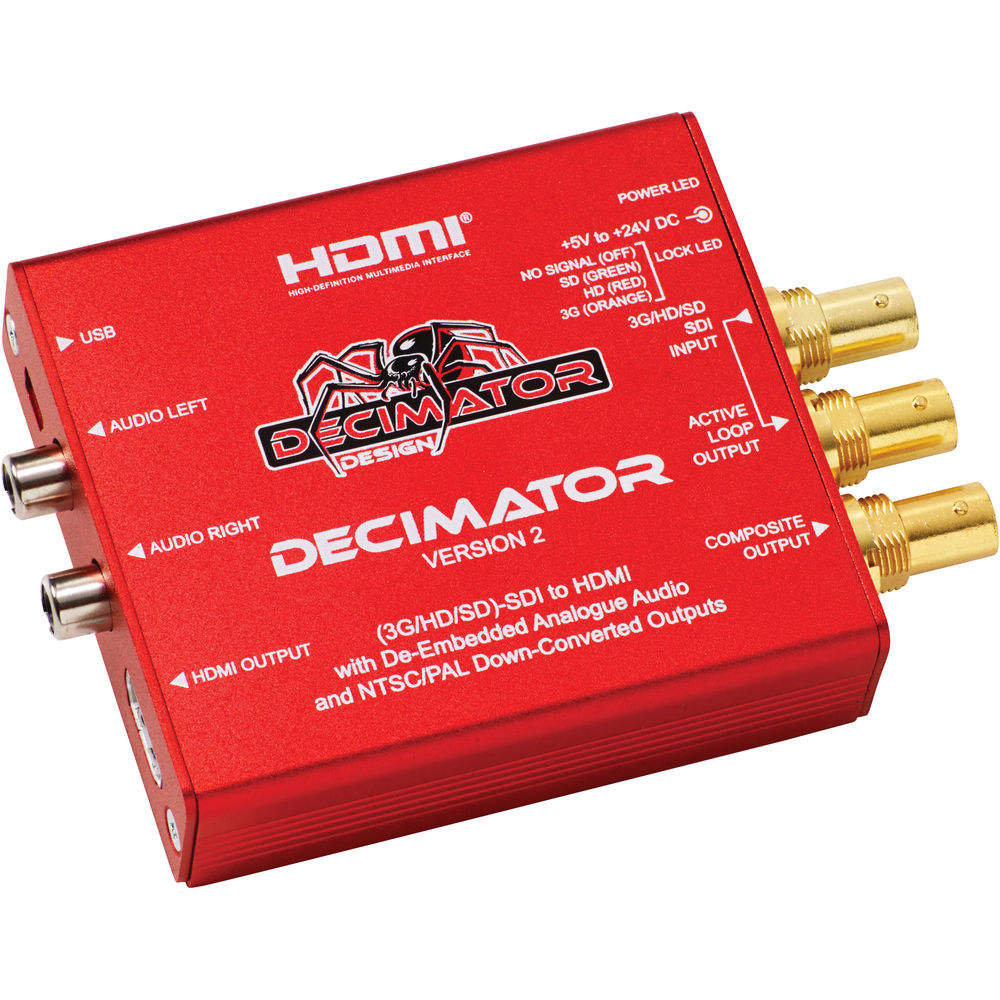

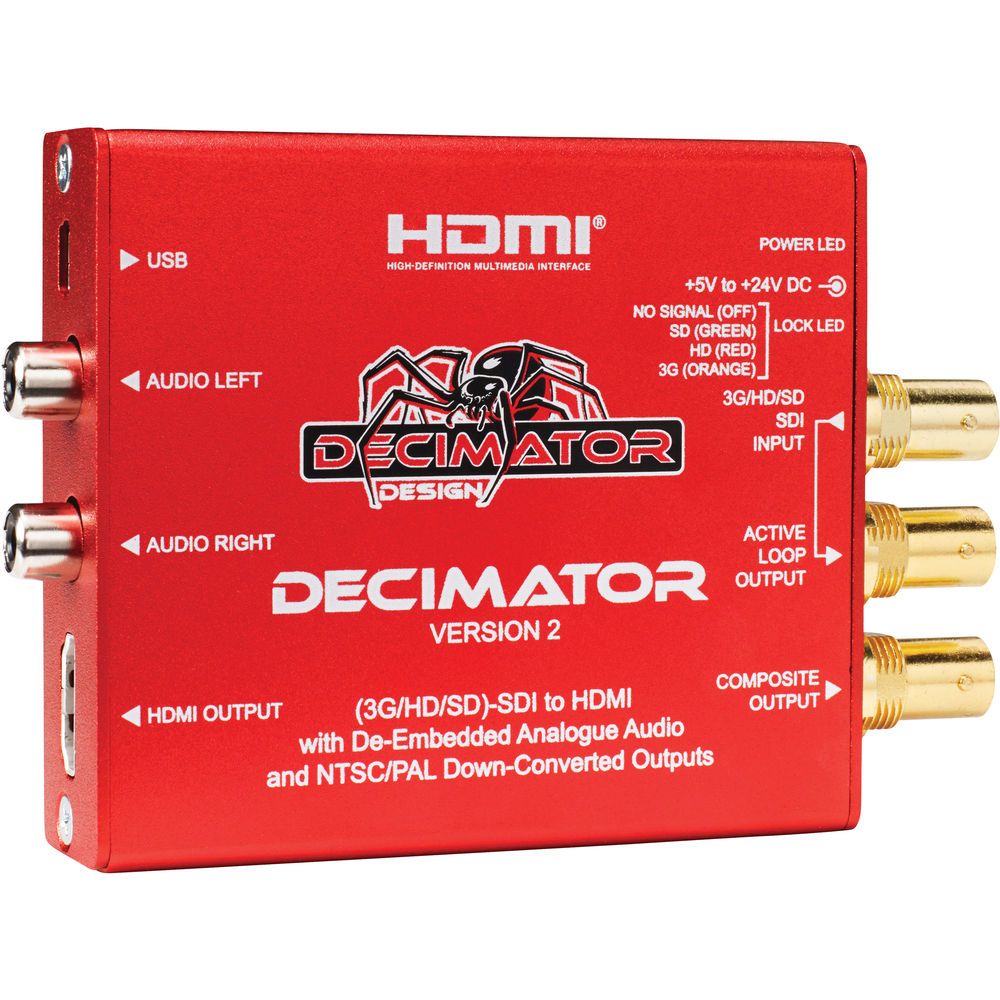

Decimator Design Decimator 2 (3G/HD/SD) -SDI to NTSC/PAL Composite Down Converter with HDMI Ouput redbyte_decimator_2 / DD-DEC-2. The Decimator 2 is a miniature (3G/HD/SD)-SDI converter to both HDMI and NTSC/PAL with simultaneous scaling on both outputs and De-embedded Analogue Audio
Firmware Upgrade Available
As of April 2016 there is a Version 2.0.7 USB Control Panel Firmware Upgrade which adds UCP support for Apple OS El Capitan. To download this update, please visit the Decimator downloads page. (opens in a new tab).
INCLUDED IN BOX
The following is also included with the unit
- Power Supply
- HDMI Cable
- USB Cable
- Mounting Bracket
- 3 year Warranty
About The Decimator Design Decimator 2
The Decimator 2 is a miniature (3G/HD/SD)-SDI converter to both HDMI and NTSC/PAL with simultaneous scaling on both outputs and De-embedded Analogue Audio
Firmware Upgrade Available
As of April 2016 there is a Version 2.0.7 USB Control Panel Firmware Upgrade which adds UCP support for Apple OS El Capitan. To download this update, please visit the
- Auto detects 3G, HD or SD (26 Formats in total) and can handle switching of synchronous sources
HDMI output
- – The input is passed unscaled
De-Embedded Analogue Audio is output on 2 x RCA connectors at -10dBu = -20dBFS.
- Down-converted Composite output
- – NTSC or PAL is selectable for 3G/HD inputs
- – SD will be passed unchanged.
- – Low latency 3G/HD to SD Down-conversion with ARC (Aspect Ratio Conversion) of either:
- i) 16:9 to 16:9 Anamorphic
- ii) 16:9 to 4:3 Letterbox
- iii) 16:9 to 4:3 Centre Cut (Crop to 4:3)
- – Full 10-bit data path and multipoint interpolation
- – 16 times over-sampling for Composite Output
- 3G/HD/SD-SDI Active Loop-Through Output
- External Dipswitch Configuration
- USB port for control and updates
- Locking DC Power Socket
