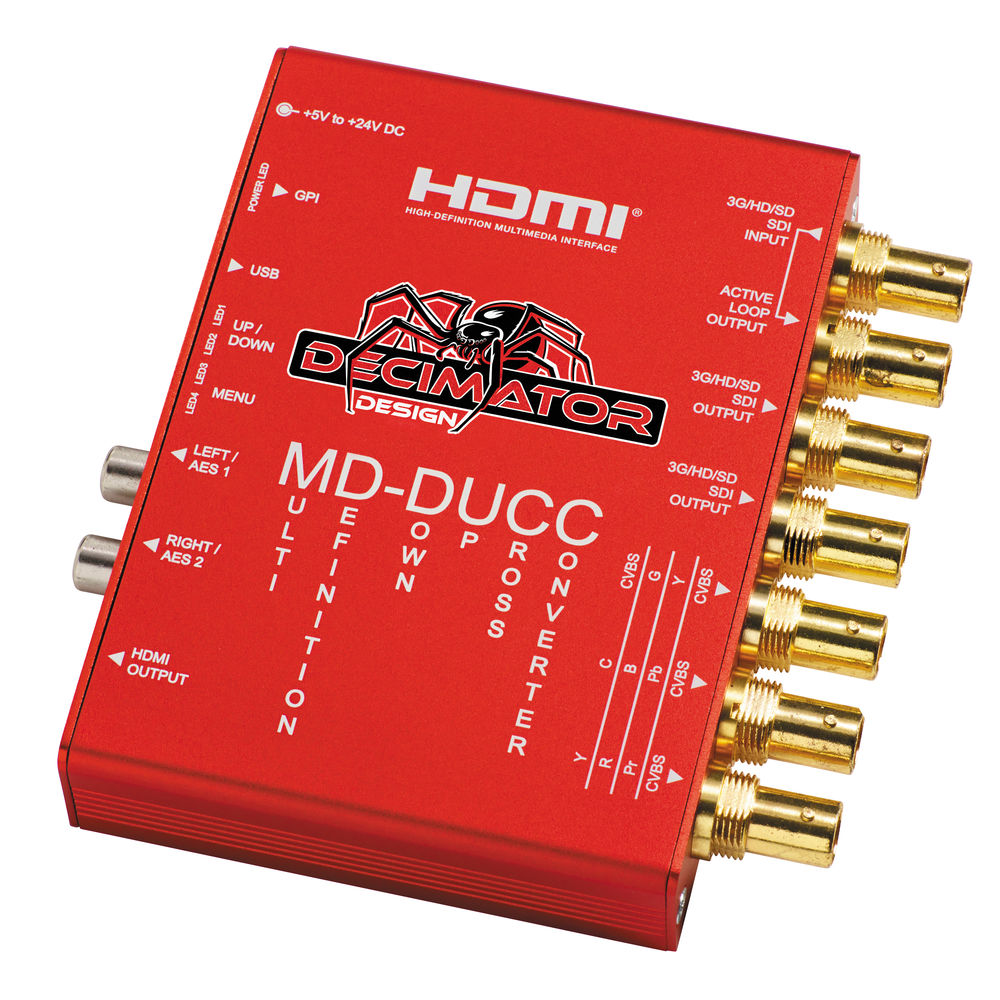

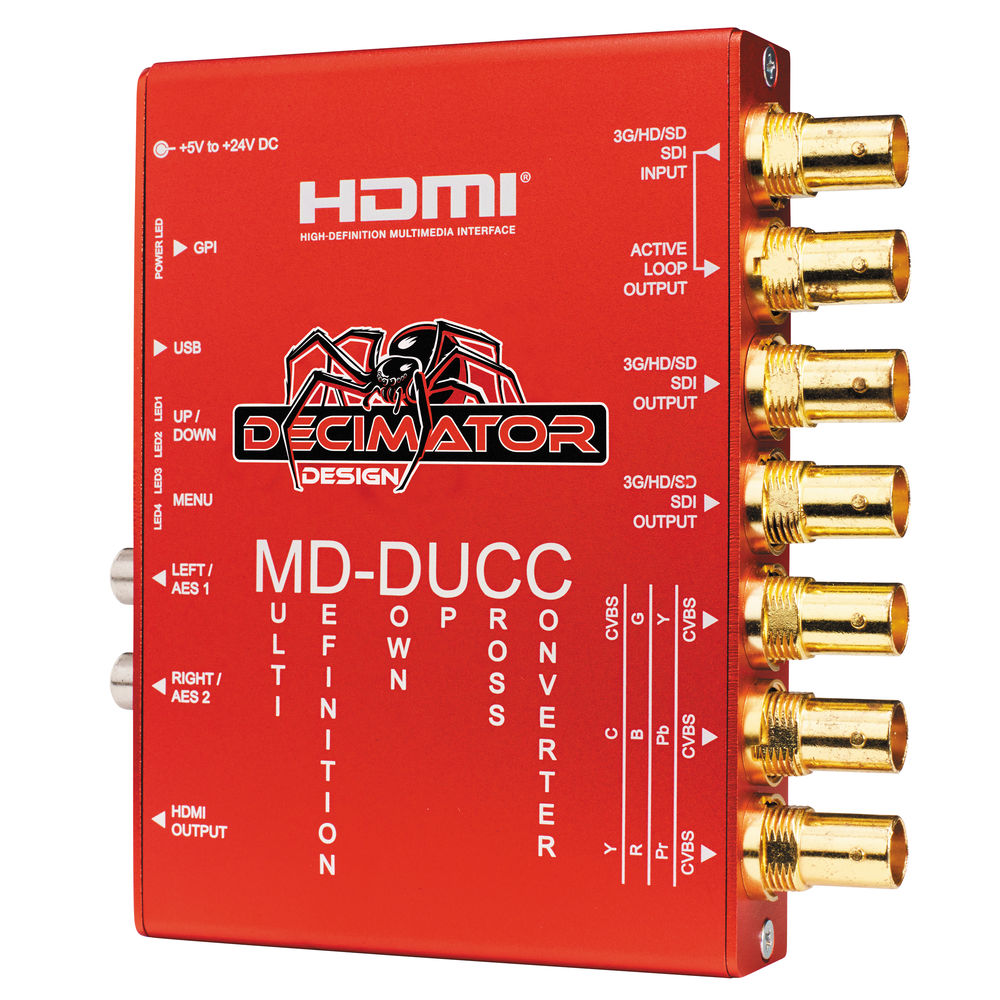

Decimator Design DD-DUCC Cross Converter

RedByte Design Decimator Multi-Definition Up Down Cross Converter (3G/HD/SD)-SDI to (3G/HD/SD)-SDI, HDMI and Analogue Video with 2 x AES/EBU and 2 x Analogue Audio Outputs.

• Auto detects 3G, HD or SD (26 Formats in total)
• Full 10-bit data path and multipoint interpolation
• Professional motion-adaptive de-interlacing
• True Down Up Cross conversion, allowing the conversion between any of the supported formats. Simply select the output format you require, no matter what the input format is
• Complete 16:9, 14:9 and 4:3 Aspect ratio conversion support, with individual selection for HD to HD, HD to SD, SD to HD and SD to SD conversions

Full 16-Channel Audio metering with:

• Any of the 4 audio groups individually selectable
• Vertical or Horizontal Bars
• AES, VU, Extended VU, BBC, EBU, DIN and NORDIC Scales
• Bar & Float, Bar only or Float only
• Transparency adjustment
• Separate Bar and Float Ballistics control
• Adjustable Reference level
• Red, Yellow and Green Range adjustment
• Bar thickness adjustment
• Margin adjustment

Adjustable Graticules Generator with:

• Separate enables for Safe Action, Safe Title and Centre Cross
• Adjustable position for either Safe Action or Safe Title
• Adjustable colours for Safe Action, Safe Title and Centre Cross

Text Overlays with:

• Adjustable Foreground and Background colours
• Adjustable 16 character text
• Current input format status

• HDMI output

Selectable analog video from:

• 3 x CVBS / YPbPr / RGB / CVBS & YC
• 2 x (3G/HD/SD)-SDI 10-bit outputs with audio from input automatically delayed and passed
• GPI on RJ-45 for Tallies
• 3G/HD/SD-SDI Active Loop-Through Output
• De-Embedded audio can be output on 2 x RCA connectors as either AES or Analogue with adjustable analogue audio level
• Buttons and LEDs for basic configuration
• USB port for control and firmware updates
• Locking DC Power Socket

Firmware Upgrade Available

As of April 2016 there is a Version 2.0.7 USB Control Panel Firmware Upgrade which adds UCP support for Apple OS El Capitan. The upgrade also adds the following features to this cross converter:

• On-screen menu to assist with changing settings when using the buttons
• 3G level B support on the input and output, allowing conversion between A&B
• Horizontal and vertical image flipping via the built in scaler
• Custom UMD position and size
• Improved Font

To download this update, please visit the (opens in a new tab).
