The TLM-170KR is a rack mount 17-inch 4K UHD LCD monitor which comes with an UHD 3840 x 2160px IPS panel. The panel has a 178 degrees wide viewing angle and a brightness of 300 cd/m2 and 1000:1 contrast ratio. The field monitor features the 12G-SDI and HDMI 2.0 inputs with loop-through outputs, supporting up to DCI 4K and Ultra HD signals on both input and output.
The TLM-170K series have a variety of professional and helpful monitoring features, including waveform, vector scope, focus peaking, false colour, histogram, peaking, zoom, screen markers, image flip, and more. Moreover, it also supports HDR for HLG and SMPTE 2084, and the presets of colour space include Rec 709 and DCI P3. The TLM-170K series are ideal for broadcast and live production applications.
Supports DCI P3 colour space 4K/60…
- 1 x TLM-170KR product
- 1 x AD Switch DC 12V
- 1 x Monitor Stand
- 2 x Velcro
About The Datavideo TLM-170KR Production Monitor

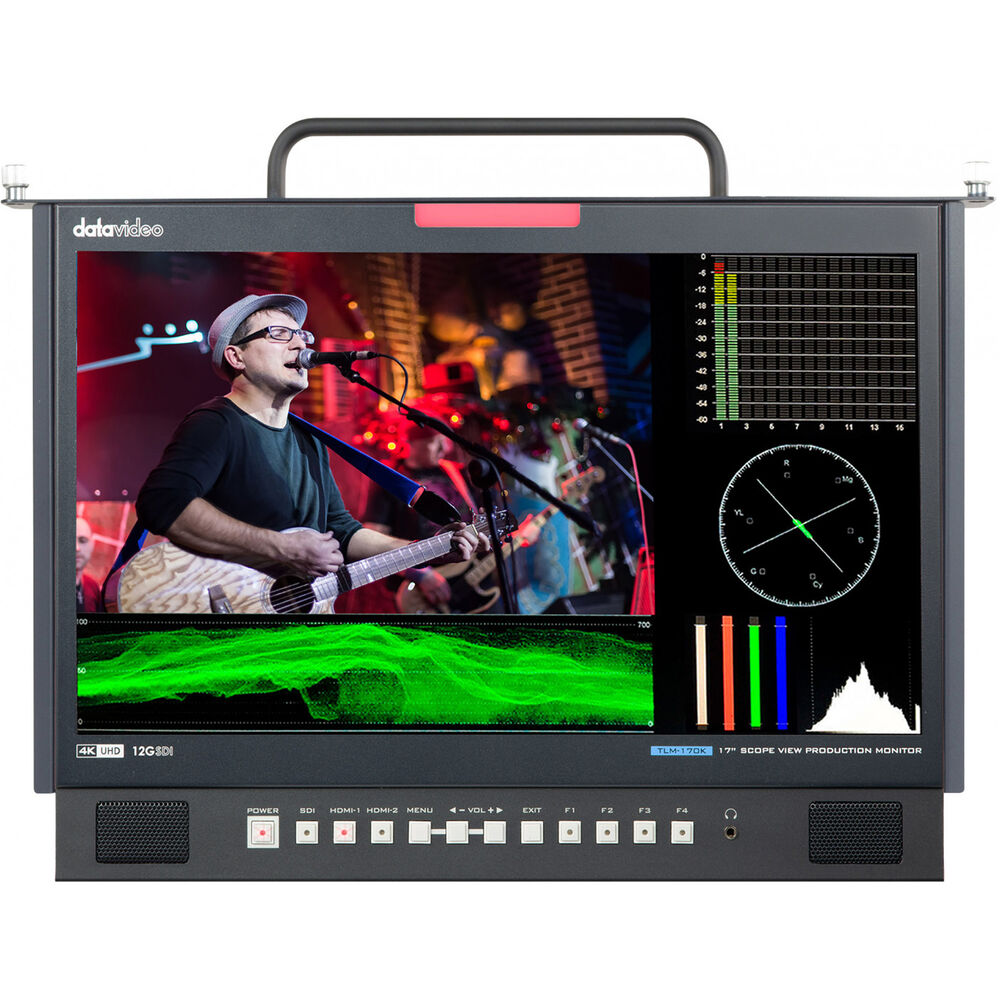

TLM-170KR 17” ScopeView Production Monitor-Rack MountThe TLM-170KR is a rack mount 17-inch 4K UHD LCD monitor which comes with an UHD 3840 x 2160px IPS panel. The panel has a 178 degrees wide viewing angle and a brightness of 300 cd/m2 and 1000:1 contrast ratio. The field monitor features the 12G-SDI and HDMI 2.0 inputs with loop-through outputs, supporting up to DCI 4K and Ultra HD signals on both input and output.
The TLM-170K series have a variety of professional and helpful monitoring features, including waveform, vector scope, focus peaking, false colour, histogram, peaking, zoom, screen markers, image flip, and more. Moreover, it also supports HDR for HLG and SMPTE 2084, and the presets of colour space include Rec 709 and DCI P3. The TLM-170K series are ideal for broadcast and live production applications.
Supports DCI P3 colour space 4K/60p and UHD 4K/60p video input and output
Spectacular 4K Resolution High Brightness and Contrast
The TLM-170KR series apply superior Ultra HD 3840 x 2160px IPS panel. The high brightness and high contrast panel provides 8 million pixels resolution which is four times the details than Full HD panel.
The monitor is ideal for presenting 4K HDR (High Dynamic Range) content, revealing the ultimate in detail and clarity for stunning images.
Supports Multiple Input and Output Configurations
1 x 12G-SDI, 2 x HDMI (HDMI 2.0) inputs;
1 x 12G-SDI loop-through, 1 x HDMI (HDMI 2.0) loop-through
Various Built-In Functions
Support column (YRGB peak), time code, waveform, vector scope, audio vector, focus peaking, zoom, pixel to pixel, exposure, histogram, image flip, camera log, HDR / SDR, and more.
Tally Light
Tally light included. Best use for live production.
- 17-inch ScopeView Production Monitor
- Supports DCI P3 colour space 4K/60p and UHD 4K/60p video input and output
- Supports Multiple Input and Output Configurations
- 1x 12G-SDI, 2x HDMI (HDMI 2.0) inputs
- 1x 12G-SDI loop-through, 1x HDMI (HDMI 2.0) loop-through
- Supports column (YRGB peak), time code, waveform, vector scope, audio vector, focus peaking, zoom, pixel to pixel, exposure, histogram, image flip, camera log, HDR / SDR, and more
- Tally light included. Best use for live production
