Datavideo TLM-170FM Pull Out Production Monitor

Overview
The 17-inch ScopeView Production Monitor is a versatile tool that supports DCI P3 colour space, 4K/60p and UHD 4K/60p video input and output. It offers multiple input and output configurations, including 1x 12G-SDI and 2x HDMI inputs, as well as 1x 12G-SDI and 1x HDMI loop-through. This monitor is perfect for live production, with features such as column (YRGB peak), time code, waveform, vector scope, audio vector, focus peaking, and more.

The TLM-170FM is a pull-out 17-inch 4K UHD LCD monitor with a Full HD 1920 x 1080px IPS panel. It has a wide viewing angle of 178 degrees, a brightness of 300 cd/m2, and a contrast ratio of 700:1. This monitor also supports DCI P3 colour space and features various professional monitoring tools, including waveform, vector scope, focus peaking, and more. It is ideal for broadcast and live production applications, with support for HDR and presets for colour space. Additionally, it comes with a tally light for easy use during live production.

Summary
Screen Size: 17 Inch
Resolution: 1920 x 1080
Inputs: HDMI 2.0
Included in box
1 x TLM-170FM product
1 x AD Switch DC 12V
1 x Monitor Stand
2 x Velcro

About the Datavideo TLM-170FM Pull Out Production Monitor
TLM-170FM 17” ScopeView Production Monitor-Pull-Out

The TLM-170FM is a pull-out 17-inch 4K UHD LCD monitor which includes a Full HD 1920 x 1080px IPS panel. The panel has a 178 degrees wide viewing angle and a brightness of 300 cd/m2 and 700:1 contrast ratio. The field monitor features the 12G-SDI and HDMI 2.0 inputs with loop-through outputs, supporting up to DCI 4K and Ultra HD signals on both input and output.

The TLM-170F series have a variety of professional and helpful monitoring features, including waveform, vector scope, focus peaking, false colour, histogram, peaking, zoom, screen markers, image flip, and more. Moreover, it also supports HDR for HLG and SMPTE 2084, and the presets of colour space include Rec 709 and DCI P3. The TLM-170F series are ideal for broadcast and live production applications.

17.3″ 4K UHD Pull-Out Monitor

Supports DCI P3 colour space 4K/60p and UHD 4K/60p video input and output

Rich and Natural Colour High Brightness and Contrast

The TLM-170FM series apply superior Full HD 1920 x 1080px IPS panel. The high brightness and high contrast panel provides rich colour, revealing subtle detail in bright highlights and dark shadow.

The monitor is ideal for presenting 4K HDR (High Dynamic Range) content, revealing the ultimate in detail and clarity for stunning images.

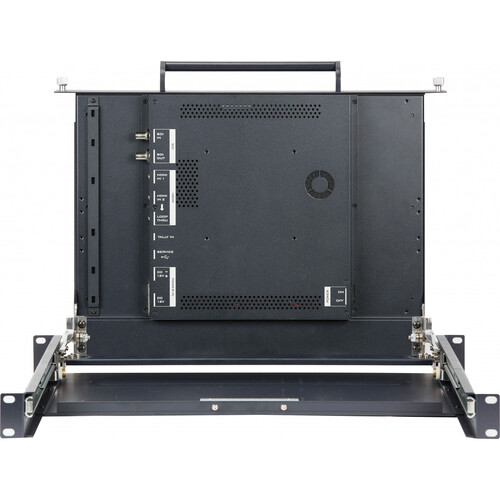

Supports Multiple Input and Output Configurations

1 x 12G-SDI, 2 x HDMI (HDMI 2.0) inputs;
1 x 12G-SDI loop-through, 1 x HDMI (HDMI 2.0) loop-through

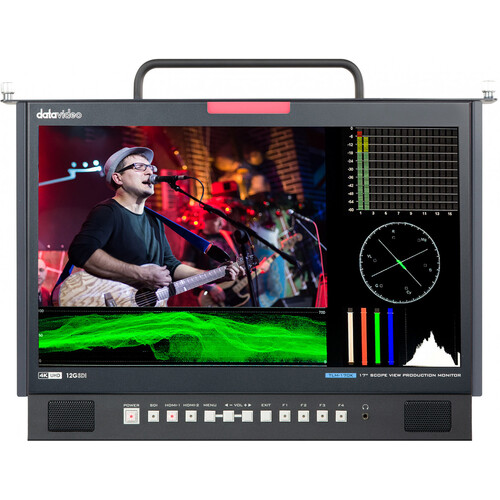

Various Built-In Functions

Support column (YRGB peak), time code, waveform, vector scope, audio vector, focus peaking, zoom, pixel to pixel, exposure, histogram, image flip, camera log, HDR / SDR, and more.

Tally Light

Tally light included. Best use for live production.

Screen 17.3″ LED Backlit
Chassis Pull-Out
Resolution 1920×1080
Viewing Angle (H) +89/-89°
(V) +89/-89°
Luminance/Contrast 300cd/m²
700:1
Video Inputs 1 x 12G SDI
2 x HDMI (2.0)
Loop Through 1 x 12G SDI
1 x HDMI (2.0)
Supported Input Resolutions SDI: 4096x2160p (23.98/24/25/29.97/30/50/59.94/60)
3840x2160p (23.98/24/25/29.97/30/50/59.94/60)
4096x2160Psf (23.98/24/25/29.97/30)
3840x2160Psf (23.98/24/25/29.97/30)
1920x1080p (23.98/24/25/29.97/30/50/59.94/60)
1920x1080i (50/59.94/60)
1920x1080Psf (23.98/24/25/29.97/30)
1280×720p (23.98/24/25/29.97/30/50/59.94/60)
525i, 625i
HDMI:4096x2160p (23.98/24/25/29.97/30/50/59.94/60)
3840x2160p (23.98/24/25/29.97/30/50/59.94/60)
1920x1080p (23.98/24/25/29.97/30/50/59.94/60)
1920x1080i (50/59.94/60)
1280×720p (23.98/24/25/29.97/30/50/59.94/60)
720 x480i (NTSC), 720 x576i (PAL)
640 x800, 800 x600, 1024 x768, 1280 x800
Aspect Ratio 16:9, 4:3
Aspect Marker YES
Safty Marker YES
Tally LED Live (Red)
Cued (Green)
Audio In/Out Input: Embedded Audio (48KHz sampling)
Output: Analog stereo (Phone Jack)
Speaker x 2 (3W)
Special Features waveform,
vector scope,
Focus Peaking,
False Colour,
Exposure (Zebras),
Histogram,
HDR / SDR,
Time Code,
Audio Vector,
Camera Log,
Gamma, Marker,
Pixel to Pixel,
Zoom,
H/V Delay,
DSLR,
Freeze,
Image Flip,
Check Field,
Level Meter,
Colour Bar,
Colour Calibration.
Dimension (WxHxD) 403 x 305 x 37 mm
Weight 4.7kg
Operating Temp. Range 0~40 °C
Power DC 12V, 34.6W

17-inch ScopeView Production Monitor
Supports DCI P3 colour space 4K/60p and UHD 4K/60p video input and output
Supports Multiple Input and Output Configurations
1x 12G-SDI, 2x HDMI (HDMI 2.0) inputs
1x 12G-SDI loop-through, 1x HDMI (HDMI 2.0) loop-through
Supports column (YRGB peak), time code, waveform, vector scope, audio vector, focus peaking, zoom, pixel to pixel, exposure, histogram, image flip, camera log, HDR / SDR, and more
Tally light included. Best use for live production
