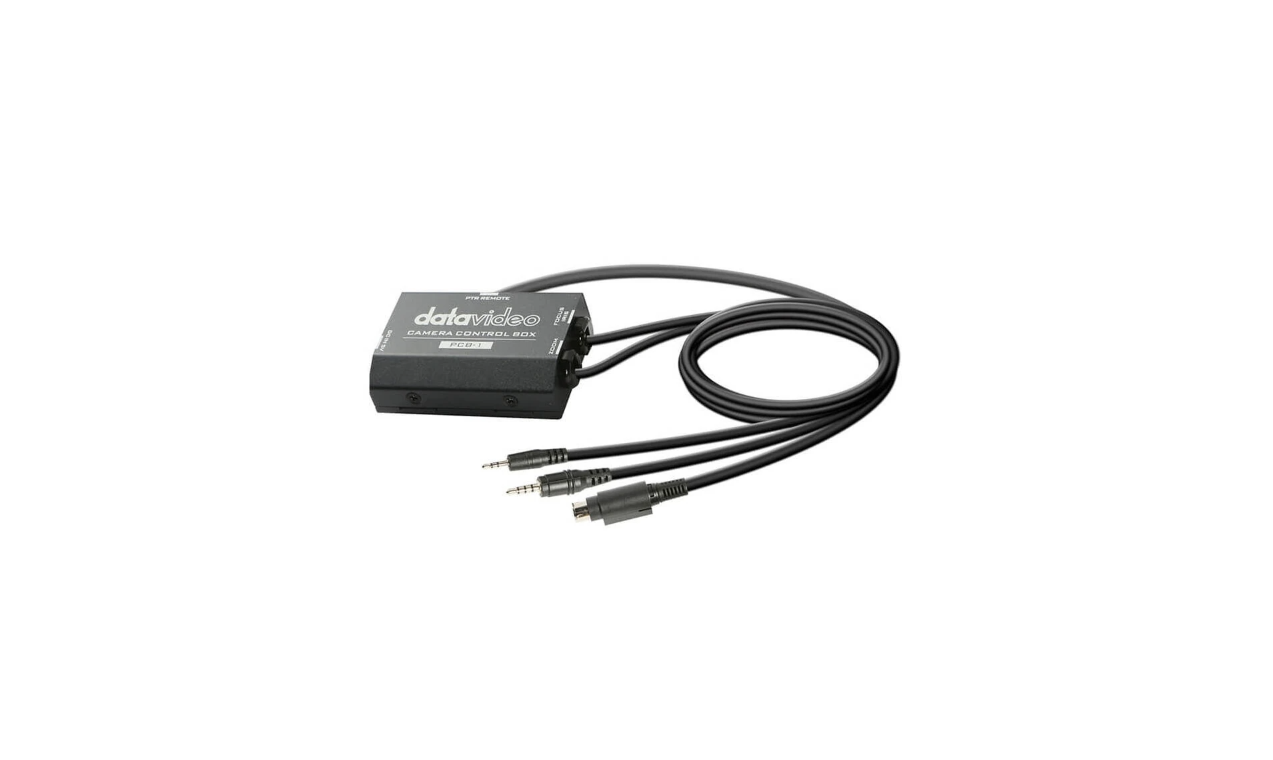

Datavideo PCB-1 – Panasonic Interface Control Box

OVERVIEW
The PCB-1 is a camera control box specifically designed for use with the Datavideo PTR series. It serves as an optional controller for the PTR-10/10T MARK II and allows for precise control of Panasonic dual-hole remote cameras. With the PCB-1, users can adjust the zoom, focus, and iris of their Panasonic camcorder using the RMC-180 MARK II, RMC-300A, or an IR remote control connected behind the PTR device. This small and low-power device can also be powered directly from the PTR-10 MARK II series device.

With the PCB-1, users can easily control their Panasonic cameras without the need for additional equipment. This makes it a convenient and efficient solution for those using the Datavideo PTR series. Its compatibility with the RMC-180 MARK II, RMC-300A, and IR remote control also adds to its versatility, making it a valuable tool for any videographer or filmmaker.

About The Datavideo PCB-1 – Panasonic Interface Control Box
An optional controller for PTR-10/10T MARK II, PCB-1 can perfectly control Panasonic 2-ports remote cameras

PCB-1 is a camera control box designed specifically for connecting between a PTR device and a Panasonic camcorder mounted thereon in order to allow zoom, focus and iris of the camcorder to be adjusted using the RMC-180 MARK II, the RMC-300A or an IR remote control connected behind the PTR device.

Designed for Datavideo PTR series.

As an optional controller for PTR-10/10T MARK II, PCB-1 can perfectly control Panasonic dual-hole remote cameras.

Controls Panasonic two port remote camcorders

Compatible with RMC-180 MARK II, RMC-300A and IR remote control, can control Zoom, Focus, IRIS of Panasonic camera.

Small size design

Low power consumption. PCB-1 can be powered from the PTR-10 MARK II series device.

Input Voltage DC 5V micro USB
Compatible Controllers RMC-180
RMC-300A
IR Remote Control
Interfaces One 8pin mini-din to the PTR device
One 2.5 mm Jack Plug to the Zoom jack on the
Panasonic camcorder
One 3.5 mm Jack Plug to the Focus/Iris jack on the
Panasonic camcorder
Operating Temperature 0 – 40°C
Operating Humidity 10 – 80% (non-condensing)
Storage Temperature -10 – 60°C
Storage Humidity 5 – 80% (non-condensing)
Weight 135g
Dimensions (mm) 85.9 x 45.7 x 20.3 (not inclusive of cables)
