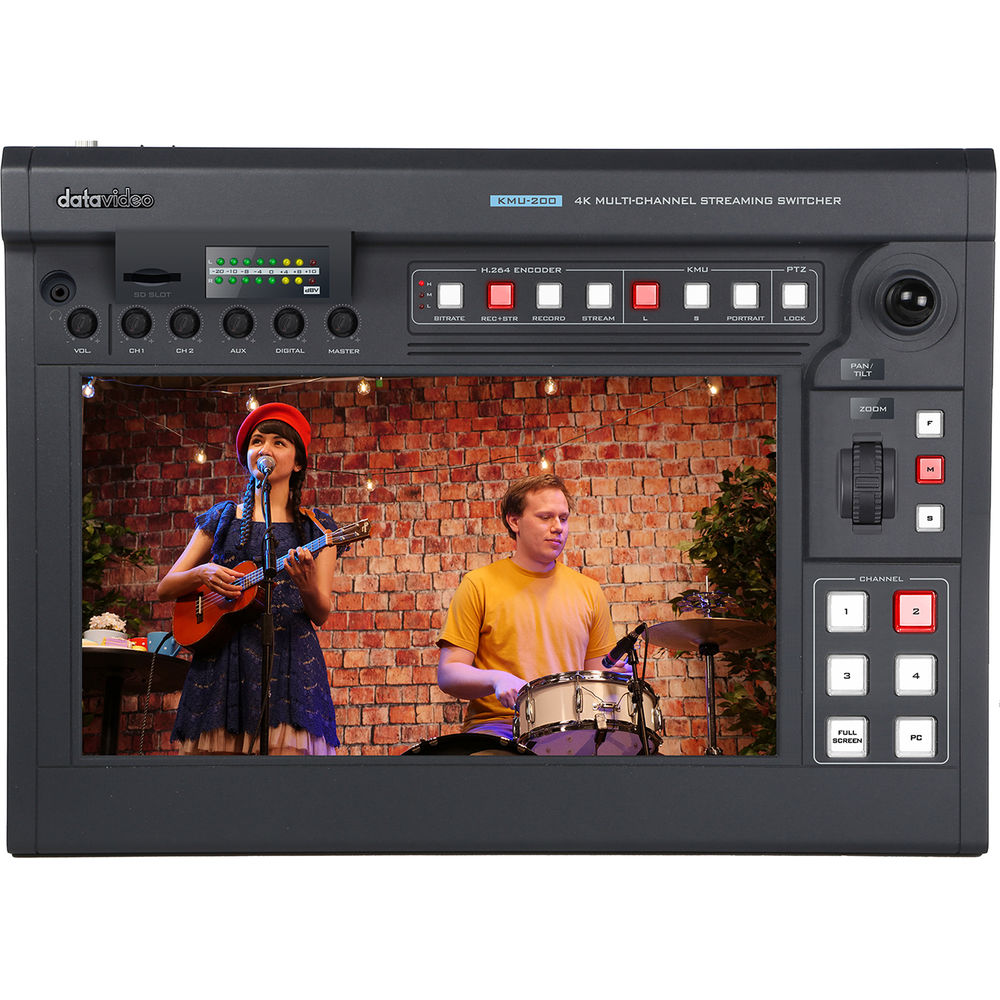

Datavideo KMU-200

OVERVIEW
The Datavideo KMU-200 is an all-in-one solution for producing full HD virtual multi-camera video using a single 4K camera. With its advanced features such as live switching, streaming, audio mixing, and camera control, the KMU-200 is perfect for creating professional-looking productions with ease.

One of the standout features of the KMU-200 is its ability to work as both a horizontal and vertical video switcher. This means you can easily switch between different video modes and produce content that is optimized for both horizontal and vertical viewing.

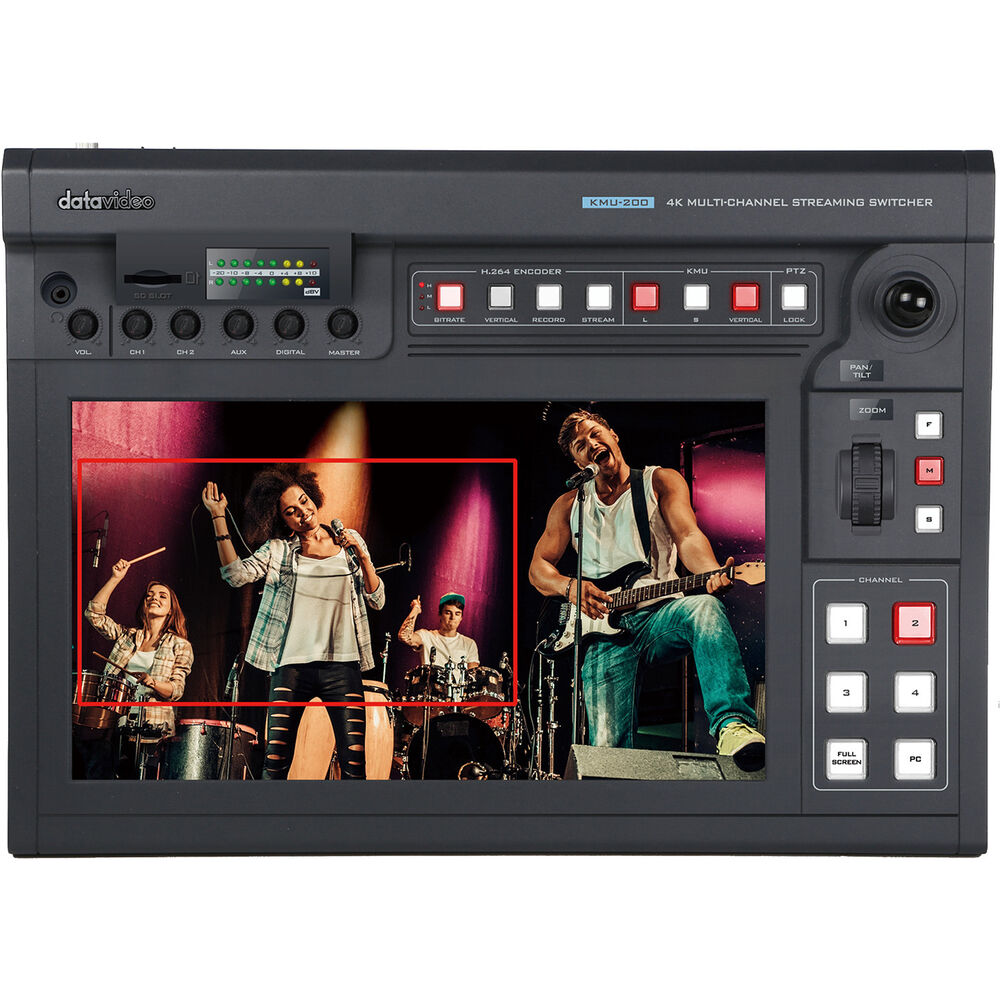

With support for 4K UHD resolution input, the KMU-200 allows you to utilize the full potential of your 4K camera by creating up to 4 cutouts or regions of interest. This makes it ideal for interview applications, small panel discussions, and even live streaming events with social distancing measures in place.

The KMU-200 also features easy touch screen operation, making it simple for users to control the video cutout sources using familiar gestures like pinching and swiping. Alternatively, the joystick, zoom knob, and hardware buttons can also be used for precise positioning of the cutouts.

In addition to its advanced video switching capabilities, the KMU-200 also has a built-in dual streaming encoder, allowing you to live stream directly to popular platforms like YouTube and Facebook. It also has a recording storage medium of SD card, making it easy to bring your recordings to your favorite editing suite.

The KMU-200 also offers an additional HDMI input with loop out, giving you the option to connect an extra camera angle or a computer’s display-output for presentation software. The HDMI loop out also allows for direct monitoring of the presentation input, ensuring a smooth production process.

Audio is also an important aspect of any production, and the KMU-200 has you covered with its four-channel embedded audio mixer. With RCA and XLR inputs, as well as audio volume adjustment, you can easily embed audio into your video for a seamless viewing experience.

Whether you prefer to produce content in horizontal or vertical mode, the KMU-200 makes it easy to switch between both modes with just the press of a button. This makes it a versatile tool for creating content that caters to different viewing preferences.

Overall, the Datavideo KMU-200 is a powerful and user-friendly 4K multi-channel touch screen region of interest switcher. With its innovative features and easy operation, it is the perfect solution for producing professional-looking virtual multi-camera videos without the need for additional equipment or assistance.

INCLUDED IN BOX
1x KMU-200 Main Unit
1x AD Switch DC 12V with AC Cord
1x Thank You Card

About The Datavideo KMU-200
4K Multi-Channel Touch Screen Region of Interest Switcher

New Design with Horizontal and Vertical Video Streaming and Recording

KMU-200 is an all-in-one solution for producing full HD virtual multi-camera video using a single 4K camera. KMU-200 uses a large touch screen for operation using similar gestures used on any tablet or phone. By pinching and swiping, you control up to 4 cutouts of a 4K image and as if the footages comes from 4 different cameras. Use hardware control to precisely position the cutouts like a regular PTZ camera.

KMU-200 features a dual streaming encoder making it possible to go live on all the well known streaming platforms directly from the device. Easily record on SD cards and you can directly bring the recording to your favorite editing suite. KMU-200 allows you to produce virtual multi-camera videos easily without any help.

Supports 4K UHD Resolution Input

4K cameras are widely available and content online doesn’t require the full 4K resolution for streamed content. A single 4K camera can be utilised to obtain 4 cut outs or regions of interest. The KMU-200 is perfect for interview application with small panels or smaller houses of worship. With Social distancing becoming commonplace, the KMU-200 reduces the amount of cameras needed to get your production streamed live.

Easy control of virtual cameras

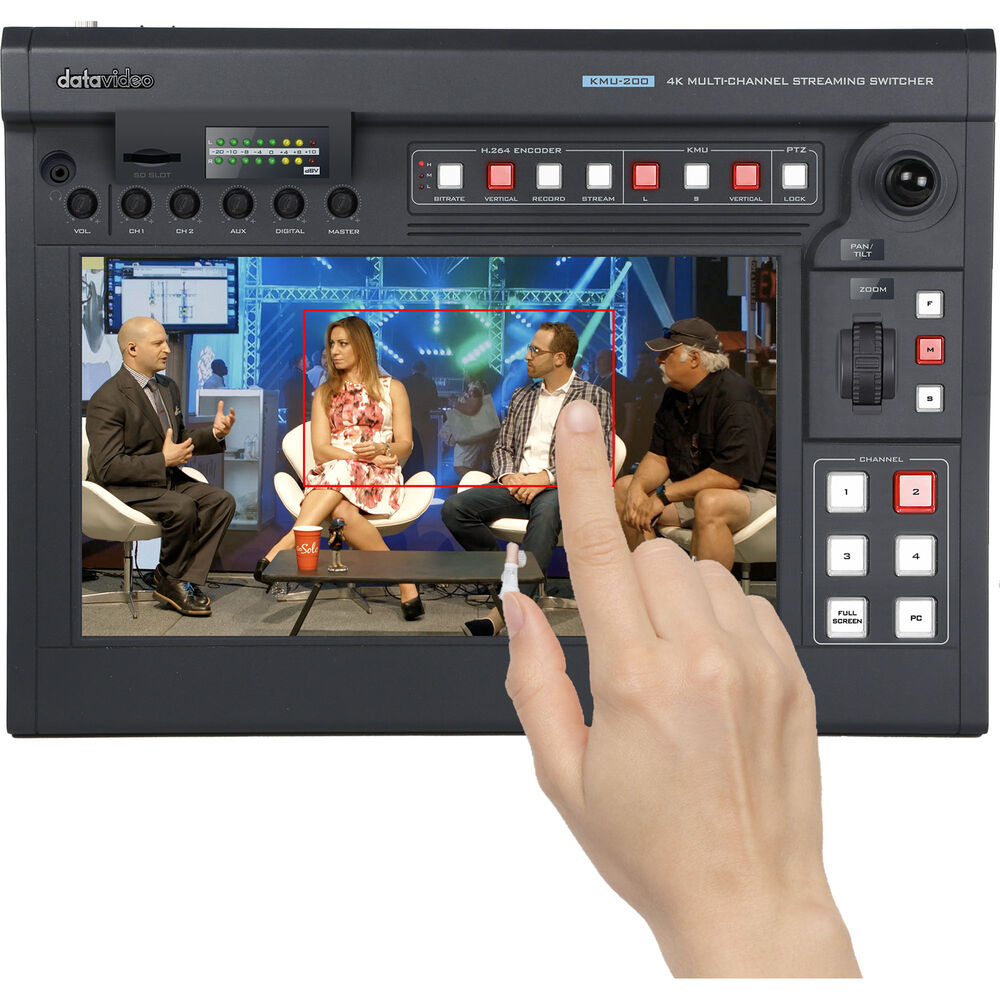

Users can easily control the video cutout sources by using the touch screen and well known gestures such as pinching and swiping. The joystick, zoom knob and hardware buttons can also be used alternatively.

Create your Horizontal Video

Make your live-streaming look professional with only six buttons to create four virtual camera footage and six different shots.When using the KMU-200, you can switch between four different virtual cameras, the full shot and the extra HDMI input. Operating the unit is very easy this way.

Create your Vertical Video

Easily switch between horizontal and vertical mode/video production modeVertical video production is in favour of those who prefer to watch the videos on the vertical mode. You can simply alter this mode by rotating the screen. KMU-200 is natively able to produce vertical video by pressing a single button, effectively converting the whole unit from 16:9 to 9:16 production.

Additional HDMI Input with Loop Out

The additional HDMI input allows the option to show an additional camera angle or to connect a computer’s display-output to the KMU-200 for presentation software.

The HDMI loop out allows for production directors to have direct monitoring of the presentation input. All HDMI inputs have built-in strain relief bars to make sure nothing is left to chance during your production, by reducing the chances of cables becoming unplugged.

It supports audio embedding for your video

Four-channel embedded audio mixer with RCA and XLR inputs, and also provide you the audio volume adjustment.

Vertical and Dual streaming to two different platforms

Live streaming video directly from the KMU-200 is easier than ever. Just simply connect the KMU-200 to your local network, connect your PC to the same network and configure the streaming encoder. After that you can simply start streaming by pressing the stream button.

The built-in streaming encoder remarkably reduces, the need for different procedures and equipments.

Video Standard UHD & HD
Video Format Input:
3840x2160p 23.98/24/25/29.97/30/50/59.94/60
1080p 50/59.94/60
Output:
1080p 50/59.94/60
720p 50/59.94/60
Video Processing 4:4:4 / 4:2:2 / 4:2:0
Video Input 1x HDMI 2.0
1x HDMI 1.4 with Loop through
Video Output 2x HDMI 1.4
Support Video Output Resolution 1920 x 1080p 50/59.94/60
1280 x 720p 50/59.94/60
Multiview Out N/A
Multiview Mode N/A
Streaming Encode H.264/AVC, Main/High Profile
Streaming Video Bitrate Record Only: Up to 16Mbps (1080p50/60)
Stream Only: Up to 10Mbps (1080p50/60), dual stream
Record+Stream: 36Mbps (1080p50/60)
Streaming Video Rate Mode CBR
Streaming Audio Mode Stereo/Mono
Streaming Audio Bitrate Stereo: 64~384Kbps
Mono: 32~192Kbps
Streaming Protocols TS over TCP/UDP (unicast & multicast)
RTSP over HTTP/TCP/UDP (RTSP Elementary Streaming)
RTMP/RTMPS (Publish)
HLS
SRT
Network Interface 1x RJ45 (10/100Mbps Ethernet)
Recording Storage Medium SD Card
Recording Storage File System MP4
Built-in Audio Mixer Yes, 4 channels
Audio Input 2x XLR(Mic)
2x RCA
Audio Output 2x Unbalanced RCA
Audio Sampling N/A
Reference Input N/A
Control Interface N/A
Preview Display 14” Capacitive Touch LCD
Controller N/A
Dimension (LxWxH) 438 x 331 x 114 mm
Weight 4.3 kg
Power Supply DC 12V, 52W
Operating Temp. Range 0~40 °C

Live Switching, Streaming, Audio Mixing and Camera Control
MultiCamera Production from a single 4K Source
Ability to work as both a horizontal video switcher and as a vertical video switcher
Supports 4K UHD Resolution Input
Additional HDMI input allows the option to show an extra camera angle or to connect a computer’s display-output to the KMU-200 for presentation software
Easy Touch Screen Operation
Stream Directly to YouTube or Facebook
PTZ camera control function
Input: 1x HDMI 2.0
1x HDMI 1.4 with Loop through
Audio Input: 2x XLR (Mic) | 2x RCA
Audio Output: 2x Unbalanced RCA
Recording Storage Medium: SD Card
Network Interface: 1x RJ45 (10/100Mbps Ethernet)

Live Switching, Streaming, Audio Mixing and Camera Control

NEW DESIGN WITH HORIZONTAL AND VERTICAL VIDEO STREAMING AND RECORDING

The KMU-200 is a Multicamera Production from a single 4K Source which brings switching, audio mixing, recording and streaming into a portable all in one device.

The KMU-200 has the ability to work as both a horizontal video switcher and as a vertical video switcher. Horizontal video is the current norm, but vertical video content is growing in popularity due to smart phones where most content is consumed in portrait mode. The KMU-200 will allow you to push your vertical video productions to new limits.

SUPPORTS 4K UHD RESOLUTION INPUT

The input of a single 4K/UHD camera is connected to KMU-200, which then displays up to four user-defined cropped windows that are sent out as four separate HD signals The KMU-200 is perfect for interview applications with small panels or smaller houses of worship.

EASY TOUCH-SCREEN OPERATION

Touch Screen operation for simplified tasks and tactile buttons are provided for switching. The 14-inch touch screen allows control over the live content. The joystick and backlit buttons allow for more traditional control over the KMU-200’s screen selections.

6 CHANNELS FOR LIVE SWITCHING

The six channel buttons incorporated into the lower right corner allow easy switching from each cropped window, including two allocated for full screen mode and computer output.

ADDITIONAL HDMI INPUT WITH LOOP OUT

The additional HDMI input allows the option to show an additional camera angle or to connect a computer’s display-output to the KMU-200 for presentation software. The HDMI loop out allows for production directors to have direct monitoring of the presentation input.

STREAM DIRECTLY TO YOUTUBE OR FACEBOOK

The built-in H.264 streaming encoder can instantly stream live to your chosen CDN in in traditional 16×9 format or 9×16 portrait mode.
