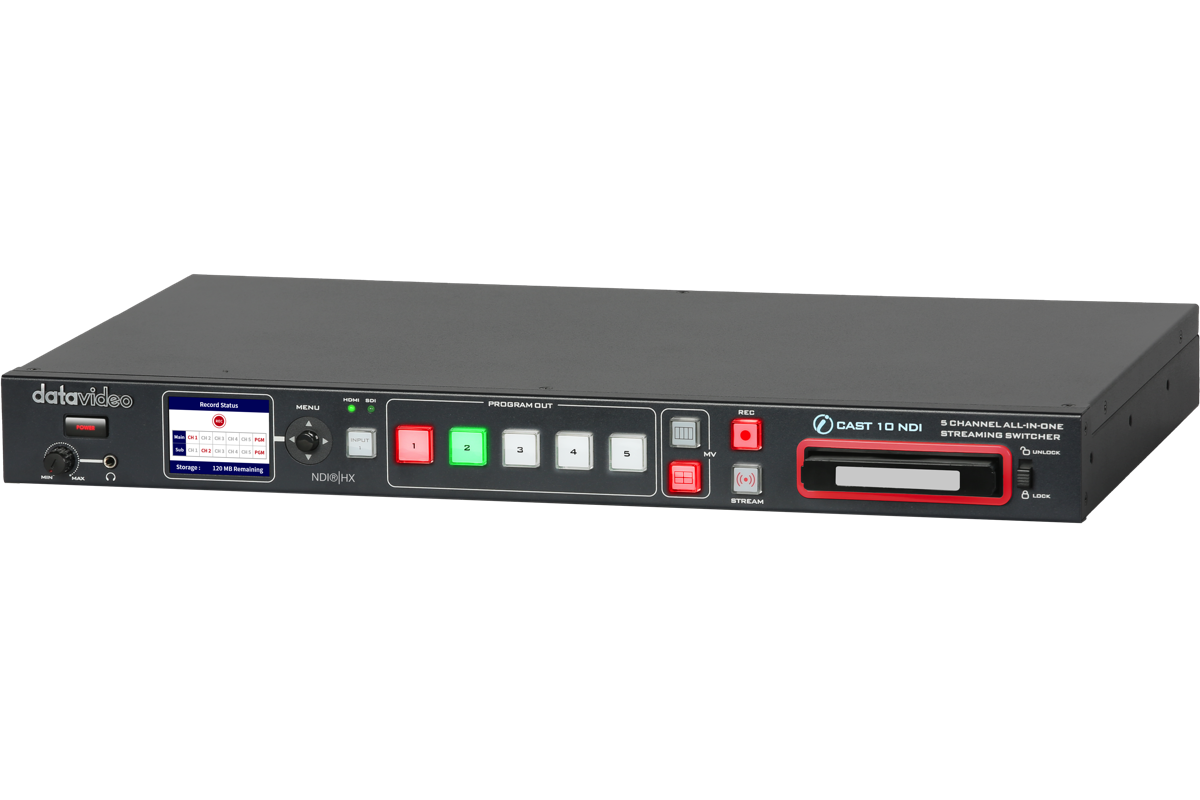

Datavideo ICAST10NDI Switcher

OVERVIEW
The iCAST 10NDI is a cutting-edge all-in-one streaming switcher that offers a seamless switching experience, multi-channel audio mixing, and video streaming capabilities. It also includes features such as multi-camera video recording, character generation, and system control, making it a versatile solution for producing hybrid events.

With five video inputs, including SDI/HDMI, HDMI, and USB 3.0 ports, the iCAST 10NDI can easily connect to a variety of professional cameras, laptops, and document cameras. It also has the ability to receive IP videos via an RJ-45 port, eliminating compatibility concerns. Additionally, the switcher offers dual multiview modes and multiple program modes, allowing for intuitive previewing and live streaming of up to four input videos simultaneously to audiences around the world with zero delay.

INCLUDED IN BOX
1 x iCast 10NDI main unit
1 x DC 12V Power Adaptor
2 x 1U Rack Mount Ear
6 x M4 Screws for Rack Mount Ear
1 x 2.5in Removable HDD/SSD Enclosure
4 x Screws for 2.5 Removable HDD/SSD Enclosure
1 x Blank Label
1 x SATA to USB 3.0 Cable

About The Datavideo ICAST10NDI Switcher
PRODUCE HYBRID EVENTS USING AN ALL-IN-ONE SWITCHER

iCAST 10NDI is a new and innovative live production equipment that houses a switcher, camera controller and streaming encoder in one box. A variety of inputs can be connected to iCAST 10NDI to allow you to create an eye catching presentation with different video sources, such as PTZ and document cameras, and a laptop for your presentation slides.

Using the built-in streaming encoder and recorder. You can easily live stream to multiple platforms and record your show to an SD card. Six video channels can be ISO recorded at the same time in order to provide you with more program materials for post production.

iCAST 10NDI is definitely a highly efficient and easy-to-use solution for video streaming and recording.

MULTIPLE VIDEO INPUT INTERFACES

iCAST 10NDI has five video inputs with one SDI/HDMI selectable port, three HDMI only ports and one USB 3.0 port. iCAST 10NDI accepts videos from various professional cameras, laptops and document cameras.

You can also receive IP videos via an RJ-45 port. IP videos are streamed using RTMP(S) or SRT protocol. With a variety of video interfaces, you no longer need to worry about compatibility of different video devices.

DUAL MULTIVIEW MODES

iCAST 10NDI provides an intuitive preview of your output sources. You can view them either horizontally or vertically (a new technology for viewing videos on mobile devices) and preview these mode changes on a Multiview screen.

MULTIPLE PGM MODES

In addition to displaying a full screen view of the program out video, you can also stream the four input videos live to your audience.

The iCAST 10NDI offers five Multiview layouts to allow you to show your input videos all at the same time. The videos can be streamed to all corners of the world and your audience can, with zero delay, participate in your events using a receiver/decoder, personal mobile device, or a computer.

Video Standard HD & SD
Video Format Input-
1080p60/59.94/50,
1080p30/29.97/25/24/23.98
1080i60/59.94/50
720p60/59.94/50
480i59.94, 576i50
Output-
1080p60/59.94/50→1080p60/59.94/50
1080p30/29.97/25/24/23.98→1080p30/29.97/25/24/23.98
1080i60/59.94/50→1080p30/29.97/25
720p60/59.94/50→720p60/59.94/50
480i59.94, 576i50→480p29.97, 576p25
(not supporting interlace)
Input Routable / Crosspoint N/A
Video Input 3G/HD/SD-SDI x1 (BNC 75 ohm)
HDMI 1.4 x4
(Channel 1 as SDI/HDMI selectable)
USB 3.0 x1
Mix HD & SD Source Yes
Computer Graphic Interface 4 via HDMI
Video Output 3G/HD/SD-SDI loop-through x1
HDMI 1.4 x1 (PGM)
HDMI 1.4 x1 (Multiview)
RJ-45 female x2 (10/100/1000M Ethernet) (LAN & WAN)
Down-converted Output 1080p output
Built-in Multi-view Monitoring Out HDMI x1
Analogue Audio Input XLR Balanced audio x2
RCA Unbalanced audio x 1 pair
SDI embedded audio
HDMI embedded audio
IP Audio (RTSP AAC-ADTS, PCM)
(External and embedded audio mixable)
Analogue Audio Output 3.5mm x1 (headphone, PGM audio monitoring)
Audio Delay Calibration Each channel delay time: 0-3000ms
Chromakey N/A
Title Creator Web GUI
USK N/A
DSK N/A
Picture in Picture Yes (PGM)
Logo Insertion Yes
Still Store N/A
Effects Cut
Transition Preview N/A
Sync / Reference In/Out N/A
Tally Output N/A
PC Remote Control Web UI for system configuration and control
Serial Port Control: RS-232 (RJ-45)
Camera Control N/A
Built-in Audio Mixer Yes
Storage SATA (6Gb/s)
Recording File System FAT, NTFS, exFAT
Recording File Format MP4
Video Encode H.264
Audio Encode AAC-LC
Sample rate: 48KHz, 16bit
AAC-LC
Sample rate: 48KHz, 16bit
Configurable bit rate: 128K or 256K or 384K
Streaming Protocol l DHCP client
TS over UDP (unicast & multicast)
RTSP over HTTP/TCP/UDP
RTMP (Publish)/RTMPS
HLS
SRT Caller and Listener
Web RTC (encode/decode)
NDI
Hx
Firmware Update Web UI (network)
Special Features Vertical video: crop or rotate
Vertical video Multiview
Chassis 1RU rack-mount mainframe
Dimension (LxWxH) 440 x 284 x 44mm
Weight 2.9 kg
Power DC 12V 24W
Operating Temp. Range 0~40 °C

5-Channel All-in-one Streaming Switcher
Seamless switching
Multichannel audio mixing
Video Streaming
Multi-Camera Video Recording
Character Generation
System Control
