OVERVIEW
DataVideo DATA-HBT50 (DATAHBT50) 4 Channel HDBaseT Converter (UHD/4K) is an essential link for your live production needs. With the HBT-50, you can connect up to 4 devices at a distance of up to 100 meters, providing power, video signal, and camera control simultaneously. This converter is perfect for seamlessly integrating HDBaseT into your SDI workflow.
The HBT-50 can power PTZ video cameras via PoE and transmit signals over a single Ethernet cable, making it easy to remotely control camera parameters such as iris and presets. It also outputs SDI signal to your switcher, making it a valuable addition to your production setup.
Not only does the HBT-50 provide SDI and HDMI output simultaneously, but it also offers camera control functionality. This allows for the integration of camera control, video switching, and ISO recording operations. With the HBT-50, you can streamline your production workflow and save time and money.
One of the standout features of the HBT-50 is its ability to output HDMI and SDI signals simultaneously. This makes it perfect for long-distance camera video transmission to a switcher or ISO recorder. With the HBT-50, there is no need for additional HDBaseT receivers, as it can handle the job on its own.
For those in the broadcast industry, the HBT-50 is the perfect solution for your SDI workflow. With the ability to remotely control camera functions via RS-422 or DVIP, this converter can transmit SDI and HDMI video signals up to 1080p50/60 for up to 4 cameras simultaneously at a distance of up to 100 meters.
But what exactly is HDBaseT? HDBaseT is a technology that allows for the transmission of video, control, tally, and power over a single CAT 6 cable. This means you no longer need to run multiple cables for your cameras, saving you time and money. Datavideo offers a range of HDBaseT PTZ cameras and mobile video switchers to help you take advantage of the many benefits that HDBaseT technology has to offer.
INCLUDED IN BOX
1 x HBT-50 main unit
1 x AC Cord

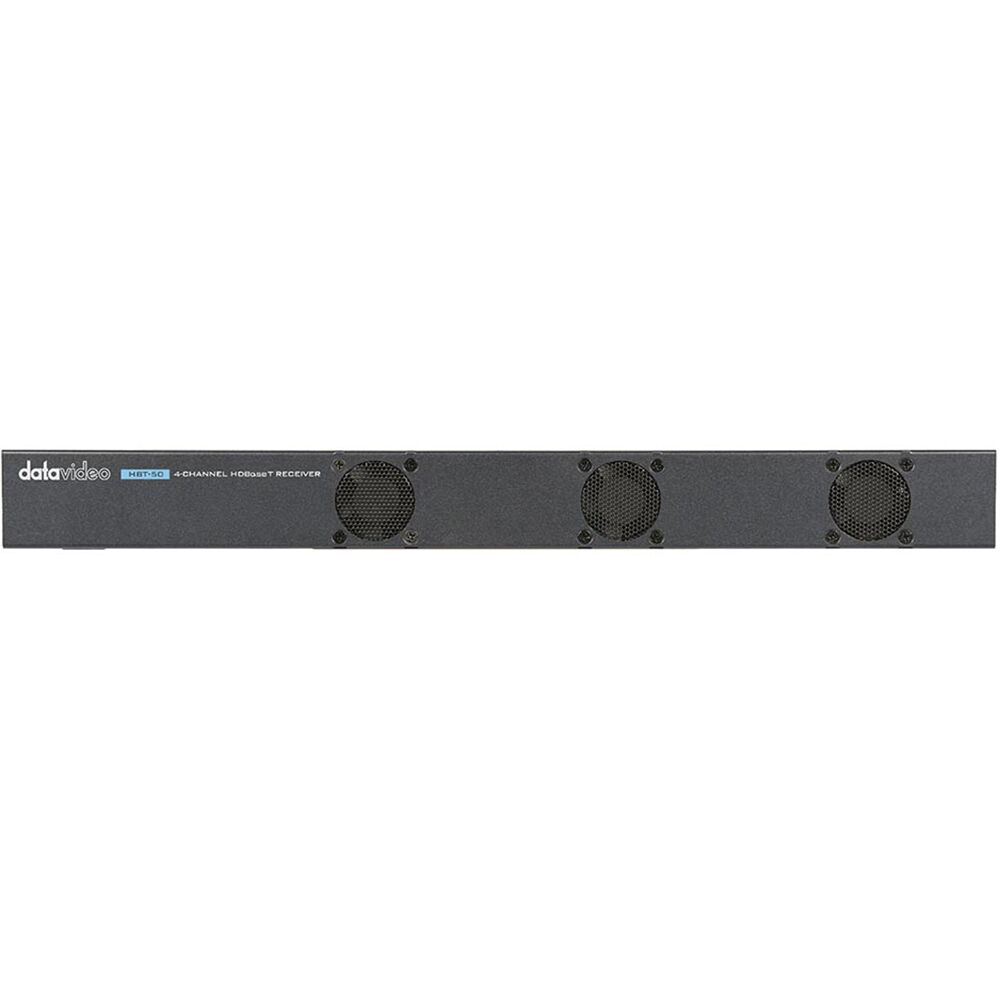

About The Datavideo HBT-50 4-Channel HDBaseT Receiver
An essential link to connect all your equipment for your live production
The HBT-50 supplies power, video signal, and camera control up to 4 devices up to 100 meters distance. It simultaneously outputs HDMI, SDI, RS-422 and IP control signals.
Add HDBaseT to your SDI Workflow seamlessly
HBT-50 can power the PTZ video cameras via PoE, transmit signals over a single ethernet cable to and from the camera and can be used to remotely control various camera parameters such as iris, presets and etc. Most importantly, it can output SDI signal to your switcher.
Integrate camera control, switcher and recorder operations
HBT-50 simultaneously transmits SDI (up to 1080p60) and HDMI (up to 1080p60) as well as camera control. With the HBT-50, the system can be integrated camera controller, video switcher, and ISO recorder.
Simultaneously outputs HDMI, SDI
HBT-50 provides outputs HDMI and SDI simultaneously. It is great us on long distance camera video transmitting to switcher, or ISO recorder. These is no need to prepare 4 additional HDBaseT receiver, HBT-50 will get the work done for it.
Perfect solution for your broadcast SDI workflow.
Remote control of camera functions via RS-422 or DVIP with SDI video transmission (up to 1080p50/60) and HDMI video transmission (up to 1080p50/60) up to 4 cameras simultaneously up to 100m.
What is HDBaseT ?
HDBaseT can be used to power and control cameras, as well as transmit video signals over long distances for many video production applications. In this episode of Tech Tip Tuesdays, we explain how you can save time and money by using HDBaseT. HDBaseT allows you to transmit video, control, tally, and power over single CAT 6 cable. This means you no longer need to run multiple cables for video, control, and power for your cameras!
Datavideo offers several HDBaseT PTZ Cameras and HDBaseT Mobile Video Switchers to help you take advantage of the many workflow benefits that HDBaseT technology offers.
Video/Audio Input HDBaseT x 4 (with PoE and IEEE 802.3at)
Video/Audio Output HDMI x 4 (up to 1080p50/59.94/60)
SDI x 4 (up to 1080p50/59.94/60)
Supported Video Format 1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50, 720p: 60/59.94/50
Video Process —
Video bandwidth —
DVIP RJ-45 x1(input)
RS-422/ RS-232 RJ-45 x 4 (RS-232/RS-422)
Power AC In
PoE Output 65W per channel
HDBaseT Distance 1080p50/59.94/60 up to 100m by CAT.6 cables
HDMI compliance —
HDCP compliance —
Audio support —
Dimension (LxWxH) 440 x 286 x 49mm
Weight 4.2 kg
Operating Temp. Range 0~40 °C
