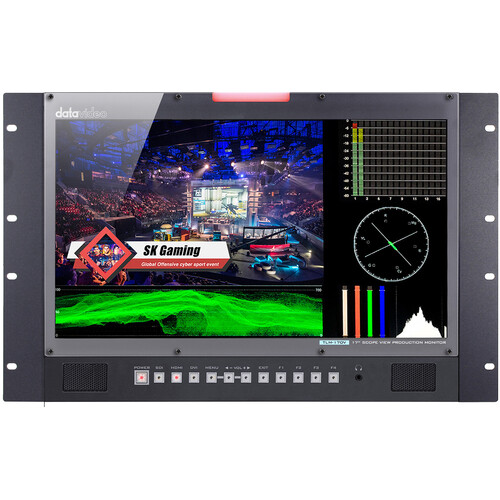

Datavideo DATA-TLM170VR 17.3IN HD Monitor

Overview
The TLM-170V is a 17.3″ Full HD monitor that offers support for 3G/HD/SD 1920×1080 panel resolution. This monitor also has the capability to support multiple input and output configurations, including 1 x 3G/HD/SD-SDI and 2 x HDMI inputs, as well as 1 x 3G/HD/SD-SDI and 1 x HDMI loop through. With the ability to cross convert SDI and HDMI video signals, the TLM-170V is a versatile choice for any video production workflow. It also comes equipped with various built-in functions such as support column (YRGB peak), time code, waveform, vector scope & audio level meter, peaking, zoom, pix to pix, underscan, check field, and tally light.

Whether you are a professional videographer or a beginner, the TLM-170V has everything you need to produce high-quality videos. Its advanced features and multiple input/output options make it a great fit for any video production setup. With its high-resolution display and various built-in functions, this monitor is sure to enhance your video production experience.

Summary
Screen Size: 17.3 Inch
Resolution: 1920 x 1080
Inputs:
3G
HD
SD-SDI
Included in box
1x 7U Rack Mount 17″ ScopeView Production Monitor

About the Datavideo DATA-TLM170VR 17.3IN HD Monitor
17.3″ Full HD monitor supports 3G/HD/SD 1920×1080 panel resolution. It also supports multiple input and output configurations 1 x 3G/HD/SD-SDI, 2 x HDMI inputs; 1 x 3G/HD/SD-SDI, 1 x HDMI loop through. The TLM-170V can cross convert SDI, HDMI video signals, makes it a great fit to all the video production workflow. With various built-in functions such as support column (YRGB peak), time code, waveform, vector scope & audio level meter, peaking, zoom, pix to pix, underscan, check field, tally light

Screen 17.3″ LED Backlit
Chassis 7RU Rack Mount
Resolution 1920×1080
Viewing Angle (H) +89/-89°
(V) +89/-89°
Luminance/Contrast 300cd/m²
700:1
Video Inputs 1x 3G/HD/SD-SDI
2x HDMI
Loop Through 1x 3G/HD/SD-SDI
1x HDMI
Supported Input Resolutions 1080p(23.98/24/25/29.97/30/50/59.95/60Hz)
1080i(50/59.94/60Hz),
720p(50/59.94/60Hz),
576i(PAL), 480i(NTSC)
Aspect Ratio 16:9, 4:3
Tally LED Live (Red)
Cued (Green)
Audio In/Out 2x Speaker
1x Headphone Jack
Special Features SDI and HDMI cross conversion
Support column (YRGB peak)
Time Code
Waveform
Vector scope & audio level meter
Peaking focus assist
Zoom
Pix to pix
Underscan
Check field
Dimension (LxWxH) 403 x 305 x 41 mm
Weight 4.5 kg
Operating Temp. Range 0~40 °C
Power DC 10-18V, 32W
