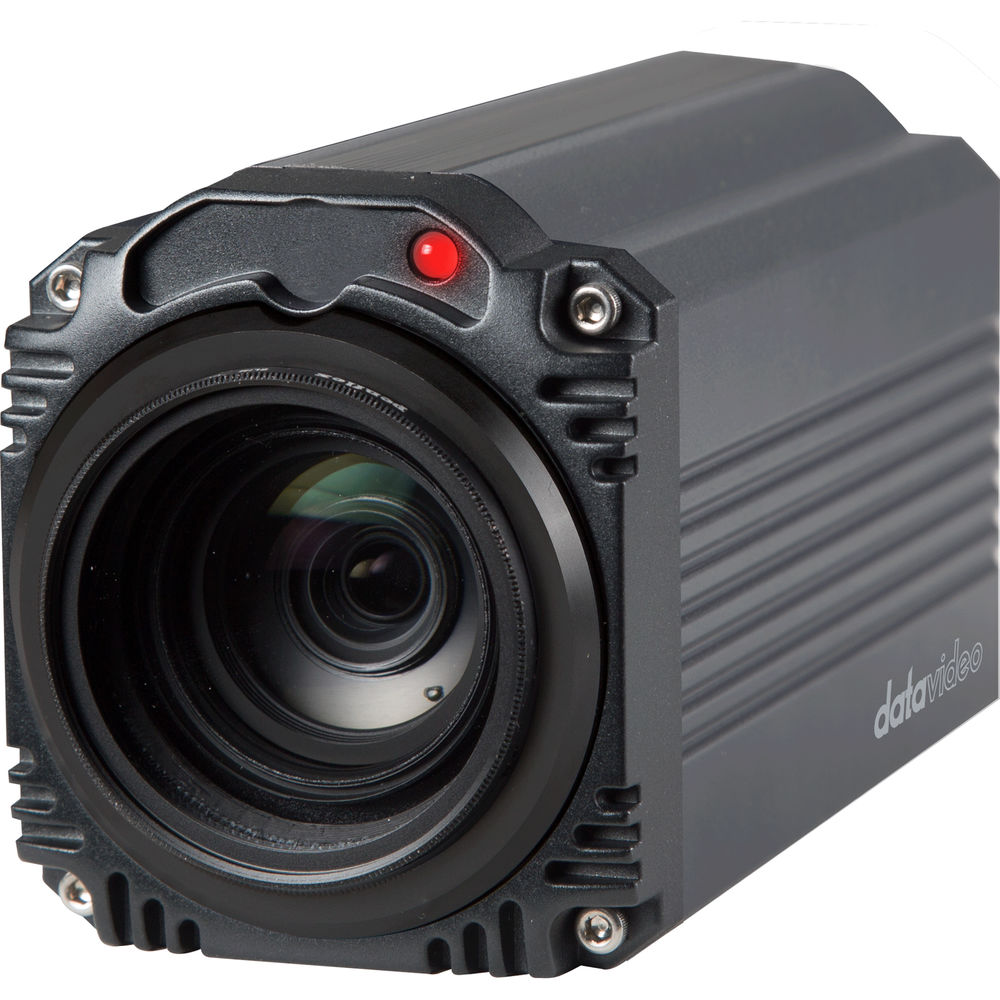

Datavideo DATA-BC50 HD Block Camera

OVERVIEW
The Datavideo DATA-BC50 (DATABC50) BC-50 Full HD Block Camera is a top-of-the-line camera that offers outstanding features for professional video production. With its 1080P Full HD resolution, this camera delivers crystal clear images that will impress even the most discerning viewers.

One of the standout features of the BC-50 is its 20x optical zoom, which is coupled with a maximum aperture of F1.8. This allows for stunning close-up shots with beautiful depth of field. Additionally, the camera’s gain setting of 0.05 LUX ensures that even in low light situations, your video will still look smooth and professional.

The BC-50 also offers a variety of compression options, including H.264, H.265, and Motion-JPEG, all through a convenient RJ-45 connection. This allows for easy streaming and sharing of your videos online. In fact, the BC-50 even has the capability to stream directly to popular platforms like Facebook and YouTube.

In terms of output, the BC-50 offers regular 3G SDI output for uncompressed video up to 1080P. This ensures that your footage retains its high quality and is perfect for broadcast level applications. The camera is also controllable via VISCA, Pelco-C, and Pelco-D protocols, making it versatile and easy to integrate into your existing setup.

Despite all of its impressive features, the BC-50 is surprisingly compact, measuring only 6.4 inches in length. This makes it easy to set up and use in any environment, whether it’s for a studio shoot or an outdoor event. The camera also features a cold shoe mount, allowing you to connect an external LED light or monitor for even more versatility.

Overall, the Datavideo DATA-BC50 (DATABC50) BC-50 Full HD Block Camera is a powerful and reliable camera that offers everything you need for professional video production. With its top-notch resolution, impressive zoom capabilities, and convenient connectivity options, this camera is a must-have for any serious videographer or filmmaker.

SUMMARY
Max Aperture: f/1.8
Lens Zoom: 20x Optical Zoom
Resolution and Frame Rate: 1080p @ 60fps
Sensor: CMOS
Video Outputs: HD-SDI
INCLUDED IN BOX
1x BC-50 main unit
1x DC 12V power adaptor

About The Datavideo DATA-BC50 HD Block Camera
The BC-50 is a cost-effective block camera with 20x optical and 16x digital zoom. The video output is 3G/HD-SDI, it also supports VISCA/Pelco-D/Pelco-P protocols for control via RS-485. The BC-50 can deliver the compressed video signal H.264/H.265/MJPEG, and also RTMP streaming to facebook and youtube. The BC-50 Block Camera is a small HD camera with sturdy and durable metal case can be used in different types of environments.

Video format 1080p 60/50/30/25
1080i 60/50
720p 60/50
Image Sensor 1/2.7″ progressive scan CMOS sensor
Effective Pixels (approx.) 2.07 Mega pixels
Min. Illumination 0.05 Lux @ (F1.8, AGC ON)
Electronic Shutter 1/30s ~ 1/10000s
Zoom Ratio 20x Optical zoom ; 16x Digital zoom
Gamma Control Yes
Iris Control Auto/Manual
Digital Noise Reductions 2D & 3D
On-Screen Display (OSD) English, Simplified Chinese, Traditional Chinese
White Balance Auto, 3000K/Indoor, 4000K, 5000K/Outdoor,
6500K_1, 6500K_2, 6500K_3, One Push, Manual
AGC / Gain Control Auto / Manual (0 to 28 step)
Max. Gain Limit (6 to 28 step)
Mirror / Flip Image Yes
Focus Mode Auto / Manual
Panning/Tilting Range N/A
Panning/Tilting Speed N/A
Preset N/A
Field of View (Horizontal, Wide) Approx. 63.7° (WIDE END) / 2.3° (TELE END)
Image Compensation Day & Night function
Video Output 3G/HD-SDI x1
Tally LED Dual color (Red, Green)
Filter M52.0 x 0.75 Thread with UV Protection
RoHS Compliant
Remote Control Interface and Transmit Distance RS-485: Transmit up to 1200m
F/W Update Ethernet
IR Control N/A
Camera Control Uni t N/A

1080P Full HD resolution.
20x optical zoom with a maximum aperture of F1.8. The camera gain setting of 0.05 LUX is sufficient for video production with a smooth PTZ control.
H.264/H.265/Motion-JPEG compression through RJ-45 connection
RTMP streaming to facebook and youtube
Regular 3G SDI output for uncompressed video up to 1080P
Controllable by VISCA/Pelco-C/Pelco-D
Tally lights for broadcast level applications.
The camera is only 6.4 inch long facilitating setup in all environments.
Cold shoe mount for connecting an external LED light or monitor.
