Datavideo 4K 17 Inch ScopeView Production Monitor

OVERVIEW

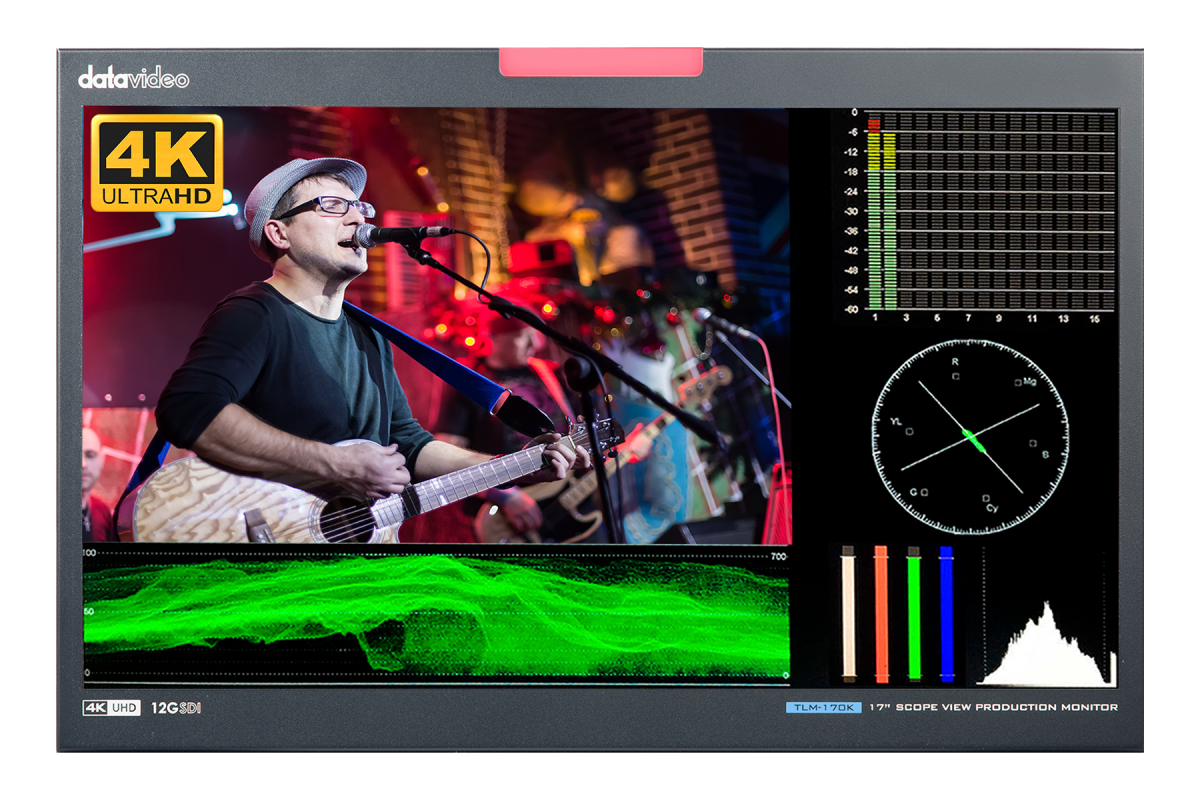

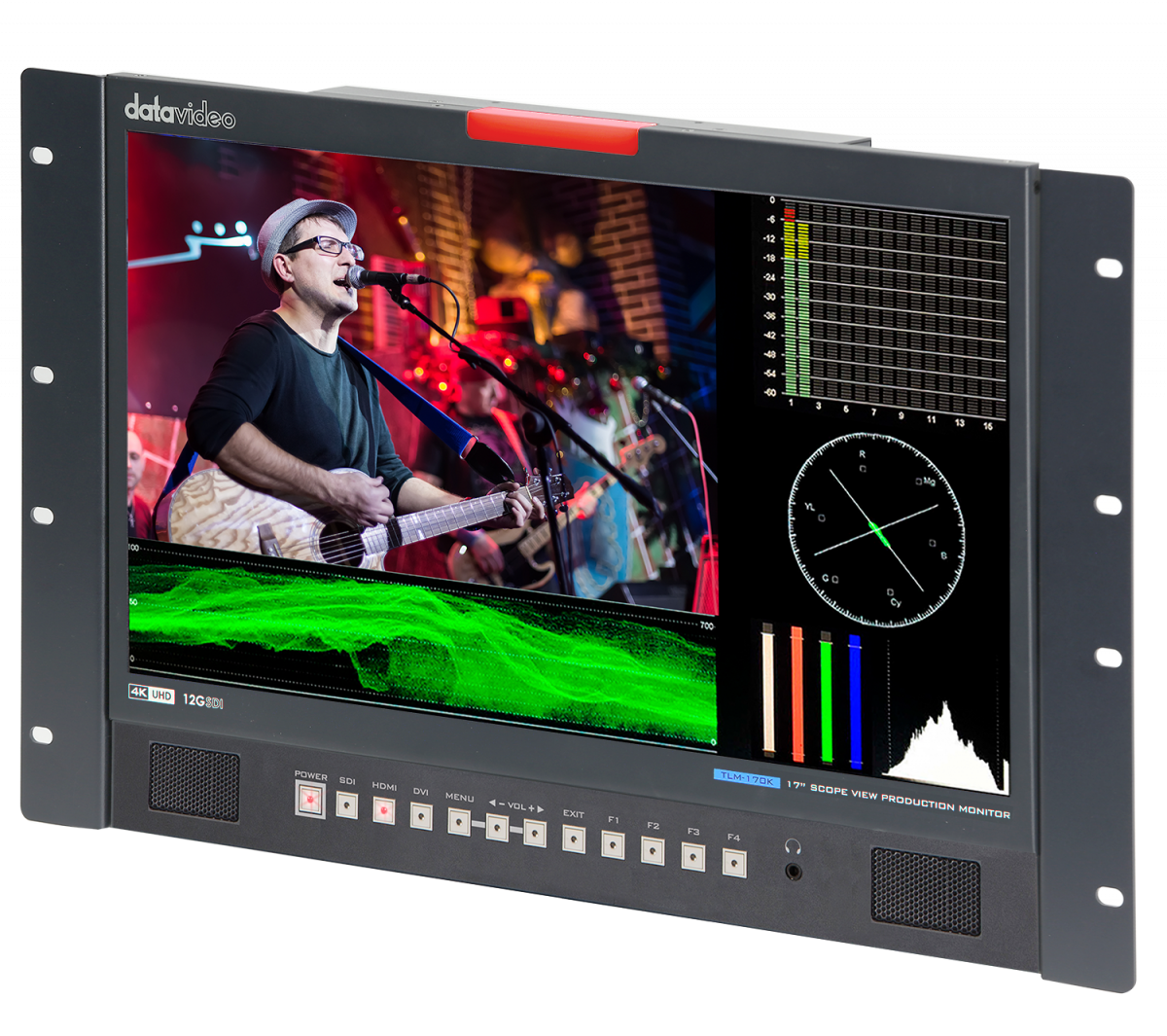

The TLM-170K is a professional desktop monitor with a 17-inch 4K UHD LCD display. It features a 3840 x 2160px IPS panel with a wide 178 degrees viewing angle, a brightness of 300 cd/m2 and a contrast ratio of 1000:1. The monitor supports DCI 4K and Ultra HD signals with its 12G-SDI and HDMI 2.0 inputs and loop-through outputs. It also offers a range of useful monitoring features such as waveform, vector scope, focus peaking, false color, histogram, peaking, zoom, screen markers, image flip, and more. This makes it an ideal choice for broadcast and live production applications.

The TLM-170K series stands out with its spectacular 4K resolution, high brightness, and contrast. The Ultra HD panel with 8 million pixels provides four times the details of a Full HD panel, making it perfect for showcasing 4K HDR content. It supports various input and output configurations, including 12G-SDI, HDMI 2.0, and loop-through options. The monitor also comes with a range of built-in functions such as YRGB peak, time code, waveform, vector scope, audio vector, focus peaking, zoom, pixel to pixel, exposure, histogram, image flip, camera log, HDR/SDR, and more. Additionally, it includes a tally light, making it a great choice for live production.

SUMMARY
Screen Size: 17 Inch
Resolution: 3840 x 2160
Inputs:
12G-SDI
HDMI
INCLUDED IN BOX
1 x TLM-170K product
1 x AD Switch DC 12V
1 x Monitor Stand
2 x Velcro

About The Datavideo 4K 17 Inch ScopeView Production Monitor
The TLM-170K is a desktop 17-inch 4K UHD LCD monitor which comes with an UHD 3840 x 2160px IPS panel. The panel has a 178 degrees wide viewing angle and a brightness of 300 cd/m2 and 1000:1 contrast ratio. The field monitor features the 12G-SDI and HDMI 2.0 inputs with loop-through outputs, supporting up to DCI 4K and Ultra HD signals on both input and output.

The TLM-170K series have a variety of professional and helpful monitoring features, including waveform, vector scope, focus peaking, false color, histogram, peaking, zoom, screen markers, image flip, and more. Moreover, it also supports HDR for HLG and SMPTE 2084, and the presets of color space include Rec 709 and DCI P3. The TLM-170K series are ideal for broadcast and live production applications.

Spectacular 4K Resolution High Brightness and Contrast

The TLM-170K series apply superior Ultra HD 3840 x 2160px IPS panel. The high brightness and high contrast panel provides 8 million pixels resolution which is four times the details than Full HDpanel. The monitor is ideal for presenting 4K HDR (High Dynamic Range) content, revealing the ultimate in detail and clarity for stunning images.

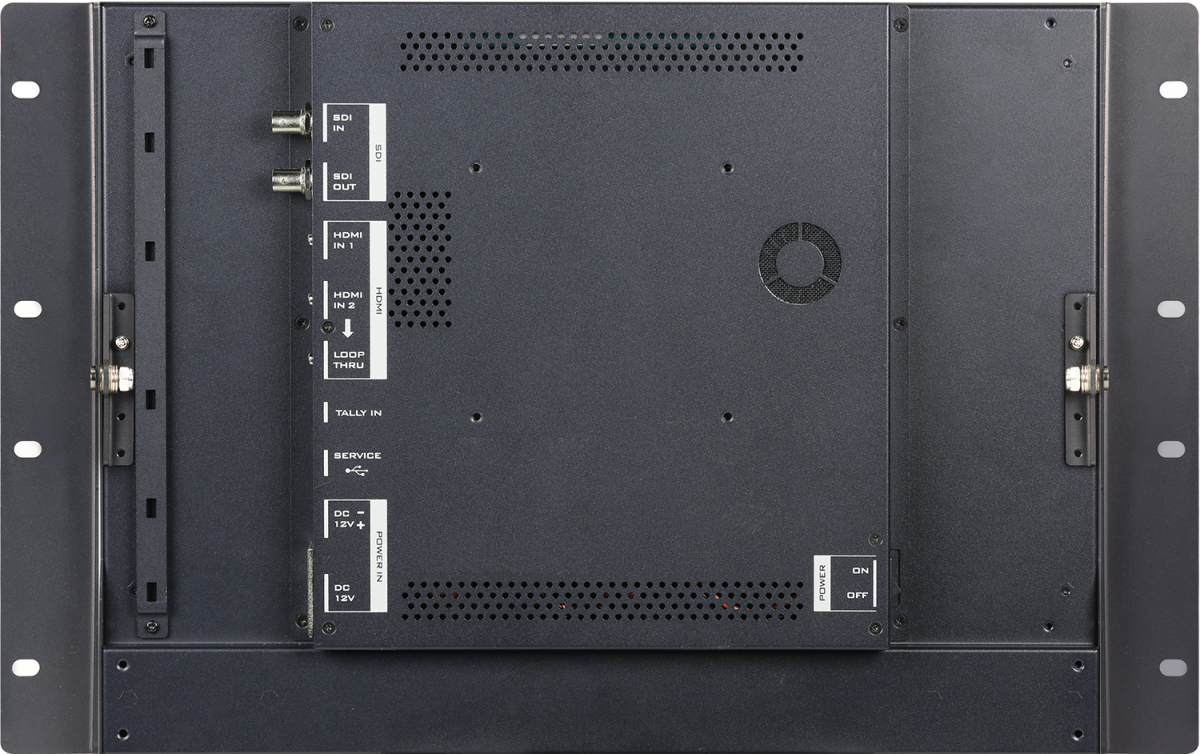

Supports Multiple Input and Output Configurations

1 x 12G-SDI, 2 x HDMI (HDMI 2.0) inputs;
1 x 12G-SDI loop-through, 1 x HDMI (HDMI 2.0) loop-through

Various Built-In Functions

Support column (YRGB peak), time code, waveform, vector scope, audio vector, focus peaking, zoom, pixel to pixel, exposure, histogram, image flip, camera log, HDR / SDR, and more.

Tally Light

Tally light included. Best use for live production.

Model Number TLM-170K
Screen 17.3″ LED Backlit
Chassis Tabletop
Resolution 3840 × 2160
Viewing Angle(H) +89/-89°
(V) +89/-89°
Luminance/Contrast 300cd/m²
1000:1
Video Inputs 1 x 12G SDI
2 x HDMI (2.0)
Loop Through 1 x 12G SDI
1 x HDMI (2.0)
Supported Input Resolutions
SDI: 4096x2160p (23.98/24/25/29.97/30/50/59.94/60)
3840x2160p (23.98/24/25/29.97/30/50/59.94/60)
4096x2160Psf (23.98/24/25/29.97/30)
3840x2160Psf (23.98/24/25/29.97/30)
1920x1080p (23.98/24/25/29.97/30/50/59.94/60)
1920x1080i (50/59.94/60)
1920x1080Psf (23.98/24/25/29.97/30)
1280×720p (23.98/24/25/29.97/30/50/59.94/60) 525i, 625i
HDMI:
4096x2160p (23.98/24/25/29.97/30/50/59.94/60)
3840x2160p (23.98/24/25/29.97/30/50/59.94/60)
1920x1080p (23.98/24/25/29.97/30/50/59.94/60)
1920x1080i (50/59.94/60)
1280×720p (23.98/24/25/29.97/30/50/59.94/60)
720 x480i (NTSC), 720 x576i (PAL)
640 x800, 800 x600, 1024 x768, 1280 x800
Aspect Ratio 16:9, 4:3
Aspect Marker YES
Safty Marker YES
Tally LED Live (Red)
Cued (Green)
Audio In/Out Input: Embedded Audio (48KHz sampling)
Output: Analog stereo (Phone Jack)
Speaker x 2 (3W)
Special Features waveform,
vector scope,
Focus Peaking,
False Color,
Exposure (Zebras),
Histogram,
HDR / SDR,
Time Code,
Audio Vector,
Camera Log,
Gamma, Marker,
Pixel to Pixel,
Zoom,
H/V Delay,
DSLR,
Freeze,
Image Flip,
Check Field,
Level Meter,
Color Bar,
Color Calibration.
Dimension (WxHxD) 403 x 305 x 37 mm
Weight 5.2kg
Operating Temp. Range 0~40 °C
Power DC 12V, 40.1W
What’s in the Box 1 x TLM-170K product
1 x AD Switch DC 12V
1 x Monitor Stand
2 x Velcro
