Overview
The 4K 60Hz HDR technology offers higher image quality with lower latency, meeting strict broadcast-grade requirements. It supports 10-bit with 4:2:2 chroma sampling rate and has a transmitter with 12G-SDI input and loop output, as well as a receiver with dual 12G-SDI outputs. It is compatible with various 4K professional cameras and has a transmission range of up to 500 metres, which can be extended with optional panel antennas. Additionally, it features voice intercom to improve communication efficiency between the director and cameraman, channel scan for easy channel selection, and PTZ camera control through RS232/422 transparent transmission. Its sandwich structure allows for simultaneous power up of the transmitter and camera.
The 4K 60Hz HDR technology offers a range of features to enhance image quality and communication in professional broadcasting settings. With its high image quality, low latency, and compatibility with various 4K cameras, it meets strict broadcast-grade requirements. Its extended transmission range and optional panel antennas make it suitable for various setups. The voice intercom, channel scan, and PTZ camera control features further improve communication and efficiency during broadcasts. Its sandwich structure also allows for convenient simultaneous power up of the transmitter and camera.
Included in box
1x Transmitter
1x Receiver
10x Antenna
1x Power Adapter
1x USB OTG Adapter
2x 12G-SDI Cable
2x D-Tap to 4-Pin XLR Adapter
1x Case
1x Manual

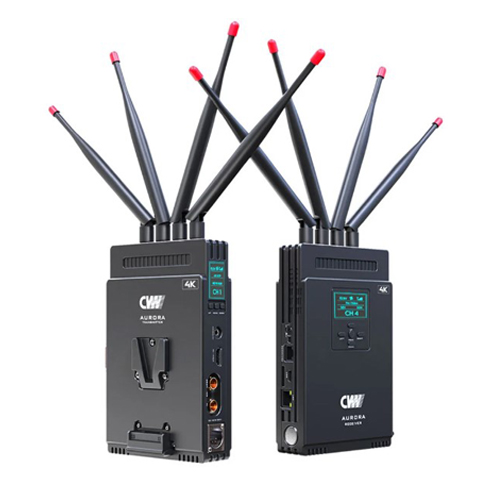

About the CVW Aurora 4K Video Transmission System
4K 60Hz HDR
Higher image quality with lower latency
10-bit with 4:2:2 chroma sampling rate
Meet strict broadcast-grade requirements
Transmitter: 12G-SDI input and loop output
Receiver: Dual 12G-SDI outputs
Compatible with a variety of 4K professional cameras
Up to 500 metres transmission range
The range can be significantly extended by optional panel antennas
Voice Intercom
Improve the communication efficiency between the director and the cameraman
Channel Scan
Easy to find out the best available channel
PTZ Camera Control
The RS232/422 transparent transmission function of the system can support the pan-tilt-zoom (PTZ) camera control
Sandwich Structure
Can easily power up the transmitter and the camera simulatneously
Frequency 5.1-5.8 GHz
Antenna Mode 4×4 MIMO and Beamforming, 5dBi External antenna
Modulation Mode OFDM
Transmission power 23dBm /
Network Encryption WPA2/WPS
Streaming Protocol RTSP
Transmission Range 500m (50Mbps bitrate, Line-of-Sight)
Transmission Latency 70ms
Video Bitrate Range 20-60Mbps
Video Compression Format H.265 encoding/decoding
Video Resolution SDI resolution:
3840×2160 23.98/24/25/29.97/30/50/59.94/60Hz
1080P 23.98/24/25/29.97/30/50/59.94/60Hz(A&B)
1080I 50/59.94/60Hz
1080PsF 23.98/24/25/29.97/30Hz
720P 50/59.94/60Hz
HDMI resolution
3840×2160 23.98/24/25/29.97/30/50/59.94/60Hz
1080P 23.98/24/25/29.97/30/50/59.94/60Hz
1080I 50/59.94/60Hz
720P 50/59.94/60Hz
Audio Format MPEG-AAC sampling rate 48KHz bits: 16 bits
Power Consumption (Transmitter) 16W
Power Consumption (Receiver) 13W
Operating Voltage 9-36V
Operating Temperature -10°C to +55°C
