CoreSWX Powerbase Edge Snap PD Pro Kit – BMPC

Overview
The CoreSWX Powerbase Edge Snap PD Pro Kit for the BMPC includes a revolutionary compact and versatile battery pack that redefines power solutions in cinematic production. The Edge Snap features a unique snap-together design for extended power capabilities, with the ability to power up to four accessories concurrently. The hot-swappable and stackable design allows for quick and effortless addition or removal of packs, while the PD Pro ports enable efficient charging and parallel charging of multiple packs. The Edge Snap QRC plate enhances mounting versatility, offering a multitude of mounting options for filmmakers to capture the perfect shot without power limitations.

The PD Pro to Blackmagic Design 2-Pin Connector Cable provides a reliable link between the PD Pro power source and Blackmagic Design Pocket cameras, ensuring efficient performance in demanding environments. Constructed with durable materials, this cable guarantees secure connections for dependable power solutions that enhance creative workflows. Cores PD Pro is a versatile power solution for cinematic production, offering a compact form, versatile connectivity options, and unparalleled convenience for modern video production professionals.

Summary
Battery Capacity: 49Wh
Battery Capacity: 0-50Wh
Battery Indicator: Yes
Battery Mount / Type: SNAP Stacking
Battery Technology: Li-ion
Voltage:
12v
15v
20v
24v
28v
9V

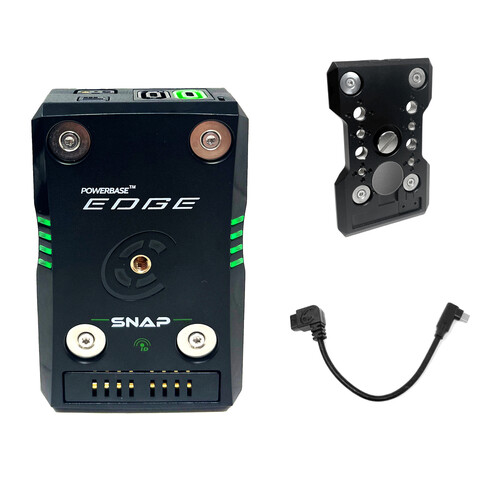

Included in box
1x Powerbase Edge Snap
1x Edge Snap Quick Release Plate
1x CoreSWX PD Pro to 2pin BMD Cable

About the CoreSWX Powerbase Edge Snap PD Pro Kit – BMPC
Please Note: Only 1x battery included, images are used for illustrative purposes only.

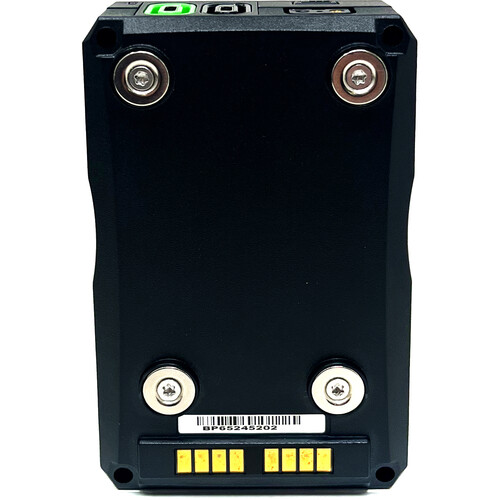

Powerbase Edge Snap

Enter the realm of cutting-edge power solutions with the Powerbase Edge Snap a revolutionary concept redefining the standards in cinematic production. Designed as a compact and versatile battery pack, the Edge Snap revolutionizes the way filmmakers power their equipment.

At the heart of the Edge Snap is its unique snap-together feature, allowing multiple units to be seamlessly connected in parallel to provide extended power capabilities. This innovative concept not only streamlines power management but also ensures uninterrupted operation of every accessory in the cinematic production market.

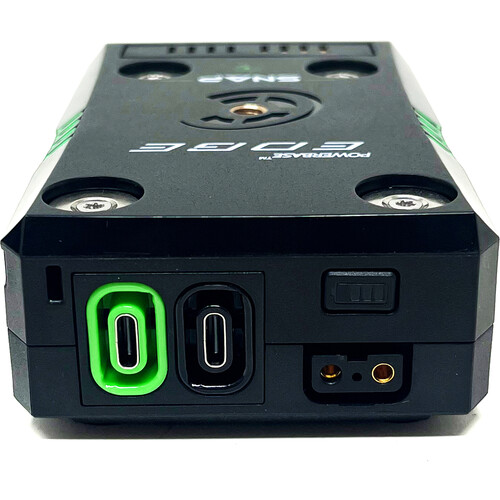

With the incorporation of Core’s groundbreaking new AUX connection, PD Pro, the two PD Pro taps on the pack boast the capacity to output voltages ranging from 5V to 28V. Coupled with two standard ptaps, the Edge Snap offers unparalleled flexibility, empowering users to power up to four accessories concurrently. Be it cameras, lights, monitors, or other indispensable equipment, the Edge Snap ensures dependable and consistent power delivery, ensuring seamless operation to keep your production running seamlessly.

The hot-swappable and stackable design of the Edge Snap enables quick and effortless addition or removal of packs, ensuring continuous power supply to accessories while allowing for convenient charging. Additionally, the PD Pro ports facilitate charging via USBC-PD, while the innovative stickability feature enables parallel charging of multiple packs through a single USBC-PD charge connection, further enhancing efficiency and convenience.

Moreover, while the Snap packs feature one 1/4-20 connection, the Edge Snap QRC plate(sold separately) allows the packs to be mounted through a multitude of 1/4-20 and 3/8 anti-rotational connections, along with both 1/4-20 threads to attach to compact handheld DSLR/ cinema cameras or a standard V-lock shoe mechanical mount for a wide-array of mounting options. A wrap-around RGB LED power indicator allows you to always know your battery status, and you can colour code the packs for various rig setups.

Each pack is equipped with a Voltbridge iD chip, to access accumulated battery data, FW data, along with increased battery functionality. Simply wave your phone near the pack to access vital stats.

The Powerbase Edge Snap stands as a testament to innovation in power solutions for cinematic production, offering a super compact form, versatile connectivity options, and unparalleled convenience. Whether on set or on location, the Edge Snap empowers filmmakers to prioritize capturing the perfect shot without being encumbered by power limitations. Truly, it’s the evolution of production battery packs – a highly versatile tool for the modern video production professional.

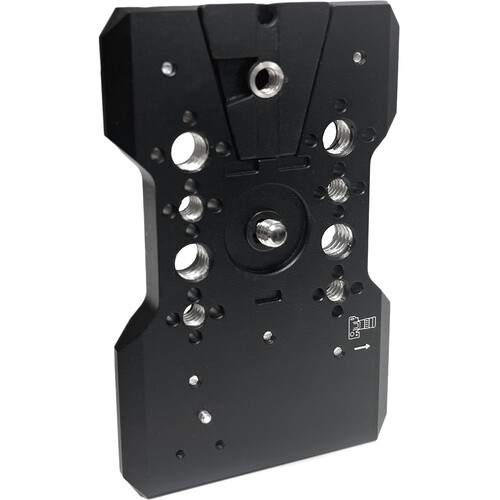

Edge Snap Quck Release Plate

The powder-coated aluminium Edge Snap QRC plate is an accessory that enhances the mounting versatility of Edge Snap packs. While the Powerbase Edge Snap packs themselves come with a single 1/4-20 connection, the Edge Snap QRC plate takes mounting options to the next level.

By utilizing the Edge Snap QRC plate, users gain access to a multitude of mounting possibilities. It enables packs to be securely mounted through various 1/4-20 and 3/8 anti-rotational connections, providing enhanced stability and reliability.

Moreover, the Edge Snap QRC plate features both 1/4-20 threads and a standard V-lock shoe mechanical mount. This means that it can be effortlessly attached to compact handheld DSLR or cinema cameras, offering filmmakers a wide array of mounting options to suit their specific shooting needs.

Whether you need to mount Edge Snap packs onto tripods, rigs, gimbals or handheld setups, the Edge Snap QRC plate ensures compatibility and reliability, allowing filmmakers to focus on capturing the perfect shot without worrying about their power source.

PD Pro to Blackmagic Design 2-Pin Connector Cable

Elevate your filmmaking and video production with the PD Pro to Blackmagic Design 2-Pin Connector Cable, engineered for seamless power connectivity. This high-quality cable provides a reliable link between your PD Pro power source (Powerbase Edge Snap or Hypercore G3 batteries) and the Blackmagic Design Pocket cameras, ensuring efficient performance in the most demanding environments.

Constructed with durable materials, it guarantees secure connections that withstand the rigors of professional use. Trust the PD Pro to Blackmagic Design 2-Pin Connector Cable for dependable power solutions that enhance your creative workflow.

Technical Note

Core’s PD Pro is a highly adaptable power platform designed to support a wide range of auxiliary video and audio devices, offering flexible power output solutions tailored to various production needs. While the PDP-USBC cable allows the connected device to determine the necessary voltage, all other PD Pro cables deliver a fixed voltage pre-set by Core for each specific application. These fixed outputs are optimized to ensure peak performance for your devices.

It’s important to verify that your devices can handle the fixed voltage provided by PD Pro cables, similar to how you would with an unregulated P-Tap cable. For example, while unregulated P-Tap cables may output a wide voltage range (11-17V DC), a PD Pro cable designed for 12V 2-pin LEMO input devices consistently provides a regulated 15V output. This mid-range voltage is carefully calibrated for balance and efficiency, ensuring neither excessively high nor low output, maximizing device stability.

We are continuously expanding our list of compatible devices and developing new cables to meet the needs of all auxiliary production equipment, including future fixed 12V options for narrow-range devices. If you have any questions, concerns, or don’t see your device listed, feel free to contact us. We’re committed to bringing you into the future of auxiliary production power with PD Pro as safely and effectively as possible.

Powerbase Edge Snap
Mount Type SNAP Stacking
Output Ptap 2x ptap DC 11-16.8v
USB-C PD Charge Input Up to 100w
USB-C PD PRO Output DC 5v/9v/12v/15v/20v/24v/28v, 2x 90watt
Dims 4.46” x 2.83” x 1.38”
Weight 0.83lbs
Edge Snap QR Plate
Mount Type SNAP Stacking
Material Powder Coated Aluminium
Dims 4.48” x 2.83” x 0.35”
Weight 0.32lbs.
PD Pro to Blackmagic Design 2-Pin Connector Cable
Length 24″
Voltage 12v
Compatibility Blackmagic Design Pocket 4K/6K/6K Pro

Powerbase Edge Snap: Redefining cinematic production standards with this revolutionary power solution.
Unique snap-together stacking feature for seamless parallel connection, extending power capabilities, increasing max load output and streamlining management.
Incorporates Core’s PD Pro with two PD Pro taps (5V to 28V) and two standard 12V ptaps for unparalleled flexibility.
Empowers concurrent powering of up to four accessories, ensuring consistent power delivery to essential equipment.
Hot-swappable, stackable design for continuous power supply and convenient charging on set.
PD Pro ports facilitate USBC-PD charging, with stackability enabling parallel charging for multiple packs.
PD Pro Aux ports are 100% USB-C PD compatible.
Wrap-around RGB LED power indicator for easy battery status monitoring and colour-coded rig setups.
Voltbridge iD chip enables access to vital battery data and increased functionality via smartphone connectivity.
Compact form, versatile connectivity, and unparalleled convenience make Edge Snap the evolution of production battery packs.
