CoreSWX Powerbase Edge Snap And TA4 Cable Kit

Overview
The Powerbase Edge Snap is a compact, modular battery pack designed for cinematic production, allowing filmmakers to connect multiple units seamlessly for extended power. It features innovative snap-together functionality and PD Pro ports, offering power flexibility across multiple devices, with outputs ranging from 5V to 28V. Equipped with hot-swappable and stackable design, it enables continuous power supply and convenient charging via USB-C PD. The Edge Snap QRC plate and LED power indicator further enhance usability for various setups, while Voltbridge iD provides real-time battery data access. Ideal for powering cameras, lights, and monitors, the Edge Snap ensures reliable performance and adaptability for professional video production.

The PD Pro Cable with a 4-pin TA4 connector offers secure power to audio equipment, supporting SMBUS telemetry for consistent monitoring. Core’s PD Pro platform supports various auxiliary devices with both fixed and adaptive voltages, optimizing device performance while expanding compatibility across production equipment.

Summary
Battery Capacity: 49Wh
Battery Capacity: 0-50Wh
Battery Indicator: Yes
Battery Mount / Type: SNAP Stacking
Battery Technology: Li-ion
Voltage:
12v
15v
20v
24v
28v
9V
Included in box
1x Powerbase Edge Snap
1x PD Pro Cable to 4-pin TA4 Audio Power Connector

About the CoreSWX Powerbase Edge Snap And TA4 Cable Kit
Please Note: Only 1x battery included, images are used for illustrative purposes only.

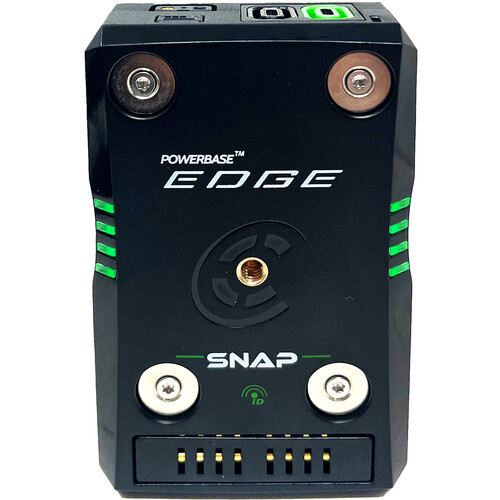

Powerbase Edge Snap

Enter the realm of cutting-edge power solutions with the Powerbase Edge Snap a revolutionary concept redefining the standards in cinematic production. Designed as a compact and versatile battery pack, the Edge Snap revolutionizes the way filmmakers power their equipment.

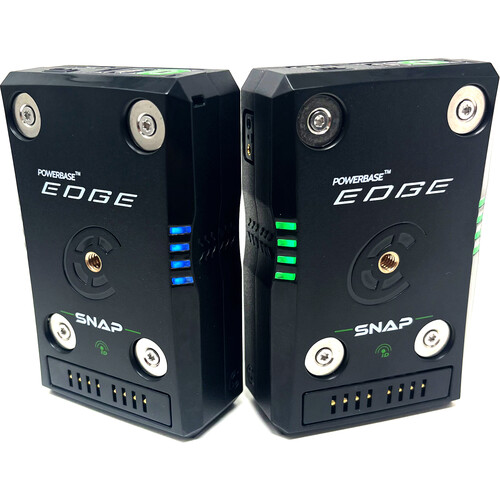

At the heart of the Edge Snap is its unique snap-together feature, allowing multiple units to be seamlessly connected in parallel to provide extended power capabilities. This innovative concept not only streamlines power management but also ensures uninterrupted operation of every accessory in the cinematic production market.

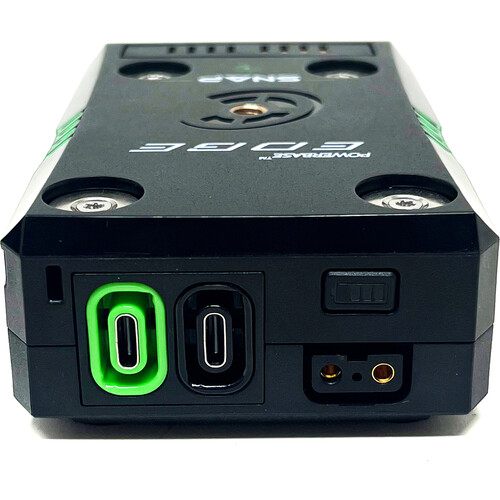

With the incorporation of Core’s groundbreaking new AUX connection, PD Pro, the two PD Pro taps on the pack boast the capacity to output voltages ranging from 5V to 28V. Coupled with two standard ptaps, the Edge Snap offers unparalleled flexibility, empowering users to power up to four accessories concurrently. Be it cameras, lights, monitors, or other indispensable equipment, the Edge Snap ensures dependable and consistent power delivery, ensuring seamless operation to keep your production running seamlessly.

The hot-swappable and stackable design of the Edge Snap enables quick and effortless addition or removal of packs, ensuring continuous power supply to accessories while allowing for convenient charging. Additionally, the PD Pro ports facilitate charging via USBC-PD, while the innovative stickability feature enables parallel charging of multiple packs through a single USBC-PD charge connection, further enhancing efficiency and convenience.

Moreover, while the Snap packs feature one 1/4-20 connection, the Edge Snap QRC plate(sold separately) allows the packs to be mounted through a multitude of 1/4-20 and 3/8 anti-rotational connections, along with both 1/4-20 threads to attach to compact handheld DSLR/ cinema cameras or a standard V-lock shoe mechanical mount for a wide-array of mounting options. A wrap-around RGB LED power indicator allows you to always know your battery status, and you can colour code the packs for various rig setups.

Each pack is equipped with a Voltbridge iD chip, to access accumulated battery data, FW data, along with increased battery functionality. Simply wave your phone near the pack to access vital stats.

The Powerbase Edge Snap stands as a testament to innovation in power solutions for cinematic production, offering a super compact form, versatile connectivity options, and unparalleled convenience. Whether on set or on location, the Edge Snap empowers filmmakers to prioritize capturing the perfect shot without being encumbered by power limitations. Truly, it’s the evolution of production battery packs – a highly versatile tool for the modern video production professional.

PD Pro Cable to 4-pin TA4 Audio Power Connector

The PD Pro Cable to 4-pin TA4 Audio Power Connector is designed to provide a reliable power solution for your audio equipment. The PD Pro Cable is engineered with a rugged and reliable design, using high-quality materials to ensure consistent and secure connections. This high-quality cable allows you to efficiently power devices equipped with a 4-pin TA4 connector, delivering consistent power from the PD Pro AUX connection and it supports SMBUS battery telemetry.

Perfect for field recording and production environments, the durable, flexible cable ensures seamless integration with professional-grade audio systems.

Technical Note

Core’s PD Pro is a highly adaptable power platform designed to support a wide range of auxiliary video and audio devices, offering flexible power output solutions tailored to various production needs. While the PDP-USBC cable allows the connected device to determine the necessary voltage, all other PD Pro cables deliver a fixed voltage pre-set by Core for each specific application. These fixed outputs are optimized to ensure peak performance for your devices.

It’s important to verify that your devices can handle the fixed voltage provided by PD Pro cables, similar to how you would with an unregulated P-Tap cable. For example, while unregulated P-Tap cables may output a wide voltage range (11-17V DC), a PD Pro cable designed for 12V 2-pin LEMO input devices consistently provides a regulated 15V output. This mid-range voltage is carefully calibrated for balance and efficiency, ensuring neither excessively high nor low output, maximizing device stability.

We are continuously expanding our list of compatible devices and developing new cables to meet the needs of all auxiliary production equipment, including future fixed 12V options for narrow-range devices. If you have any questions, concerns, or don’t see your device listed, feel free to contact us. We’re committed to bringing you into the future of auxiliary production power with PD Pro as safely and effectively as possible.

Powerbase Edge Snap
Mount Type SNAP Stacking
Output Ptap 2x ptap DC 11-16.8v
USB-C PD Charge Input Up to 100w
USB-C PD PRO Output DC 5v/9v/12v/15v/20v/24v/28v, 2x 90watt
Dims 4.46” x 2.83” x 1.38”
Weight 0.83lbs
PD Pro Cable to 4-pin TA4 Audio Power Connector
Length 24″
Compatibility Sound Devices 888 Mixer
Deity Microphones SPD-1 Smart Power Distributor

Powerbase Edge Snap: Redefining cinematic production standards with this revolutionary power solution.
Unique snap-together stacking feature for seamless parallel connection, extending power capabilities, increasing max load output and streamlining management.
Incorporates Core’s PD Pro with two PD Pro taps (5V to 28V) and two standard 12V ptaps for unparalleled flexibility.
Empowers concurrent powering of up to four accessories, ensuring consistent power delivery to essential equipment.
Hot-swappable, stackable design for continuous power supply and convenient charging on set.
PD Pro ports facilitate USBC-PD charging, with stackability enabling parallel charging for multiple packs.
PD Pro Aux ports are 100% USB-C PD compatible.
Wrap-around RGB LED power indicator for easy battery status monitoring and colour-coded rig setups.
Voltbridge iD chip enables access to vital battery data and increased functionality via smartphone connectivity.
Compact form, versatile connectivity, and unparalleled convenience make Edge Snap the evolution of production battery packs.
