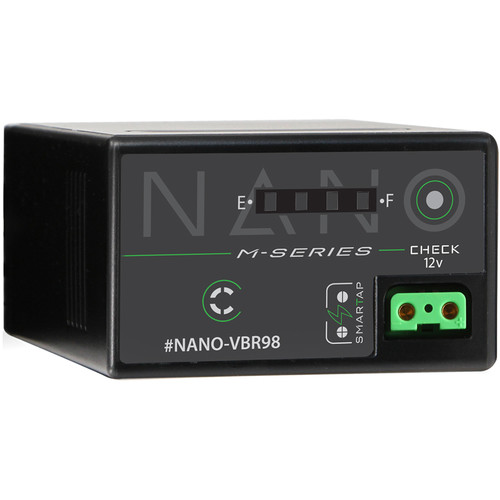

CoreSWX Nano-VBR98 Battery

Overview
The Nano-M series is a new line of power options designed for Small Form Cine cameras, with the Nano-VBR98 specifically made for select Panasonic Camcorders like the EVA1. This “pro” style option features a 4-stage LED gauge and a P-tap, which is a Smart Tap that can carry SMBUS/smart battery data for future integration. Additionally, these packs can be charged on OEM Panasonic chargers, making them convenient and easy to use.

The inclusion of a P-tap in the Nano-M series is a significant feature, as it eliminates the need for special cabling and serves as a standard powertap. This makes the Nano-VBR98 a practical and versatile power option for professional filmmakers and videographers using select Panasonic Camcorders.

Summary
Battery Capacity: 98Wh
Battery Capacity: 50-98Wh
Battery Indicator: Yes
Battery Mount / Type: Panasonic VW-VB
Battery Technology: Li-ion
Voltage: 7.4V
Included in box
1x Nano-VBR98 Battery

About the CoreSWX Nano-VBR98 Battery

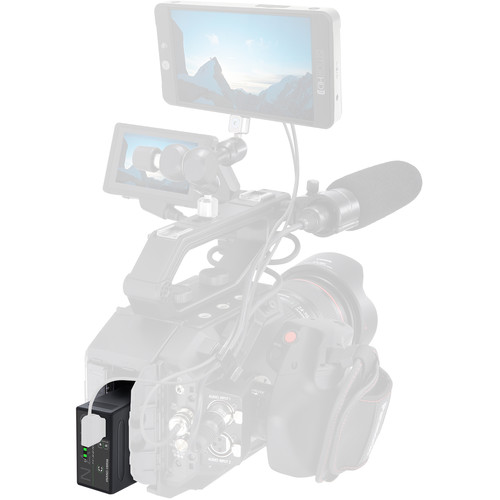

The Nano-M series addresses the need for a more “pro” style option of power for Small Form Cine cameras. The Nano-VBR98 is specifically designed for select Panasonic Camcorders such as the Panasonic EVA1. They are equipped with a 4-stage LED gauge and a P-tap. The P-Tap is a Smart Tap that is able to carry SMBUS/smart battery data which is a feature part of future integration. This power tap will serve as a standard powertap without need of special cabling.

These packs charge on OEM Panasonic chargers.

Capacity 98wh (7.4v, 13200mah)
Size 4″ x 2.6″ x 1.65″
Weight 0.9lbs
Normal Runtime 5hrs. based off of Panasonic EVA1 draw

“Pro” style option of power
Designed for select Panasonic Camcorders
4-stage LED gauge and a P-tap
These packs charge on OEM Panasonic chargers.
