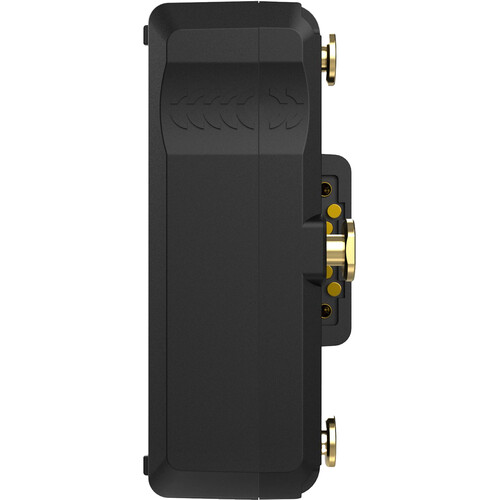

CoreSWX NANO G50 Battery – 3STUD

Overview
The Nano Micro 50 is a compact and lightweight battery pack designed for powering on-board monitors, recorders, wireless transmitters and other accessories. It features a 14.8v, 49wh capacity and utilizes lithium-ion battery chemistry. The pack is also equipped with a p-tap for auxiliary output and a 5V USB for powering and charging mobile devices. With a slim profile of only 1.49”, it is ideal for gimbal mounting and other applications where space is limited. The 4-state LED gauge allows for easy monitoring of remaining power.

Weighing in at just 0.8lbs, the Nano Micro 50 is one of the smallest battery packs on the market. Despite its compact size, it can handle heavier camera powering applications such as RED Komodo and Canon Cinema builds when paired with the appropriate mount plate. The pack has also been UN tested and certified, meeting all necessary regulations for air travel. Additionally, it features an on-board unregulated p-tap and a 5V USB, making it a versatile and convenient power source for various devices. The Core Nano Micro packs are a reliable and portable option for powering your equipment on the go.

Summary
Battery Capacity: 49Wh
Battery Capacity: 0-50Wh
Battery Indicator: Yes
Battery Mount / Type: Gold Mount
Battery Technology: Li-ion
Voltage: 14.8v
Included in box
1 x NANO G50 14.8v 49wh Micro 3-Stud Battery Pack w/ P-Tap and USB

About the CoreSWX NANO G50 Battery – 3STUD
The Nano Micro 50 is quite possibly the smallest style pack on the market today. Measuring in at less than 4″ in height and 1.5″ in depth, while weighing a feathery 0.8 lbs., the NANO-G50 is the perfect “grab and go” pack for powering on-board monitors, recorders, wireless tx/rx, etc., while still being able to handle lighter camera powering applications like RED Komodo and Canon Cinema builds when utilizing the proper mount plate.

The 14.8v, 49wh capacity allows for the packs to be transported carry-on without restrictions under IATA, ICAO, and UN regulations. The packs have been UN tested and certified, passing UN38.3 certification.

The Core Nano Micro packs feature an on-board unregulated p-tap which can be used to power most 12vdc devices, as well as doubling as a charge input port. The packs also include a 5V, 3A USB for powering/charging mobile devices, and a 4-stage LED gauge to view remaining power.

Capacity 49Wh(14.8v, 3.3Ah)
Operational Voltage DC 12v-16.8v
Size 2.82″ x 3.93″x 1.49″
Weight 0.8lbs.
Normal Runtime (25w) 1.8hrs.
Load 6A

14.8v 49wh Micro 3-Stud battery pack w/ ptap and USB
Lithium-ion battery chemistry
G-mt with A/B charge compatibility
Ultra Slim at 1.49” providing a very low profile for on-board monitors, gimbal mounting and other accessories
4-state LED gauge
PTap for aux output and 5v USB for powering mobile devices
Capacity: 49Wh(14.8v, 3.3Ah)
Operational Voltage: DC 12v-16.8v
Size: 2.82″ x 3.93″x 1.49″
Weight: 0.8lbs.
Normal Runtime: (25w) 1.8hrs.
Load: 6A
Mount Type: 3-Stud/G-mt
