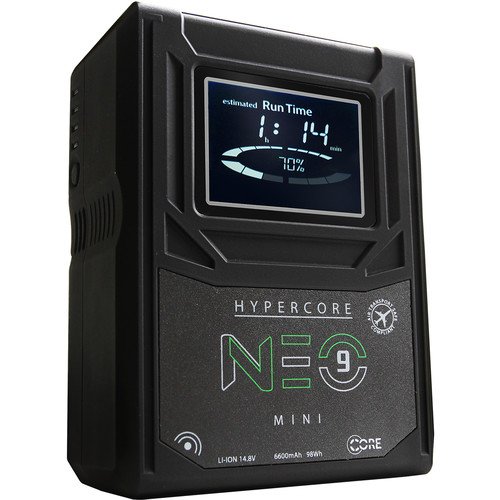

CoreSWX Hypercore NEO Mini 9 – V Mount

Overview
The Hypercore NEO Mini 9 is a powerful 98wh, 14v Lithium Ion battery pack that stands out in the market. It includes all the original features of the award-winning Hypercore line, along with exclusive features unique to the NEO pack. The pack is microprocessor-driven, making it safer and able to transmit runtime and percentage data to your camera’s viewfinder or LCD. The new multipurpose, backlit LCD on the front of the pack displays remaining runtime and charge time, as well as providing access to battery data through the VoltBridgeID app.

The NEO pack is designed with a modular build, similar to the Helix line, which reduces cabling and increases product integrity. The upgraded cell architecture allows for a sustained 16A peak load and 12A continuous load. The pack also features SmartTap and a 5v USB port for charging devices and firmware upgrades. Additionally, the pack is compatible with a variety of chargers, making it a versatile and reliable choice for powering your equipment.

Summary
Battery Capacity: 98Wh
Battery Capacity: 50-98Wh
Battery Indicator: Yes
Battery Mount / Type: V Mount
Battery Technology: Li-ion
Voltage: 14.8v
Included in box
1x Battery

About the CoreSWX Hypercore NEO Mini 9 – V Mount
The Hypercore NEO Mini 9 is the most complete 98wh, 14v Lithium Ion battery pack on the market. Encompassing all the original features of the award winning Hypercore line, with additional features exclusive to NEO.

As with other Core SWX packs, the NEO pack is microprocessor-driven, making them safer as well as supporting the transmission of runtime and percentage data to your camera’s viewfinder or LCD. That same data can also be viewed on the new multipurpose, intuitive backlit LCD on the front of the battery packs. The LCD is multipurpose as it provides remaining runtime based on a 30W dummy load while not in-use, a remaining down to the minute runtime while connected to the device you’re powering, and it even provides remaining charge time while connected to a charger.
Further leveraging the microprocessor, the NEO packs have an RFID transmitter on the front of the packs, so you can easily grab all your battery data stored from the pack on your phone via our VoltBridgeID app available in the app store.

Not only was the NEO line constructed similar to Helix with the new LCD and RFID, it was also constructed in a modular design like Helix, which reduces cabling and maximises product integrity. The pack is put together like building blocks within a very small battery housing, reducing the chance of a failure due to a drop or multiple drops. The modular design also makes it very easy to service as the components are plug and play.

Knowing 10A load delivery doesn’t cut it anymore; the NEO packs have an upgraded cell architecture which can sustain up to 16A peak loads, 12A continuous. In addition, there is SmartTap on the pack allowing you to power any 12vdc device from the p-tap port while also being able to transmit battery data if the device you are using is able to communicate that information. There is also a 5v USB for charging mobile devices, but also offers additional functionality as a fully function firmware upgrade port, so you will never be left behind as Core SWX continue to develop.

Lastly, as with all Core SWX battery packs, they are the most charger compatible on the market. The V-mount offerings will charge on RED, IDX, Sony, etc., and the Gold mount offerings will charge on Anton/Bauer chargers.

Capacity 98Wh (14.8V, 6.6Ah)
Size 3.54” x 4.65” x 1.90”
Weight 1.4lbs.
Normal Runtime (25w) 3.6hrs.
Load 16A/12A

98wh, 14v Lithium Ion battery
16A Peak / 12A continuous load
RFID Voltbridge data
Totally new internal build, more robust and easier to service
SMBUS & RED Data communication to camera
‘Helix’ style LCD
Gold and V-Mount versions available
