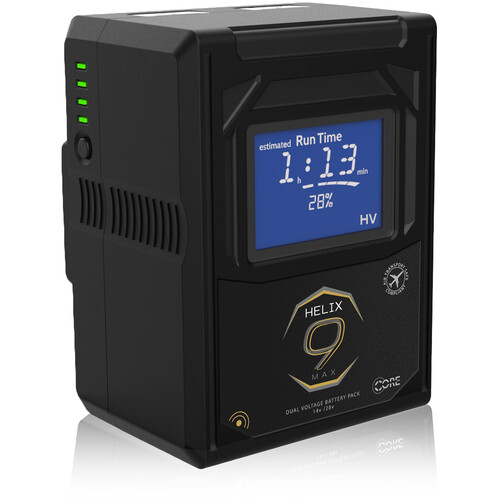

CoreSWX Helix Max 98 3-Stud Battery

Overview
The Helix battery pack is a powerful and versatile option for the cinematic industry. With a voltage output of 14.4v/28.8v and a capacity of 98wh, it offers a wide range of dual voltage output from 11v to 33.6v. The battery pack also features an LCD display, P-Tap for auxiliary output, and a 5v USB port for powering mobile devices. With a robust build and a maximum load of 20A, this battery pack is capable of handling demanding power builds in the cinema industry. It is also UN38.3 certified for easy travel and shipping.

The Helix battery pack utilizes lithium-ion battery chemistry and boasts a runtime LCD and a 2k cycle/2 year warranty. Its unique design allows for nearly lossless power transmission at a 99% efficiency rate, making it one of the most efficient on-board battery systems available. Available in V-mount and 3-Stud, and with the inclusion of ARRIs B-mount protocol, the Helix Max series can cover all your powering needs. With its impressive features and capabilities, it is the most complete on-board battery system offered to the cinematic industry.

Summary
Battery Capacity: 98Wh
Battery Capacity: 50-98Wh
Battery Indicator: Yes
Battery Mount / Type: Gold Mount
Battery Technology: Li-ion
Voltage: 14.4v
Included in box
1x Helix Max 98 3-Stud Battery

About the CoreSWX Helix Max 98 3-Stud Battery
Helix is the most complete on-board battery system ever offered to the cinematic industry. The system encompasses all the features of Hypercore NEO, with the added function of dual 14v/28v* simultaneous voltage output, answering the call for better designed and performing, on-board high voltage solutions.

Leveraging a proprietary, patented technology, Helix is ultra-efficient, providing nearly lossless power transmission at a 99% efficiency rate to high voltage operating equipment. Helix’s unique design allows it to output up to 33.6v, within the top range of high voltage acceptance, thus drawing less current, creating less heat and extending both operational runtime and product longevity.

Now even more robust with a maximum output of 20A(10A at 28.8v HV), the Helix Max series is capable of handling the most demanding power builds in the cinema industry. Available in 98wh and 150wh models, the packs will provide ample runtime in most camera and lighting applications but can also be used in conjunction with a Helix Hotswap plate to double available battery capacity and extend runtimes.

Offered in V-mount and 3-Stud, and with the inclusion of ARRI’s B-mount protocol, the Helix Max series can cover all your powering needs.

Capacity 98Wh (14.8v, 6.6Ah)
Operational Voltage Dual Voltage, DC 11v-16.8v/DC 22v-33.6v
Size 3.54in x 4.65in x 2.38in
Weight 1.8lbs.
Load 20A @ 16.8v, 10A @ 33.6v

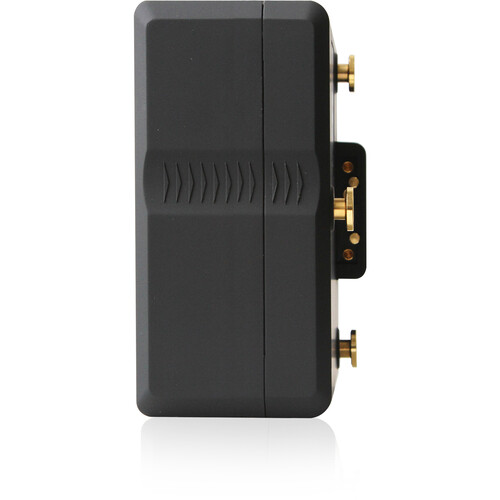

Mount Type 3-Stud, compatible with A/B G-mount

14.4v/28.8v, 98wh battery pack, LCD and w/ ptap and USB, 3-Stud, 20A Max Load – 3-stud
Lithium-ion battery chemistry
Wide range, dual voltage output from 11v to 33.6v
V-mount with SMBUS camera/charger communication
Super robust build with 20A current delivery at 16.8v(LV) and 10A delivery at 33.6v(HV)
Runtime LCD
P-Tap for aux output and 5v USB for powering mobile devices
2k cycles/2 year warranty
UN38.3 certified for ease of travel and shipping without limitations
