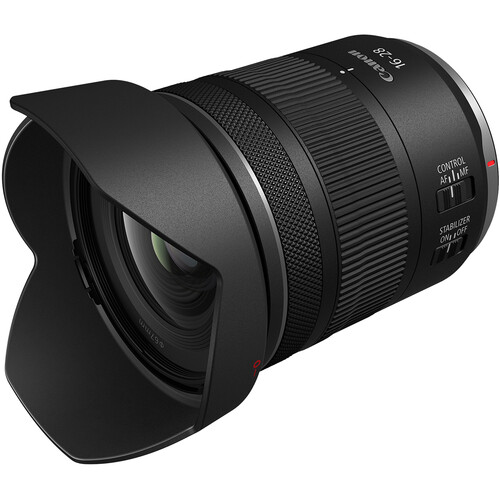

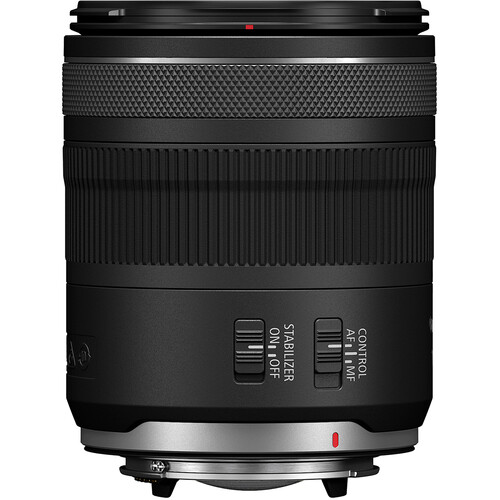

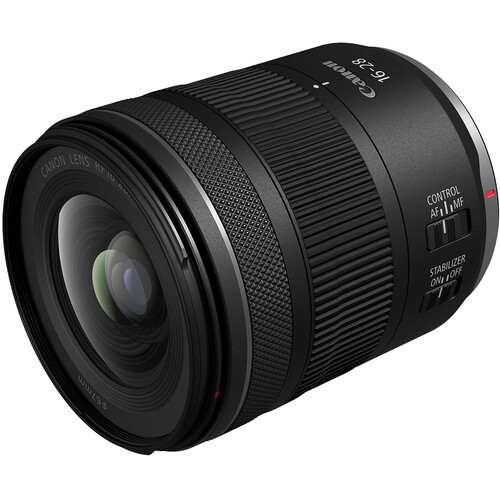

Canon RF 16-28mm F2.8 IS STM

Overview
The Canon RF 16-28mm F2.8 IS STM lens offers ultra-wide 16-28mm zoom with a fast aperture and 5.5-stop image stabilisation in a lightweight and compact size. It is ideal for capturing landscapes, interiors, and wide-angle travel videos or stills. The lens features high-quality optics, a wide aperture for shooting in low light, and a compact design that is great for on-the-go photography.

The RF 16-28mm F2.8 IS STM lens also includes features such as a nine-blade aperture for artistic control, aspheric and UD elements for high image quality, a Leadscrew STM motor for smooth autofocus, and customisable focus/control rings. With near-L series image quality and weather-resistant design, this lens is perfect for photographers looking to capture epic views and stable shots in a variety of conditions.

Summary
Focal Length: 16-28mm
Max Aperture: f/2.8
Lens Type: Ultra Wide
Lens Mount: Canon RF
Filter Thread: 67mm
Weight: 0-2kg
Included in box
RF 16-28MM F2.8 IS STM Lens

Lens Cap E-67 II

Dust Cap RF

User Manual

About the Canon RF 16-28mm F2.8 IS STM
RF 16-28mm F2.8 IS STM – EPIC VIEWS. STABLE SHOTS

The RF 16-28MM F2.8 IS STM is a wide-angle powerhouse that’s packed with technology that offers that special combination of ultra-wide 16-28mm zoom with a fast aperture, coupled with 5.5-stop1 image stabilisation in a lightweight and compact size. Combining high-quality optics with the creative and practical functionality of an f/2.8 aperture, plus a compact size that’s great for working on the move, the RF 16-28MM F2.8 IS STM is ideal for enthusiasts wanting to capture landscapes, interiors and wide-angle travel videos or stills.

Fast, bright, and responsive

See more detail in low light thanks to a wide aperture that inspires a more creative approach to your subject. Shoot at f/2.8 to add depth and extra dimension to your images.

Ultra wide-angle views

Capture wide-angle views effortlessly thanks to a 16-28mm ultra-wide-angle zoom range that lets you get more into a scene. The Canon RF 16-28MM F2.8 IS STM lens offers a sweet spot in performance and practicality with an angle of view that inspires creativity.

A lens built for travelling light

When luggage space is limited, the RF 16-28MM F2.8 IS STM makes a clever choice for travel. Retract the zoom to 91mm for great portability thanks to the lens’ innovative design. And at 445g (approx.) you can leave it on the camera all day.

High quality results that set you apart

Enjoy superb image quality thanks to two aspheric elements and four UD lenses with Super Spectra coatings for incredible clarity. A fast Leadscrew (STM) motor delivers rapid, smooth, and near-silent focusing for both stills and video.

Creative features with a practical edge

Capture striking star-like highlights with a nine-blade aperture and, with 5.5-stops1 of optical image stabilisation, shoot and film handheld to be more innovative on the move, even in low-light.

Explore filmmaking and take your skills further

The RF 16-28MM F2.8 IS STM’s STM technology delivers smooth autofocus transitions, ideal for filming subjects at different distances from each other. Any distortion correction is handled in-camera, too, which keeps the lens small and light, leaving you free to focus on your technique.

A design that can handle your busy life

The RF 16-28MM F2.8 IS STM is small, light, and ready to work in all conditions. With near-L series image quality and a design that can handle rain, moisture and dust2, it’s an ultra-wide-angle zoom that deserves to be taken seriously.

Image size Full Frame
Angle of view (horizontal, vertical, diagonal) 98°-65°
74°10′-46°
108°10′-75°
Lens construction (elements/groups) 16/13
Special optics 4x UD
1x Gmo Aspheric
1x Replica Aspheric
No. of diaphragm blades 9
Minimum aperture 22
Closest focussing distance (m) 0.25 (at 16mm)
0.2 (at 28mm)
Maximum magnification (x) 0.11 (at 16mm)
0.26 (at 28mm)
Control Ring combined / focus
Image stabilizer OIS*1 5.5
Image stabilizer IBIS x OIS*1 8
AF actuator STM
Coatings Super Spectra
Fluorine No
PHYSICAL SPECIFICATIONS
Dust/moisture resistance*3 Yes
Filter diameter (mm) 67
Max. diameter x length (mm)*2 76.5 x 91
Weight (g) 445
ACCESSORIES
Lens cap E-67 II
Lens hood EW-73E
Lens case/pouch LP1116
Rear cap Lens Dust Cap RF
Extender Compatiblity Not compatible

16-28mm ultra-wide zoom: Ultra-wide zoom gives great creative potential
f/2.8 aperture: Fast and bright, perfect for low light shooting
9-blade aperture: For artistic control of bokeh and highlights
Aspheric and UD elements: For high image quality with maximum sharpness
Leadscrew STM motor: For smooth, fast and quiet autofocus
Customisable focus / control ring: For easy customisation and control over camera settings
Image Stabilisation: Up to 5.5-stops1 means you can handhold and get shake-free images without a tripod.
