Canon Power Zoom Adapter PZ-E2

Overview
Power Zoom Adapter PZ-E2 is lightweight and ergonomically designed, fitting comfortably in the hand when attached to the lens and equally versatile when the lens is rig-mounted, or attached to a tripod or gimbal. A zoom speed dial adds an extra level of control. Download the Camera Connect app / EOS Utility software or use the Browser Remote function on compatible cameras to power up and operate the power zoom remotely. Assign zoom operations to custom buttons on compatible cameras. Attach a USB-C external power supply for extended shooting or faster zooming. Use in a wide range of conditions thanks to L-series build quality and advanced weather sealing.

Power up your RF lenses with this optional power zoom adapter. The Power Zoom Adapter PZ-E2 turns a compatible Canon RF zoom into a filmmaking lens which enables a smooth and precise zoom control. With the added flexibility of remote operation when used on compatible cameras, via the Canon Camera Connect app, EOS Utility software or via the Browser Remote function, it’s an excellent way to bring hybrid filmmaking and photography together. Additionally, when used with a camera that supports Canon’s XC Protocol (e.g. EOS C70), then the camera and zoom can be controlled over an IP network as part of a multi-cam system. Smooth power zoom operation. Remote control for flexible operation. Designed for convenient operation.

Included in box
1x Power Zoom Adapter PZ-E2
1x Thumb Rest
1x Hexagon socket head wrench
1x Soft case
1x User manual

About the Canon Power Zoom Adapter PZ-E2
Power up your RF lenses with this optional power zoom adapter. The Power Zoom Adapter PZ-E2 turns a compatible Canon RF zoom into a filmmaking lens which enables a smooth and precise zoom control. With the added flexibility of remote operation when used on compatible cameras, via the Canon Camera Connect app, EOS Utility software or via the Browser Remote function, it’s an excellent way to bring hybrid filmmaking and photography together. Additionally, when used with a camera that supports Canon’s XC Protocol (e.g. EOS C70), then the camera and zoom can be controlled over an IP network as part of a multi-cam system.

Smooth power zoom operation

POWER ZOOM ADAPTER PZ-E2 is lightweight and ergonomically designed, fitting comfortably in the hand when attached to the lens and equally versatile when the lens is mounted to a rig, or attached to a tripod or gimbal. A zoom speed dial adds an extra level of control.

Remote control for flexible operation

Download the Camera Connect, or EOS Utility applications or use Browser Remote with compatible cameras to remotely control and operate the camera and zoom. Remote control over an IP network is possible on supported cameras using Canon’s IP Protocol for multi-cam workflows.

Designed for convenient operation

Assign zoom operations to custom buttons on compatible cameras. Attach a USB-C external power supply for extened shooting times as well as increased speed for zooming on faster moving subjects.

General
Drive Mechanism DC motor and gear reduction mechanism
Zoom Operation Wide (W) and Telephoto (T) buttons (or assign customisable buttons on the camera with compatible cameras)
Remote Operation Via Camera Connect, EOS Utility, Browser Remote, XC Protocol (with compatible cameras)
Zoom Speed
High-speed Mode 1.5 sec to 90 sec*
Normal Mode 3 sec to 90 sec*
*Zoom speed selectable from the Zoom Speed Adjustment Dial
Zoom Mode Switch
Servo Zoom [SERVO]
Manual Zoom [MANU]
Attachment Method Attaches/detaches with Thumb screws (×3)
External Interfaces
USB-C Communication / external PD power
20-pin Interface Power Zoom Adapter PZ-E2B only (for compatible lens zoom/focus demands and Canon’s Zoom Servo Grip ZSG-C10)
Power
Power Supply from Camera Via lens*
Power Supply from Digital Terminal USB-C terminal*
*Cameras using lower power batteries may require external PD power to enable High-speed (zoom) Mode and extended shooting times
Dust/Moisture Resistance Yes (does not fully prevent dust and moisture intrusion)
Size (W x H x D) Approx. 105 x 81 x 60 mm
Weight
PZ-E2 Approx. 155 g (adapter only)
PZ-E2B Approx. 165 g (adapter only)
Accessories
Thumb Rest Included
Soft Case Included
USB Power Adapter PD-E1 Optional
Zoom Servo Grip ZSG-C10 Optional
Zoom Demand ZSD-300D/380D Optional
Focus Demand FPD-400D Optional
Compatible Lens Canon RF 24-105mm F2.8L IS USM Z
RF 70-200mm F2.8L IS USM Z Lens

Power Zoom Adapter PZ-E2 is lightweight and ergonomically designed, fitting comfortably in the hand when attached to the lens and equally versatile when the lens is rig-mounted, or attached to a tripod or gimbal. A zoom speed dial adds an extra level of control.
Download the Camera Connect app / EOS Utility software or use the Browser Remote function on compatible cameras to power up and operate the power zoom remotely.
Assign zoom operations to custom buttons on compatible cameras. Attach a USB-C external power supply for extended shooting or faster zooming.
Use in a wide range of conditions thanks to L-series build quality and advanced weather sealing.

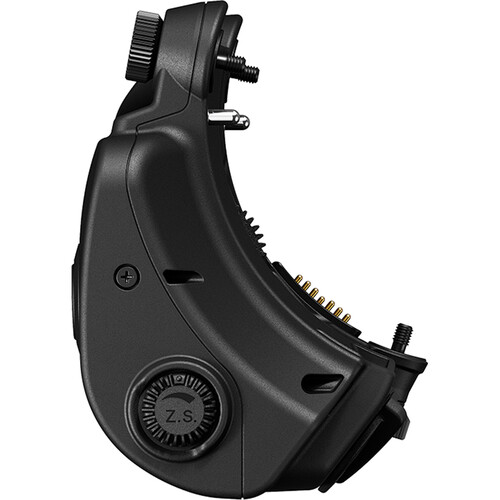

Ergonomic grip – Use comfortably when attached to the lens

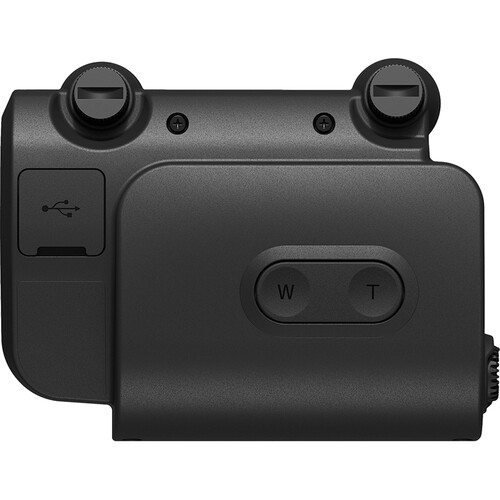

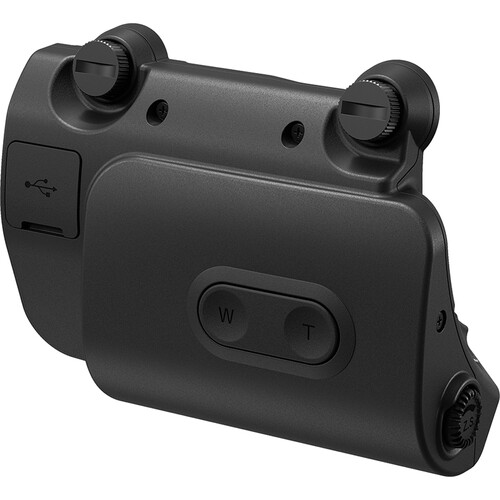

Wide/tele buttons – For smooth zooming
Zoom speed dial – For control over zoom performance
Optional USB power – For extended shooting/faster zooming
