Canon EOS C80 Cinema Camera

OVERVIEW
The EOS C80 is a professional video camera that boasts impressive features such as a 6K sensor with full frame BSI technology, allowing for high-quality footage. It also has a Triple Base ISO, providing flexibility in low-light situations. The camera uses the RF Mount system and is equipped with Dual Pixel CMOS AF II autofocus for smooth and accurate focusing. Additionally, it supports Cinema RAW Light 12 bits and 4:2:2 10 bits, ensuring excellent image quality.

Designed for single operators or small teams, the EOS C80 is perfect for professional videos and live productions. Its compact design and familiar ergonomics make it easy to use, while still delivering cinematic quality. Whether youre a professional videographer or a small production team, the EOS C80 is a reliable and versatile choice for all your filming needs.

SUMMARY
Dynamic Range: 16 Stops
Native ISO:
Lens Mount: Canon RF
Recording Formats:
Internal ND: Yes
Audio Inputs:
1 x 3.5mm
2 x 3-Pin XLR Mic/Line
Shutter:
Battery Mount / Type: Canon BP-A
Media Type: SD
Resolution and Frame Rate:
Sensor: Full Frame
Video Outputs:
1 x HDMI Type A
1x USB-C (3.2 Gen1)
Weight: 0-2kg
Wi-Fi: Yes

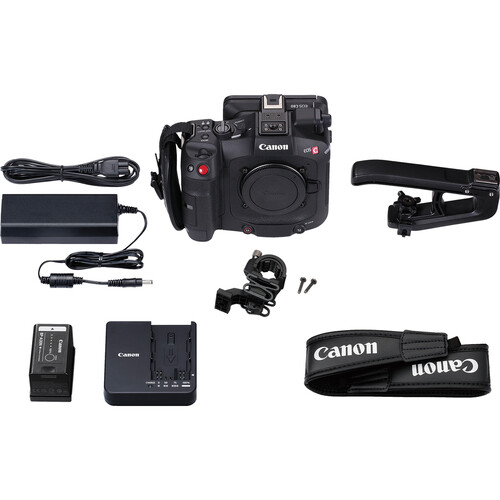

INCLUDED IN BOX
1x Canon EOS C80 – Body

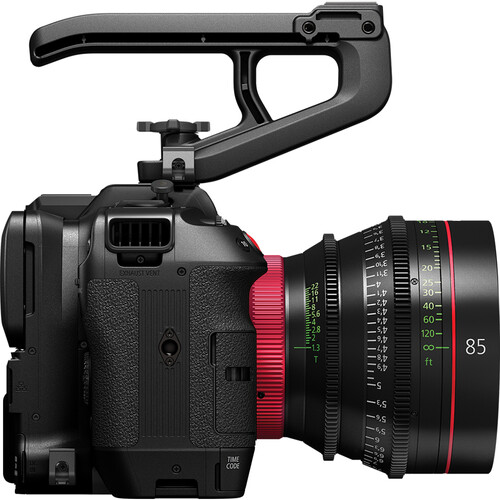

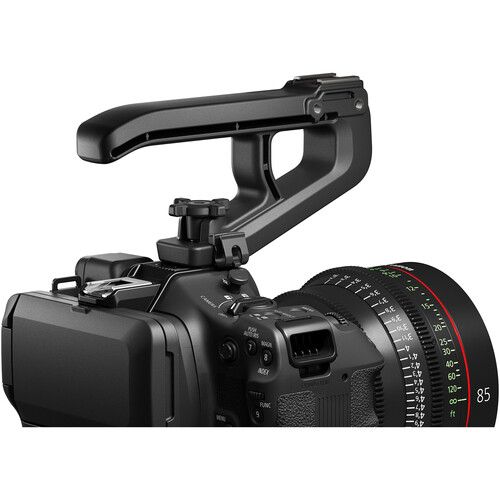

1x Handle Unit

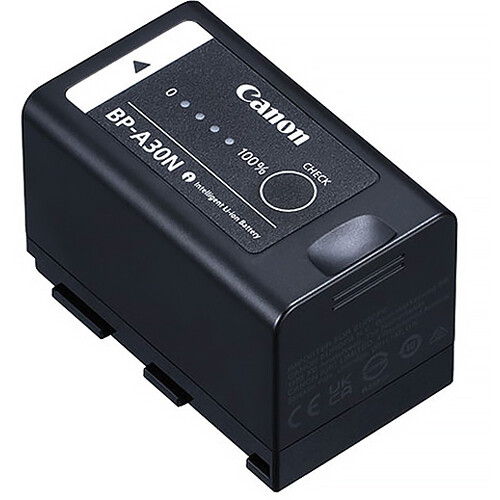

1x BP-A30N Battery Pack

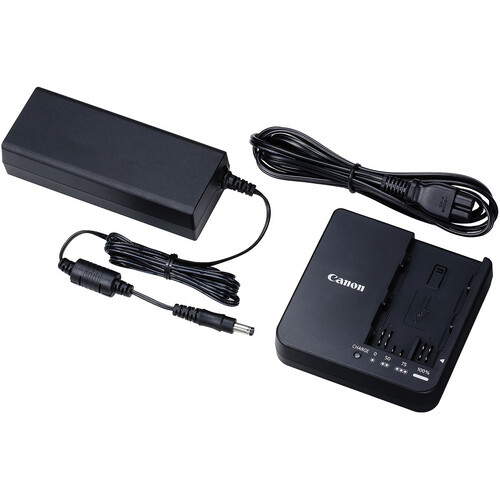

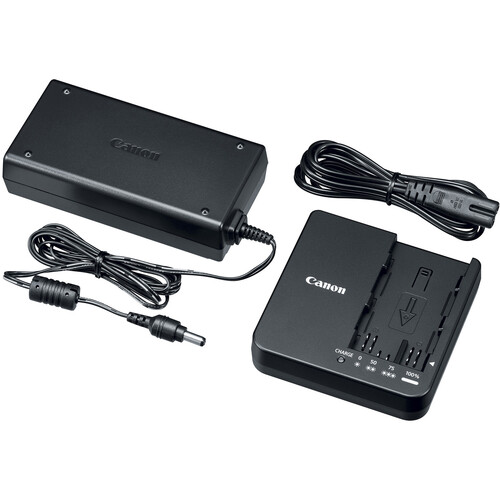

1x CA-CP300B Compact Power Adapter
1x CG-A20 Battery Charger
1x Microphone Holder & Screws
1x SS-1200 Shoulder Strap

About The Canon EOS C80 Cinema Camera
The EOS C80 delivers performance exceptional for professional videos and live productions, including productions carried out by a single operator or small teams, who demand quality High cinematic, compact design and familiar and flexible ergonomics.

Elevate your creativity
The EOS C80 is a compact powerhouse with a full frame 6K BSI sensor, triple base ISO, and 13 customisable buttons in a familiar, robust body. Building on Canon’s colour science to deliver warm skin tones and a naturally pleasing image. With professional connectivity, the EOS C80 is your partner for video and live productions.

The new cinema EOS is designed to excel in professional video and live production s, where cinematic high quality, compact, familiar design and flexible ergonomics are key to single operator or small team productions

Features and benefits

Full frame 6K BSI Stacked sensor
Capture breathtaking footage with Canon’s cutting-edge backside illuminated (BSI) sensor, delivering next-generation capabilities, triple base ISO (800/3200/12800)*, organic colour reproduction, and 16 stops of dynamic range.

Compact, ergonomic and familiar design
A familiar and updated design delivers improved ergonomics, connectivity, plus updated joystick and multi-function shoe. Use the top handle or build your own rig, with flexibility to shoot your way in challenging conditions.

Dual Pixel CMOS AF II with EOS iTR AF X
Enjoy updated, faster auto focus technology. Pin-sharp and ultra-responsive face, eye, head, body, and animal tracking covering the full sensor. Have full control with Detect-only /Detect Priority and customisable settings to help ensure your focus never slips.

Professional recording formats and high frame rates
Including 12-bit Cinema RAW Light LT up to 6K 30P, and 4:2:2 10-bit up to 4K 120P. Oversampled 4K is available via XF-AVC and improved XF-AVCS / XF-HEVCS (MP4) formats, all featuring detailed metadata and filename structures. Output HDMI RAW to compatible external recorders.

RF mount
Rely on cutting-edge prime, zoom, and cinema lenses for unrivalled optical performance, real-time lens metadata, and ultra-responsive AF/IS systems. Easily use your PL and EF lenses with a Canon mount adapter.

Uncompromised connectivity

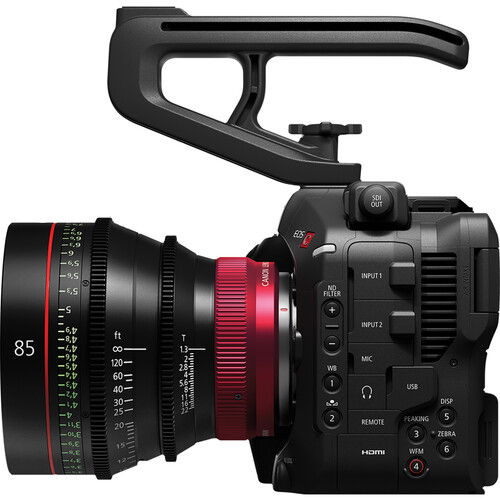

Professional on-body I/O includes 12G-SDI, HDMI, 2x mini-XLR, Mic In, Remote, and Timecode. Built-in Wi-Fi / Ethernet enables real-time IP streaming (SRT/RTSP) and remote control via XC Protocol and Multi-Camera Control app. Expandable with Canon’s Multi-Function Shoe.

Designed for the future
Real-time lens metadata output and capture for VP and VFX with support for Unreal Engine and After Effects, including distortion correction data. And create immersive VR experiences with Canon’s RF 5.2mm F2.8L Dual Fisheye lens.

New Technology Explained

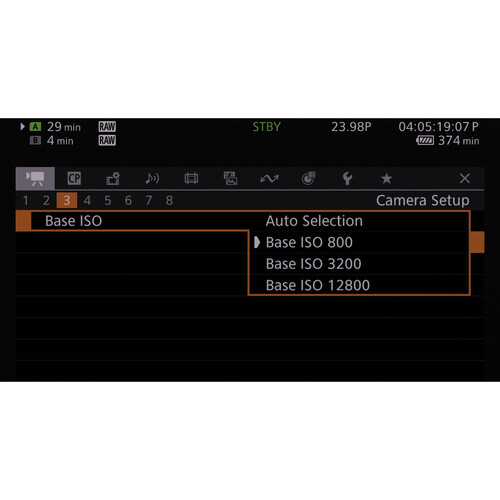

What is triple base ISO?
Triple base ISO delivers the best signal-to-noise ratio at multiple amplifications. Canon’s cutting-edge 6K BSI sensor measures at three base ISOs–800, 3200, and 12800 ISO*– choose between them, or use auto – switching and the EOS C80 will pick the optimal setting.

The basics: BSI sensors
The backside illuminated (BSI) sensor’s improved architecture places circuity underneath the sensor plane. Benefits include increased dynamic range, auto-focus and rolling shutter performance.

Why is metadata so important?
In Virtual Production and VFX workflows, camera metadata is essential to producing professional results. The EOS C80 and Canon RF mount lenses let you extract every drop of metadata–from ISO to f-stop and even distortion correction so your post process becomes smoother than ever.

IMAGE SENSOR
Sensor Full Frame Back-Side Illuminated m(BSI) CMOS sensor
System RGB primary colour filter (Bayer array)
Sensor Modes Full Frame / Super 35mm (crop)
Total Pixels Approx. 26.67 megapixels (6202 x 4300)
Effective Pixels Approx. 19.05 megapixels (6008×3170)
When 6000×3164 / 4096×2160 / 2048×1080 is selected as the resolution
Approx. 17.86 megapixels (5634×3170)
When 3840×2160 / 1920×1080 is selected as the resolution
Effective Sensor Screen Size Full Frame: 36.0 x 19.0 mm (40.7 mm on the diagonal)
When 6000×3164 / 4096×2160 / 2048×1080 is selected as the resolution
33.8 x 19.0 mm (38.7 mm on the diagonal)
When 3840×2160 / 1920×1080 is selected as the resolution
Dynamic Range1 Canon Log 2: 1600% / 16 stops (at ISO 800)
Canon Log 3: 1600% / 14 stops (at ISO 800)
Base ISO: 800 / 3200 / 12800 1
IMAGE PROCESSOR
Type DIGIC DV7
LENS
Lens Mount Canon RF mount

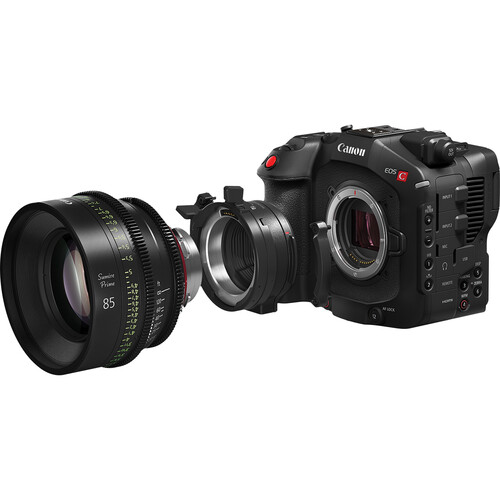

PL mount support via PL-RF Mount Adapter
EF mount support via EF-EOS R Mount Adapter
Lens Magnification Factor Full frame;
6000×3164, 4096×2160 or 2048×1080: Actual focal length x Approx. 1.06
3840×2160 or 1920×1080: Actual focal length x Approx. 1.12
Super 35mm (Crop); 4368×2304, 4096×2160 or 2048×1080
Actual focal length x Approx.1.46
Digital Lens Correction Peripheral Illumination Correction
Chromatic Aberration Correction
Diffraction Correction
Distortion Correction (RF lenses only)
ND Filter 2, 4 or 6 Stops. Up to 10 stops via built in ND filter system (in extended mode)
Iris Control 1/2-stop, 1/3-stop or FINE control Auto Iris
Cooke /I Technology Support Only when equipped with PL-RF Mount Adapter
Anamorphic Lens Support x2.0 / x1.8 / x1.3
Image Stabilization System 5-Axis Combination IS (Optical and Digital) with supported lenses
Digital 5-Axis IS for non IS lenses.
RECORDING
Internal Recording Media 2x SD Card (SD / SDHC / SDXC)
Recording Time2 Cinema RAW Light LT: 6000 x 3164 576 Mbps: approx. 118 Mins
Cinema RAW Light ST: 4368 x 2304 470 Mbps: approx. 145 Mins
XF-AVC: 4096×2160 500 Mbps: approx. 136 Mins
XF-AVC S: 4096×2160 500 Mbps: approx. 136 Mins
XF-HEVC S: 4096×2160 135 Mbps: approx. 505 Mins
Recording Formats Cinema RAW Light (CRM), XF-AVC (MXF), XF-AVC S (MP4), XF-HEVC S (MP4)
Relay Recording3 Yes
Double Slot (Simultaneous) Recording4 Yes
Simultaneous Recording in Multiple Formats Yes
System Frequency / Frame Rates 59.94Hz mode (59.94P / 59.94i / 29.97P / 23.98P)
50.00Hz mode (50.00P / 50.00i / 25.00P)
24.00 Hz mode (24.00P)
Cinema RAW Light Bit Rate/Bit Depth (PAL) 12-bit Cinema RAW Light LT:
FF / 6000 x 3164 / 25P [576 Mbps]
S35 / 4368 x 2304 / 50P [611 Mbps]
S35 / 4368 x 2304 / 25P [306 Mbps]
12-bit Cinema RAW Light ST: S35 / 4368 x 2304 / 25P [470 Mbps]
XF-AVC Recording Bit Rate/ Sampling (PAL / MXF) 4:2:2 10-bit (Intra-frame):
4096×2160 or 3840×2160 / 50P [500 Mbps]
4096×2160 or 3840×2160 / 25P [500 / 375 / 250 Mbps]
2048×1080 or 1920×1080 / 50P [250 Mbps]
2048×1080 or 1920×1080 / 50i [125 Mbps]
2048×1080 or 1920×1080 / 25P [125 Mbps]
4:2:2 10-bit (Long GOP):
4096×2160 or 3840×2160 / 50P [250 Mbps]
4096×2160 or 3840×2160 / 25P [150 Mbps]
2048×1080 or 1920×1080 / 50P [50 Mbps]
2048×1080 or 1920×1080 / 50i [50 / 25 Mbps]
2048×1080 or 1920×1080 / 25P [50 Mbps]
XF-AVC S Recording Bit Rate / Sampling (PAL / MP4) 4:2:2 10-bit (Intra-frame):
4096 x 2160 or 3840 x 2160 / 50P
[1000 / 750 / 500 Mbps]
4096 x 2160 or 3840 x 2160 / 25P
[500 / 375 / 250 Mbps]
2048 x 1080 or 1920 x 1080 / 50P [250 Mbps]
2048 x 1080 or 1920 x 1080 / 25P [125 Mbps]
4:2:2 10-bit (Long GOP) :
4096 x 2160 or 3840 x 2160 / 50P [250 Mbps]
4096 x 2160 or 3840 x 2160 / 25P [150 Mbps]
2048 x 1080 or 1920 x 1080 / 50P [50 Mbps]
2048 x 1080 or 1920 x 1080 / 25P [50 Mbps]
4:2:0 8-bit (Long GOP) :
4096 x 2160 or 3840 x 2160 / 50P [150 Mbps]
4096 x 2160 or 3840 x 2160 / 25P [100 Mbps]
2048 x 1080 or 1920 x 1080 / 50P [35 Mbps]
2048 x 1080 or 1920 x 1080 / 25P [35 Mbps]
XF- HEVC S Recording Bit Rate / Sampling (PAL / MP4) 4:2:2 10-bit (Long GOP):
4096 x 2160 or 3840 x 2160 / 50P [225 Mbps]
4096 x 2160 or 3840 x 2160 / 25P [135 Mbps]
2048 x 1080 or 1920 x 1080 / 50P [50 Mbps]
2048 x 1080 or 1920 x 1080 / 25P [50 Mbps]
4:2:0 10-bit (Long GOP):
4096 x 2160 or 3840 x 2160 / 50P [150 Mbps]
4096 x 2160 or 3840 x 2160 / 25P [100 Mbps]
2048 x 1080 or 1920 x 1080 / 50P [35 Mbps]
2048 x 1080 or 1920 x 1080 / 25P [35 Mbps]
Proxy Recording Bit Rate / Sampling (PAL)5 4:2:0 8-bit (Long GOP):
2048×1080 or 1920×1080 [35 / 16 / 9 Mbps] 1280 x 720 [6 Mbps]
4:2:0 10-bit (Long GOP): 2048×1080 or 1920×1080 [16 / 9 Mbps]
Slow / Fast Motion 6K RAW: up to 30FPS
4K recording: up to 120FPS (Long GOP) / 60FPS (Intra-frame)
2K recording: up to 180FPS (Long GOP) / 120FPS (Intra-frame)
Interval Record Yes
Frame Record Yes
Pre Record (Cache Record)6 3 Seconds
Digital Tele-converter 1.5x, 2x, 2.5x, 3x, Off
Photo Storage Media SD Card
Photo Recording Size7 4096×2160 / 3840×2160 / 2048×1080 / 1920×1080
SYSTEM

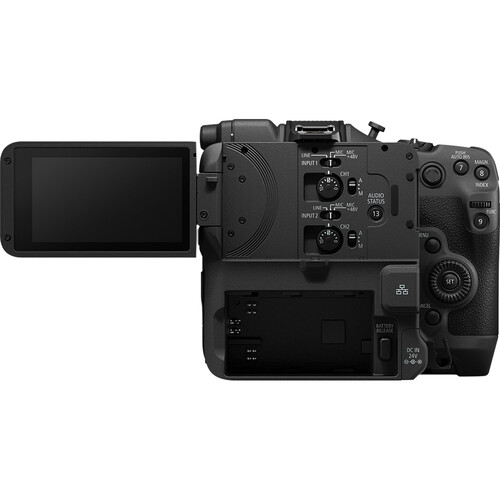

Display Type 3.5 inch LCD Touch Panel
Display Resolution approx. 2.76 million dots (1280 x RGB x 720)
Display Touch Screen Functions Focus Point Selection
Touch Screen UI for Shooting Settings
OSD for Vertical Shooting Yes
Wave Form Monitor Yes (Line / Line + Spot / RGB Parade / YPrPb Parade)
False Colour Display (Exposure Indication) Yes (6 Colour Index)
Colour Bars SMPTE / EBU / ARIB
Peaking Peaking 1, Peaking 2 (Colour, Gain, Frequency customisable)
Zebra Level 1; Level 2; Both
Markers On / Off selectable: centre, horizontal / vertical, grid, aspect, safe area and user marker.
Colour selectable
EVF
Built-In EVF No
INPUTS / OUTPUTS
Audio In 2x Mini XLR 3-pin connector
1x 3.5 mm stereo mini jack Built in Stereo microphones on camera body
Headphone Output 1x 3.5mm stereo mini jack
Video Monitor Output No
HDMI 1x HDMI (Type-A)
HDMI 1x USB-C Data Terminal (USB3.2 Gen1)
SDI Output 1x 12G-SDI Output (BNC)
Time Code 1x BNC Terminal (Input / Output)
Genlock No
Sync No
Multi-Function Shoe Yes (via camera body)
DC Input 1x 24V DC jack
Remote Control Terminal 1x 2.5 mm stereo mini jack
Lens Terminal No
Ethernet Terminal 1x RJ45Connector (1000BASE-T compatible)
Grip No
IP Streaming IP Streaming via Ethernet / Wi-Fi connection 9 Mbps / 4 Mbps: 1920 x 1080
(59.94p / 59.94i / 50.00p / 50.00i) UDP / RTP / SRT / RTP+FEC / RTSP+RTP
User LUT Input Yes, in-built LUTs available for monitoring.
Custom LUTs can be applied directly to internal recordings via
Look File function (compatible with 17 or 33 grid .cube files)
Video Connector No
Tally Signal Yes, via Wi-Fi or Ethernet using XC Protocol
Return Signal Input No
Default Function Button Settings 1. WB
2. SET WB
3. PEAKING
4. WFM
5. DISP
6. ZEBRA
7. AUTO IRIS
8. MAGN.
9. FUNC
10. (unassigned)
11. (unassigned)
12. AF LOCK
13. AUDIO STATUS
User Assignable Buttons 13x (Body)
MISCELLANEOUS
Tally Lamp Yes, 1x
Custom Dial Yes, 3x
Software Application Support Cinema RAW Development
XF Utility
EOS VR Utility
Remote Camera Control Application
RAW Plugin for Avid Media Access
RAW Plugin for Final Cut Pro
XF Plugin for Avid Media Access
EOS VR Plugin for Adobe Premiere Pro
CV Metadata Plugin for Adobe After Effects
Live Link Plugin for Unreal Engine
CV Metadata Extraction Tool
MP4 Join Tool
HEVC Activator
Smartphone Application Support Canon Multi-Camera Control
Content Transfer Professional
Browser Remote Control
EXPOSURE
Exposure Metering Standard / Spotlight / Backlight
Exposure Compensation AE shift function available. Target value (±8 steps from center)
Auto Exposure Mode Auto Iris / Auto ISO
Push Auto Iris Yes
Exposure Lock No
Auto Gain Control Setting Yes
ISO Sensitivity8 1-Stop Display: 100* / 160** / 200 / 400 / 800 / 1600 / 3200 / 6400 /
12800 / 25600 / 51200* / 102400* 1/3-Stop Display:
100* / 125* / 160 / 200 / 250 / 320 / 400 / 500 / 640 /
800 / 1000 / 1250 / 1600 / 2000 / 2500 / 3200 / 4000 /
5000 / 6400 / 8000 / 10000 / 12800 / 16000 / 20000 /
25600 / 32000* / 40000* / 51200* / 64000* / 80000* / 102400*
*when ISO Extended Range is set to ON
**when ISO Extended Range is set to OFF
Auto Focus System Dual Pixel CMOS AF II + EOS iTR AF X
AF Frame Sizes Full: approx. 100% (Vertical) x approx. 100% (Horizontal)
Large Zone (Vertical): Video display range approx. 97% (Vertical) x 25% (Horizontal)
Large Zone (Horizontal): Video display range approx. 43% (Vertical) x 76% (Horizontal)
Zone: Video display range approx. 43% (Vertical) x 25% (Horizontal)
Small Zone: Video display range approx. 15.9% (Vertical) x 11.8% (Horizontal)
Auto Focus Modes Continuous AF / One-Shot AF
Face Detection AF Yes (Eye / Face / Head / Body)
Animal Detection AF Yes (Dogs / Cats)
Focus Guide Yes, with compatible Canon lenses
Gain Setting9 ‘-6dB*, -3dB*, -2dB** ～ 42dB, 45dB*, 48dB*, 51dB*, 54dB*
*when ISO Extended Range is set to ON
**when ISO Extended Range is set to OFF
SHUTTER
Control Modes Speed / Angle / Clear Scan / Slow Shutter
Shutter Speed 1/1～1/2000 (total of 47 settings)
Shutter Angle 11.25º to 360º depending on frame rate
Slow Shutter (SLS) 1/3, 1/4, 1/6, 1/8, 1/12, 1/15, 1/25, 1/30 depending on frame rate
Clear Scan 23.97 Hz～1971 Hz depending on sensor mode / frame rate
CUSTOM PICTURE
Stored Configurations C1: Canon 709
C2: Canon Log 2
C3: Canon Log 3
C4: BT.709 Wide DR
C5: BT.709 Standard
C6: PQ
C7: HLG
C8: EOS Standard
C9: EOS Neutral
C10: User10 ～ User20
HDR-HLG Profile BT.2100: Corresponds to ITU-R BT.2100 Vivid:
corresponds to Traditional Colour in ITU-R T.2390
Colour matrix Neutral: Accurate colour reproduction
Production Camera: colour reproduction or use in movie production
Video: colour reproduction with contrast for TV broadcasts.
Image Adjustment Parameters Master Pedestal
Master Black
Black Gamma
Low Key Saturation
Knee Sharpness
Noise Reduction
Skin Detail
Colour
Matrix Tuning
White Balance
Colour Correction
WI-FI & GPS SPECIFICATIONS
Wi-Fi In-built (2.4 / 5GHz bands)
Supporting 802.11a/b/g/n/ac
GPS Information (Optional Accessory) Only when equipped with GP-E2 GPS Receiver
WHITE BALANCE
Auto Yes
Preset Daylight (5600K), Tungsten (3200K), Kelvin (2000K-15000K, 100K intervals), Set A, Set B
White Balance Shift -5 CC – +5 CC (Daylight / Tungsten) -20 CC – +20 CC (Kelvin)
TIME CODE
Count Up System Regen / RecRun / Free Run / External / Frame Count
AUDIO
Recording Format RAW / XF-AVC: Linear PCM (24-bit / 48 kHz,4 channels)
XF-AVC S / XF-HEVC S: Linear PCM (24-bit / 48 kHz,4 channels) or
MPEG2-AAC LC (16 bit 48kHz) 2 channels
ACCESSORIES
Supplied Handle Unit
BP-A30N Battery Pack
CA-CP300B Compact Power Adapter
CG-A20 Battery Charger
Microphone Holder
SS-1200 Shoulder Strap
Optional BP-A60N/BP-A30N Battery Pack
BP-A30/BP-A60 Battery Pack
CG-A20/CG-A10 Battery Charger
PL-RF Mount Adapter
EF-EOS R Mount Adapter
EF-EOS R Control Ring Mount Adapter
EF-EOS R Drop-In Filter Mount Adapter
EF-EOS R 0.71x Mount Adapter
Remote Camera Controller RC-V100
Remote Camera Controller RC-IP100
Remote Camera Controller RC-IP1000
DM-E1D Multi-Function Shoe Directional Stereo
Microphone OC-E4A Off-Camera Shoe Cord
IFC-100U / IFC-400U Interface Cable
Third Party Accessories Tascam CA-XLR2d XLR Microphone Adapter
POWER SOURCE
Power Supply (Battery) BP-A30N (Supplied)
BP-A60N / BP-A30 / BP-A60 (Optional)
Power supply (Mains) DC IN 24V Terminal
Power Consumption RAW LT, 6000×3164, 29.97P (14.5W)
RAW LT, 4368×2304, 59.94P (18.2W)
XF-AVC, 3840×2160, 59.94P (19.6W)
XF-AVC, 2048×1080, 59.94P (17.9W)
Recording Time With supplied BP-A30N battery pack:
RAW LT, 6000×3164, 29.97P: 170 Mins (Full Frame)
RAW LT, 4368×2304, 59.94P: 135 mins (Super35)
XF-AVC, 3840×2160, 59.94P: 125 mins (Full Frame)
XF-AVC, 2048×1080, 59.94P: 140 mins (Super35)
PHYSICAL SPECIFICATIONS
Dimensions (Main Body Only) approx. 160 x 138 x 116 mm
Weight (Body Only) approx. 1310g
Weight (Accessories) Handle Unit: Approx. 155g
BP-A30N Battery Pack: Approx. 243g
CA-CP300 B Compact Power Adapter: Approx. 219g
Battery Charger CG-A20: Approx. 145g
Microphone Holder + 2 screws: Approx. 60g
Operating Temperature Range Approx. 0 to 40°C, (85% relative humidity)
Approx. -5 to 45°C, (60% relative humidity)
Footnotes
1. When shooting in RAW or Canon Log 2/3
2. Based on 25P recording on a 512GB card at maximum bitrate
3. Relay Recording not available during RAW or S&F Recording
4. Double Slot Recording not available during S&F Recording
5. Proxy recording available in XF-AVC, XF-AVC S and XF-HEVC S (depending on the main format selected)
6. Pre Record not available during RAW or S&F Recording
7. Depending on Sensor Mode and Format selected
8. Available when Base ISO is set to Automatic
9. Available when Base ISO is set to Automatic

Full Frame 6K BSI Stacked sensor
Next-generation backside illuminated design maximises light sensitivity with 16 stops of dynamic range

Triple base ISO
For optimal signal-to-noise ratio at 800/3200/12800 ISO

RF mount system
Enhanced imaging system platform also adaptable to PL and EF mounts

Dual Pixel CMOS AF II
Including EOS iTR AF X for sharp auto focus across the full sensor

Cinema RAW Light
Record 12-bit internally for maximum flexibility in post production

XF-HEVC S, XF-AVC S, and XF-AVC
Oversampled 4K 4:2:2 10-bit MP4/MXF formats with detailed metadata

HDR
Produce high dynamic range content with Canon Log 2/3, PQ, and HLG

5- axis image stabilization
Combine Electronic IS with Optical IS for the most stable cinematic footage

Two card slots
Record to SD UHS-II

Professional I/O
Extensive professional connectivity including 12G-SDI.

Robust and compact
Versatile design adaptable to your shooting style
