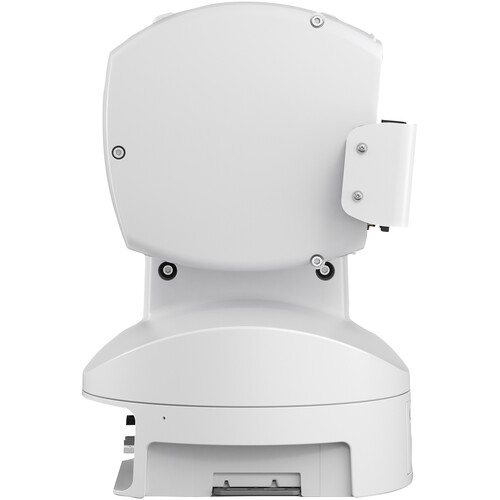

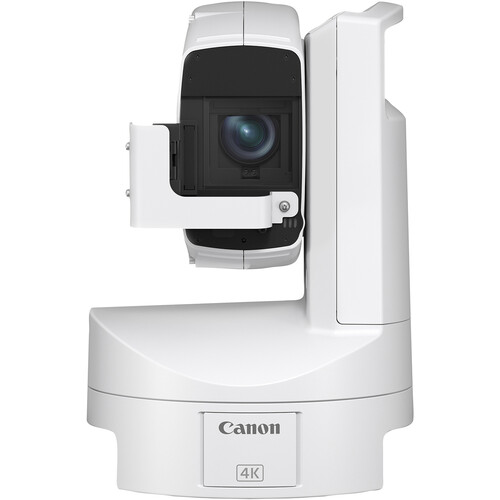

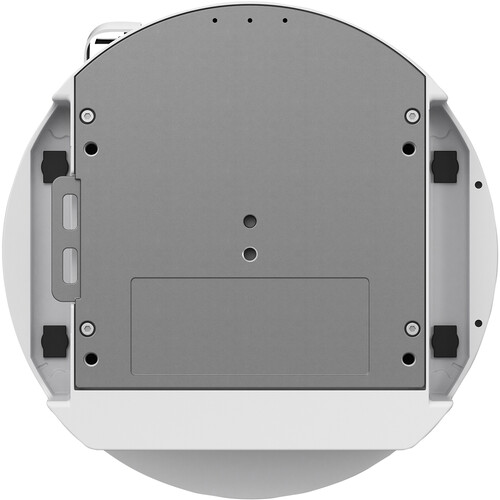

Canon CR-X300 4K PTZ Camera – White

Overview
The Canon CR-X300 is a powerful 4K PTZ camera designed for outdoor use. It features a 1/2.3-inch type sensor and advanced streaming and output options. The camera also has hybrid AF for precise focus, smooth control, and various custom picture settings. It is built with a robust and durable body that is IP65 rated and optimized for outdoor use.

Equipped with a DIGIC DV6 image processor, the CR-X300 can capture 4K footage at 30 frames per second in 4:2:2/10-bit. It also has a versatile 20x optical zoom lens and advanced streaming options, including support for various protocols. The camera is suitable for a wide range of applications, including broadcast, security, and monitoring, and can operate in various lighting conditions with its built-in ND filter and custom picture settings.

Summary
Focal Length: 3.67-73.4mm
Max Aperture: f/2.8
Lens Zoom: 20x Optical Zoom
Resolution and Frame Rate: 4K UHD
Sensor: CMOS
Video Outputs: HDMI
Weight: 5-8kg

Included in box
1x CR-X300 Main Unit
1x Power Cable
1x Connector Cover
1x Installation Guide
1x EAC Leaflet

About the Canon CR-X300 4K PTZ Camera – White
The CR-X300 is a small, robust all-weather PTZ (pan, tilt, zoom) remote 4K video camera offering similar features found in the CR-N300 but with extra protection from the elements.

Part of Canon’s latest 4K PTZ camera range suitable for outdoor use, the camera is Canon’s latest offering in the PTZ market and joins the CR-X500 as a smaller all-weather sister camera. CR-X300 is designed for outdoor use without the need for a separate weatherproof housing thus avoiding any possible compromise in image quality.

This new model boasts IP connectivity and streaming in a compact, IP65 rated weatherproof housing and is perfect for Broadcast, Security and Monitoring in all conditions.

Powerful 4K and Full HD imagery

A 1/2.3-inch type 4K/UHD CMOS Sensor with a DIGIC DV6 image processor captures detailed footage up to 4K 30P at 4:2:2/10-bit. Video can be output in Enhanced Full HD which benefits from 4K over sampling.

Versatile, high quality 20x optical zoom

CR-X300 has a 20x optical zoom lens with a focal length range of 29.3–601mm (35mm equivalent) in UHD as well as the option of a 20x Digital zoom. The CR-X300 also features Canon’s 4 Axis IS system for enhanced stability when shooting.

Advanced streaming and output options

The CR-X300 is highly flexible thanks to its 6G SDI and HDMI outputs, PoE++ as well as network connectivity that supports protocols such as Canon XC, RTP/RTSP, RTMP/RTMPS and NDI|HX video transmission plus standard communication, streaming protocols and control protocols.

Hybrid AF for precise focus

The CR-X300 combines high-precision contrast AF with high-speed phase-detection AF, ensuring accurate focus of the subject, even in low light.

Smooth, precise control

The CR-X300 is capable of simultaneous high precision Pan, Tilt and Zoom as slow as 0.3deg/sec, even with pre-sets, and is compatible with Canon’s RC-IP100 controller, Remote Camera Control Application plus selected third-party options.

For various lighting conditions

The CR-X300 is equipped with an internal 1/8 graduated type ND filter with the option to attach a 1/32 Enhanced ND filter mechanism that inserts a filter on the front surface of the lens unit, extending the ND range from 1/32 to 1/256.

Custom picture settings

The CR-X300 features a custom picture menu which allows for fine tuning of image settings in a wide range of shooting scenarios with other cameras such as Cinema EOS, for efficient workflow in a multi camera setup.

Robust and durable body

Rated IP65 water and dust resistant with additional salt repellence to perform from -15° to +40°C and in 90% humidity, the fully sealed body also features an inbuilt wiper for a clear view.

Camera
Image Sensor Type 1/2.3 (1/2.3 in.) single-plate CMOS sensor
Effective Pixels approx. 8.29 megapixels (3840 x 2160)
Lens f=3.67 – 73.4 mm, F/1.8 – 2.8, 20x optical zoom, 8-bladed circular aperture
Optical Zoom 20x optical zoom
Digital Zoom 20x digital zoom
Focal Length 3.67 – 73.4 mm, f/1.8 – 2.8,
35mm equivalent focal length:
[4K UHD] approx. 29.3 (W) – 601 mm (T)
[Full HD] approx. 30.5 (W) – 627 mm (T)
Angle of View [4K UHD]
Horizontal: 65.6° (W) – 3.6° (T)
Vertical: 39.8° (W) – 2.0° (T)
[Full HD]
Horizontal: 63.5° (W) – 3.4° (T)
Vertical: 38.4° (W) – 1.9° (T)
Minimum Subject Illumination Approx. 3.0 lux (shutter speed 1/60 sec., frame frequency 59.94 Hz (P (Programmed AE) shooting mode), auto slow shutter off)
Shutter Speed 1/6 – 1/2000 sec. (specific values depend on the frame frequency and frame rate)
Iris Manual/Automatic aperture
Gain 0.0 dB – 36 dB
ND Filter ND filter: 1/8 at maximum
Enhanced ND range, 1/32 – 1/256
IR Mode (IR Cut Filter Off) Yes, Electrically switchable
White Balance AUTO (AWB), Set A, Set B, preset settings (daylight: 5,600 K*, tungsten lamp: 3,200 K*),
colour temperature setting (2,000 K – 15,000 K), Manual
* colour temperatures are given for reference purposes only.
Focus
Focus mode Manual, Continuous AF, Face Detection AF, Tracking
AF type Hybrid AF, Contrast AF
Minimum Focusing Distance 1 cm (0.39 in.) at full wide angle, 60 cm (2.0 ft.) (from the front window)
Gamma Normal1, Normal3
Pan and Tilt Operation
Pan and Tilt Operation Range Horizontal ±180°
Vertical -40° – +215°
Pan and Tilt Operation Speed 0.3° – 60°/sec.
Control Protocol XC (Canon’s original), NU (Canon’s original), NDIHX,
Standard Communication (Serial), Standard Communication (IP)
Server
Video Output Format: SDI 3840 x 2160: 29.97P, 25.00P, 23.98P (4:2:2 10 bit)
1920 x 1080: 59.94P/59.94i, 50.00P/50.00i/25.00P, 29.97P/23.98P (4:2:2 10 bit)
1280 x 720: 59.94P, 50.00P (4:2:2 10 bit)
– Same video format required for SDI and HDMI (cannot select different formats for SDI and HDMI)
– When 3840 x 2160 is selected for SDI, video will not be outputted to HDMI.
Video Output Format: HDMI 3840 x 2160: 29.97P, 25.00P, 23.98P (4:2:2 10 bit)
1920 x 1080: 59.94P/59.94i, 50.00P/50.00i/25.00P, 29.97P/23.98P (4:2:2 10 bit)
1280 x 720: 59.94P, 50.00P (4:2:2 10 bit)
– Same video format required for SDI and HDMI (cannot select different formats for SDI and HDMI)
– When 3840 x 2160 is selected for HDMI, video will not be outputted to SDI.
Video Output Format: IP [Frame frequency 59.94 Hz]
1920 x 1080: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)
1280 x 720: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)
640 x 360: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)
[Frame frequency 29.97 Hz]
3840 x 2160: 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)
1920 x 1080: 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)
1280 x 720: 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)
640 x 360: 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)
[Frame frequency 50.00 Hz]
1920 x 1080: 50.00 fps, 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8 bit)
1280 x 720: 50.00 fps, 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8 bit)
640 x 360: 50.00 fps, 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8 bit)
[Frame frequency 25.00 Hz]
3840 x 2160: 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8 bit)
1920 x 1080: 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8 bit)
1280 x 720: 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8 bit)
640 x 360: 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8 bit)
[Frame frequency 23.98 Hz]
3840 x 2160: 23.98 fps, 11.99 fps, 5.99 fps (4:2:0 8 bit)
1920 x 1080: 23.98 fps, 11.99 fps, 5.99 fps (4:2:0 8 bit)
1280 x 720: 23.98 fps, 11.99 fps, 5.99 fps (4:2:0 8 bit)
640 x 360: 23.98 fps, 11.99 fps, 5.99 fps (4:2:0 8 bit)
– JPEG has one pattern fixed depending on the frame frequency (format is fixed and cannot be selected)
Resolution: 1280 x 720
When frame frequency is 59.94/29.97 Hz: 14.99 fps,
When frame frequency is 50.00/25.00 Hz: 12.50 fps,
When frame frequency is 23.98 Hz: 11.99 fps
Video Output Format: USB No
Video Transmission Protocol Protocol: XC (Canon’s original), RTSP/RTP, NDIHX, RTMP/RTMPS
Preset Number of presets: Max. 100 (including home position)
Interface
Communication Control LAN, Serial
Network Terminal LAN x 1, RJ45, 1000Base-T
SDI OUT Terminal 6G-SDI BNC jack (output only) x 1, 0.8 Vp-p/75 Ω, unbalanced
SMPTE 2081, 424, 425, ST 299-2 compliant
Embedded audio, Time code (VITC/LTC)
GEN-LOCK Terminal BNC jack x 1, 1.0 Vp-p/75 Ω, input only
HDMI OUT Terminal HDMI connector x 1, output only
RS-422 Terminal RJ45 connector x 1
INPUT 1/INPUT 2 Terminals No
MIC Terminal No
USB Terminal No
External Device I/O Terminal AUX connector x 1
Physical Features
Operating Environment [Temperature/Humidity Resistance]
Operating Temperature Range: -15°C – +40°C (+5°F – +104°F)
Start-up Temperature Range: -10°C – +40°C (+14°F – +104°F)
Humidity: 90% or less (without condensation)
[Survival Wind Speed]
15 m/sec.: Normal operation
30 m/sec.: Operation possible
60 m/sec.: Non destruction
Power Supply PoE: PoE++ power supply via LAN connector (IEEE802.3at compliant)
– PoE and PoE+ cannot be used
External power source 12 V DC (Use the included power cable with DC plug)
Power Consumption PoE++ Input: Approx. 39.8 W* max. (body only)
DC Input Approx. 37.7 W max. (body only)
Dimensions (W x H x D) Approx. 217 x 311 x 217 mm (8.54 x 12.24 x 8.54 in.) (excluding protrusions)
Weight Approx. 7.0 kg (15.5 lb.) (body only)
IP Rating IP65
Wiper Equipped
Noise NC45 or lower (when operating at 60°/sec.)

4K UHD – 1/2.3-inch type sensor for stunning quality
Advanced streaming and output options
Hybrid AF for precise focus even in low light
Smooth, precise control
For various lighting conditions
Custom picture settings
Robust and durable body
Optimised for Outdoor use with IP65 Rated body
6G-SDI / HDMI / LAN (PoE ++) Outputs
35mm equivalent focal length of 29.3mm – 601mm (UHD only) plus an additional 20x digital zoom in FHD
Powerful DIGIC DV6 Image Processor to capture up to 4K 30P at 4:2:2/10-bit
Support for wide range of Protocols: RTMP, NDI|HX, RTP/RTSP, RTMPS Canon XC Protocol and Standard Communications Protocol
