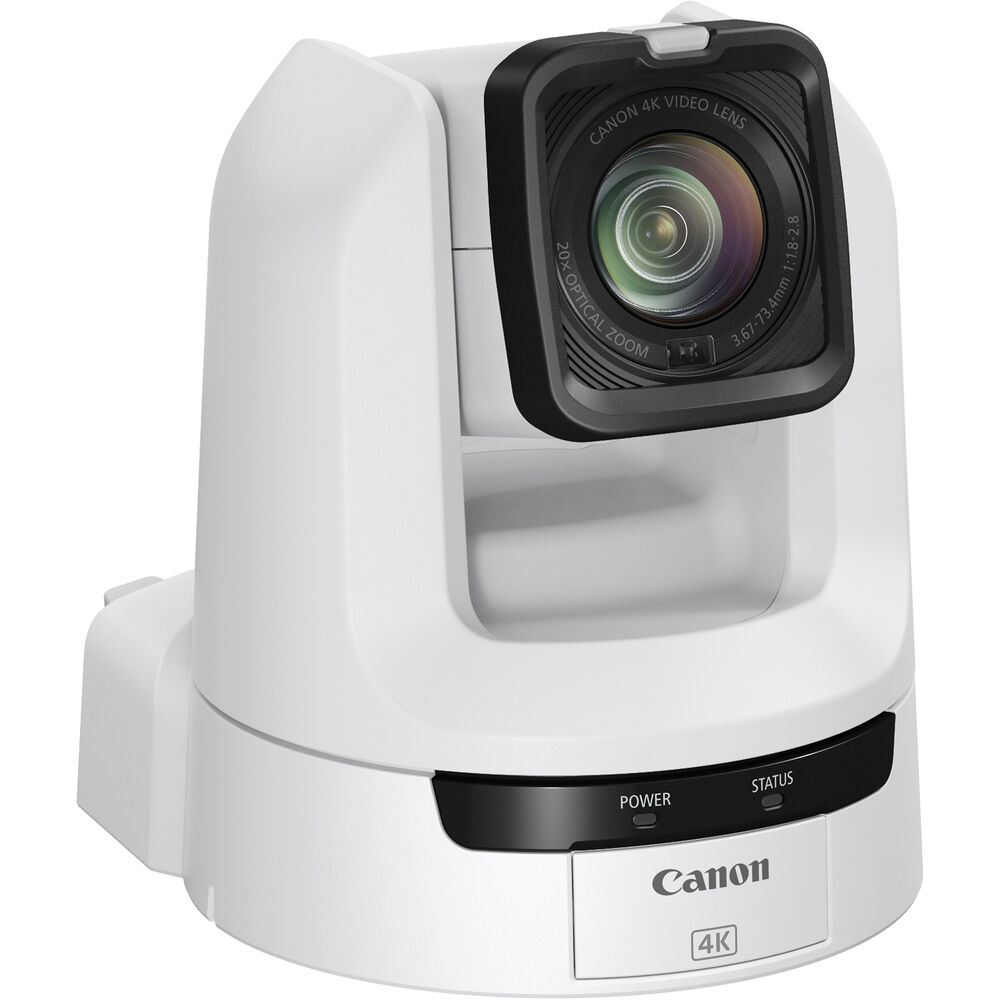

Canon CR-N300 4K PTZ Camera – White

OVERVIEW
CLOSE THE DISTANCE WITH UNRIVALLED CLARITY

The Canon CR-N300 4K PTZ Camera in white is a game-changing product for content creators and streamers. With its advanced features and cutting-edge technology, it simplifies the process of creating and streaming content. Equipped with a 1/2.3-inch CMOS sensor and 4K UHD resolution, this camera delivers razor-sharp imagery with exceptional detail and clarity.

Razor Sharp 4K Imagery

The CR-N300 features a 1/2.3 inch type CMOS sensor and DIGIC DV6 processor, which work together to produce stunning 4K UHD imagery at up to 30p. It also has the ability to capture outstanding Full HD footage with over sampled HD processing. This results in superior image quality that is perfect for any production.

20x Optical Zoom for Incredible Flexibility

With Canon’s advanced 4K optics and a flexible 20x optical zoom, the CR-N300 allows you to capture all the details you need. Its focal range of 29.3-601mm (35mm equivalent) provides great flexibility, while the built-in image stabilisation ensures minimal disruption when moving the camera.

IP Streaming and Control to Transform Your Productions

The CR-N300 offers a wide range of IP control and streaming protocols, including NDI | HX2, RTMP, RTP/RTSP, RTMPS, and Canon’s XC Protocol. This allows for greater control and flexibility in your production setup. It can also be easily integrated into new or existing systems, making it a versatile option for any production.

Hybrid AF for Precise Focus

This camera combines high-precision contrast AF with high-speed phase-detection AF to ensure rapid and accurate focusing, even in low light conditions. It also features a bespoke external sensor that measures the distance to the subject and compares it with the point of focus determined by the Contrast AF system. This Hybrid AF system provides fast, accurate, and reliable autofocus with greater precision than Contrast AF alone.

Flexible Connectivity for Your Workflow

The CR-N300 offers a variety of connections to cater to different workflows. It has a HDMI port that can achieve 4K UHD, 4:2:2 10-bit, as well as a 3G-SDI port, USB port, 3.5mm audio input, and a PoE LAN port.

Smooth, Precise Control

With its high-precision drive mechanism, the CR-N300 allows for smooth and precise Pan and Tilt movements. It can be easily controlled using devices such as the RC-IP100, REMOTE CAMERA CONTROL APPLICATION, or a tablet via Wi-Fi, making it effortless to capture the perfect shot.

Image Presets for Quick and Easy Use

The CR-N300 comes with multiple Image Presets, which allow for quick and easy adjustments of video settings for different environments. It also has the ability to register up to 100 preset positions, making it simple and convenient to use for productions.

Small and Compact for Easy Installation

Measuring at just 154 x 178 x 164 mm (W x H x D) and weighing only 2.4kg, the CR-N300 is small and compact, making it easy to install in environments where space is limited.

SUMMARY
Focal Length: 3.67-73.4mm
Max Aperture: f/2.8
Lens Zoom: 20x Optical Zoom
Resolution and Frame Rate: 4K UHD
Sensor: CMOS
Video Outputs: 1x HDMI
Weight: 2-5kg
INCLUDED IN BOX
1 x Canon CR-N300 4K PTZ Camera – White

About The Canon CR-N300 4K PTZ Camera – White
CLOSE THE DISTANCE WITH UNRIVALLED CLARITY

The CR-N300 makes content creation and streaming simple. Equipped with a 1/2.3-inch CMOS sensor with 4K UHD resolution, 20x image stabilised optical zoom and a wide range of streaming and control protocols, it’s ideal for remote productions.

Razor Sharp 4K Imagery

A 1/2.3 inch type CMOS Sensor and DIGIC DV6 processor combine to deliver exceptional 4K UHD imagery (up to 30p), or outstanding Full HD footage thanks to over sampled HD processing. These technologies provide an image quality with superior levels of detail fit for any production.

20x Optical zoom for incredible flexibility

Capture all the detail you need, thanks to Canon’s advanced 4K optics which feature a flexible 20x optical zoom covering a broad focal range of 29.3-601mm (35mm equivalent), ensuring great flexibility. Equipped with image stabilisation, for minimal image disruption when moving.

IP Streaming and Control to transform your productions

The CR-N300 boasts a comprehensive range of IP control and streaming protocols1 up to 4K UHD 30p allowing for greater control for your production needs. Featuring major protocols such as NDI | HX2, RTMP, RTP/RTSP, RTMPS and Canon’s XC Protocol, it will fit into most new or most existing systems, making it an extremely flexible option.

Hybrid AF for precise focus

The CR-N300 combines high-precision contrast AF with high-speed phase-detection AF, ensuring rapid and accurate focusing of the subject, even in low light conditions. Equipped with a bespoke external sensor which measures the distance to the subject and compares the point of focus with that determined by the Contrast AF system. This Hybrid AF system is particularly effective in low light situations and provides fast, accurate and reliable Autofocus with greater accuracy than Contrast AF alone.

Flexible connectivity for your workflow

The CR-N300 features a whole host of connections to ensure the ultimate flexibility in workflows. Featuring a HDMI port which can achieve 4K UHD, 4:2:2 10-bit. The camera also boasts a 3G-SDI port, USB Port, 3.5mm Audio Input and a PoE LAN port.

Smooth, precise control

The CR-N300 is equipped with a high-precision drive mechanism, enabling the Pan and Tilt movement to be finely adjusted at variable speeds using controllers such as RC-IP100, REMOTE CAMERA CONTROL APPLICATION or a tablet via Wi-Fi, to capture the perfect shot.

Image Presets for Quick and Easy Use

The CR-N300 is equipped with multiple Image Presets that allow for quick and easy adjustments of video settings for specific environments. The user can also register up to 100 preset positions on the CR-N300 making productions simple and easy.

Small and compact for easy installation

The CR-N300 is small and discreet at 154 x 178 x 164 mm (W x H x D) and weighs just 2.4kg making it ideal to be installed in environments where space is at a premium.

Model Type Indoor PTZ low-mid
Camera
Image Sensor Type 1/2.3 (1/2.3 in.) single-plate CMOS sensor
Effective Pixels approx. 8.29 megapixels (3840 x 2160)
Lens f=3.67 –73.4 mm, F/1.8 –2.8, 20x optical zoom, 8-bladed circular aperture
Optical zoom 20x optical zoom
Digital zoom 20x digital zoom
Focal Length f=3.67 –73.4 mm, F/1.8 –2.8,35mm equivalent focal length:
[4K UHD] approx. 29.3 (W) –601 mm (T)
[Full HD] approx. 30.5 (W) –627 mm (T), Digital
Angle of View
[4K UHD] Horizontal: 65.6 (W) –3.6°(T) Vertical: 39.8°(W) –2.0°(T)
[Full HD] Horizontal: 63.5 (W) –3.4°(T) Vertical: 38.4°(W) –1.9°(T)
Minimum Subject Illumination Approx. 1.5 lux (shutter speed 1/30 sec., frame rate 59.947P (P (Programmed AE) shooting mode, auto slow shutter on)
Shutter Speed 1/6 –1/2000 sec. (specific values depend on the frame frequency and frame rate)
Iris Manual/Automatic aperture
Gain 0.0 dB –36 dB
ND Filter Built-in (1/8 at maximum, gradation ND), motor operate
White Balance AUTO (AWB), Set A, Set B, preset settings (daylight: 5,600 K*, tungsten lamp: 3,200 K*), colour temperature setting (2,000 K – 15,000 K), Manual * Colour temperatures are given for reference purposes only.
Focus Focus mode: Manual, Continuous AFAFtype: Hybrid AF, Contrast AF
Gamma Normal1 (Standard), Normal3 (BT.709)
Pan and Tilt Pan operation range: Horizontal ±170°Pan operation speed: 0.2°– 300°/sec.Tilt operation range: Vertical -30°–+100°Tilt operation speed: 0.2°–170°/sec.
Server
Video Output Format
SDI 1920 x 1080: 59.94P/59.94i, 50.00P/50.00i/25.00P, 29.97P/23.98P (4:2:2 10 bit)
1280 x 720: 59.94P, 50.00P (4:2:2 10 bit)
–Same video format required for SDI and HDMI (cannot select different formats for SDI and HDMI)
–When 3840 x 2160 is selected for HDMI, video will not be outputted to SDI.
HDMI 3840 x 2160: 29.97P, 25.00P, 23.98P (4:2:2 10 bit)
1920 x 1080: 59.94P/59.94i, 50.00P/50.00i/25.00P, 29.97P/23.98P (4:2:2 10 bit)
1280 x 720: 59.94P, 50.00P (4:2:2 10 bit)
–Same video format required for SDI and HDMI (cannot select different formats for SDI and HDMI)
–When 3840 x 2160 is selected for HDMI, video will not be outputted to SDI.
IP 3840 x 2160: 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)
1920 x 1080: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)
1280 x 720: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)
640 x 360: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)
–If 59.94/50.00 Hz is selected for the frame frequency, the 3840 x 2160 format cannot be selected.
–A frame rate that exceeds the frame frequency cannot be selected.
–JPEG has one pattern fixed depending on the frame frequency (format is fixed and cannot be selected)
Resolution: 1280 x 720
When frame frequency is 59.94/50.00 Hz: 14.99 fps, when frame frequency is 23.98 Hz: 11.99 fps, when frame frequency is 29.97/25.00 Hz: 12.50 fps
USB 1920 x 1080
59.94 Hz: 12.00 fps, 5.00 fps
50.00 Hz: 12.50 fps, 5.00 fps
1280 x 720
59.94 Hz: 12.00 fps, 5.00 fps
50.00 Hz: 12.50 fps, 5.00 fps
640 x 360
59.94 Hz: 12.00 fps, 5.00 fps
50.00 Hz: 12.50 fps, 5.00 fps
Protocol XC (Canon’s original), RTSP/RTP, NDI/HX*, RTMP/RTMPS, Standard Communication (Serial), Standard Communication (IP) *NDI is a trademark or registered trademark of NewTek, Inc. in the United States and other countries
Preset Number of presets: Max. 100 (including home position)
Interface
Communication Control LAN, Wi-Fi, Serial, IR
Network Terminal LAN x 1, RJ45, 1000Base-T
3G-SDI OUT Terminal BNC jack (output only) x 1, 0.8 Vp-p/75 Ω, unbalanced SMPTE 424, SMPTE 425, SMPTE ST 299-2 compliant Embedded audio, Time code (VITC/LTC)
GEN-LOCK Terminal –
HDMI OUT Terminal HDMI connector x 1, output only
RS-422 Terminal RJ45 connector x 1
INPUT 1/INPUT 2 Terminals –
MIC Terminal ϕ3.5 mm stereo mini jack (unbalanced, plug-in power supported)
Sensitivity (MIC): -72 dBV(Manual volume center, full scale -18 dB)/1 kΩ or more/Att.: 20 dB
Sensitivity (LINE): -10 dBV(Manual volume center, full scale -18 dB)/1 kΩ or more
Supply Voltage: 2.4 V DC (Bias resistance: 2.2 kΩ)
USB Terminal Type-A (USB 2.0) x 1 (future expansion)Type-C (USB 3.1) x 1
Other
Operating Environment Temperature 0°C –+40°C (+32°F –+104°F)Humidity10% – 90% (without condensation)
Power Supply PoE: PoE+ power supply via LAN connector (IEEE802.3at compliant)
–PoE cannot be used
External power source: 24 V DC (using included AC adaptor)
Power Consumption PoE+ Input: Approx. 16.2 W* max. (body only)
DC Input: Approx. 15.0 W max. (body only)
* Class 4 (25.5 W required) for power supply devices
Dimensions (W x H x D) Approx. 154 x 178 x 164 mm (6.06 x 7.01 x 6.46 in.) (excluding protrusions)
Weight Approx. 2.2 kg (4.86 lb.) (body only)
