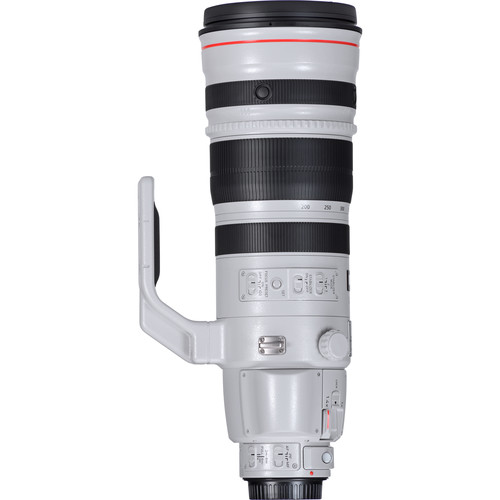

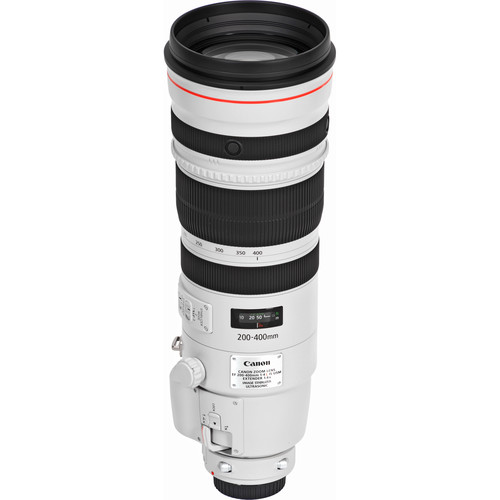

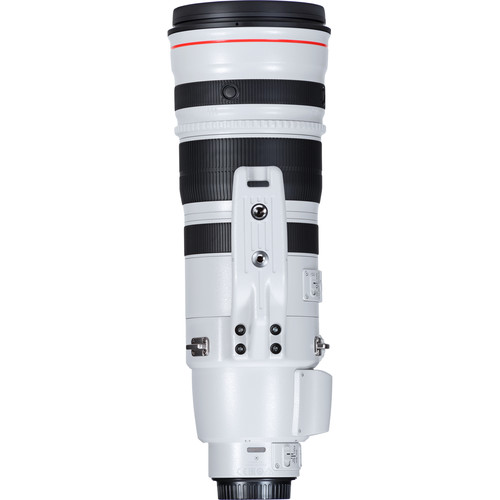

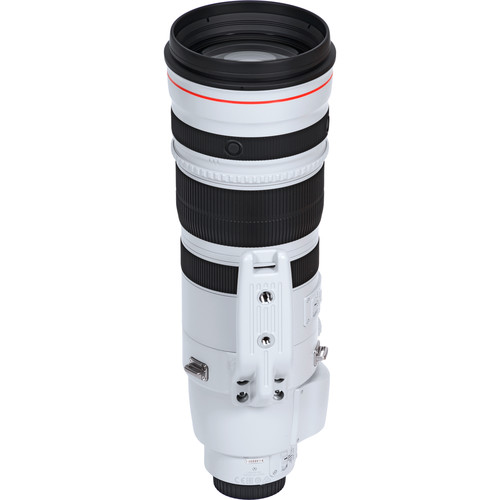

Canon 200-400mm f/4L – EF

Overview
The Canon EF 200-400mm f/4L IS II USM 1.4x is a high-performance, versatile lens designed for professional photographers. It features a built-in 1.4x extender, fluorite and UD elements, and a fast f/4 maximum aperture. The lens also has a ring-type USM for fast autofocus, a 4-stop Image Stabilizer, and a protective fluorine coating on the front and rear elements. With a minimum focus distance of 2.0m when the extender is enabled, this lens is perfect for capturing distant action in sports or wildlife photography, as well as for film and television documentary applications.

The EF 200-400mm f/4L IS USM Extender 1.4x also offers powerful and flexible focusing options, including full-time manual override and Power Focus mode for video shooting. Its robust magnesium alloy design and dust and moisture resistant construction make it suitable for use in harsh conditions. With superior image quality and a versatile zoom range, this lens is a must-have for professional photographers who demand the best performance from their equipment.

Summary
Focal Length: 200-400mm
Max Aperture: f/4
Lens Type: Super Telephoto
Lens Mount: Canon EF
Type:
Video
Weight: 2-5kg

About the Canon 200-400mm f/4L – EF
The Canon EF 200-400mm f/4L IS II USM 1.4x is a high-magnification, versatile super-telephoto zoom lens featuring integrated Image Stabilizer technology, fast f/4 maximum aperture* and a built in 1.4x extender (*the maximum aperture becomes f/5.6 when the 1.4x range extender is deployed). These features combine to provide an outstandingly versatile lens for professional sports or wildlife photographers as well as broadcast film and television documentary applications.

A robust magnesium alloy design, environmental protection and specialised lens coatings also make it ideal for mobile use, combining with the finest quality optics to deliver exceptional results, even in the most harsh conditions.

Get closer to the action with superior image quality
The reach of the EF 200-400mm f/4L IS USM Extender 1.4x is boosted by its internal 1.4x extender, which is engaged or disengaged at the flick of a lever to provide an extended focal length of 280mm to 560mm – allowing photographers to get even closer to distant action. Ensuring the highest image performance, the optical design includes both fluorite and Ultra-low Dispersion (UD) lens elements, which help minimise chromatic aberration and eliminate colour blurring. Advanced anti-reflection SubWavelength Structure Coating (SWC) and Super Spectra Coating also reduce ghosting and flare. Thanks to the use of the latest optical technologies, image performance is unaffected when the integrated extender is used.

With a fixed f/4¹ aperture the use of high shutter speeds to capture fast-paced action or a low-light scene is possible. A newly designed optical Image Stabilizer, which provides users with a four stop advantage, while IS ‘Mode 3’ applies image stabilisation only at the time of exposure – ensuring that photographers can pan with fast-paced action without IS overcompensating for movement. This feature is ideal for sports photographers, who typically have only a split-second to capture a subject in front of them.

Powerful, flexible focusing
The EF 200-400mm f/4L IS USM Extender 1.4x features Canon’s pioneering ring-type Ultrasonic Motor providing fast, silent autofocusing. For those who prefer to fine-tune focus themselves, full-time manual override allows photographers to manually focus at any moment when using AF. The Power Focus (PF) mode also increases versatility during movie shooting with the EOS-1D C or EOS-1D X, enabling photographers to achieve an accurate pull-focus effect at one of two speeds, simply by twisting the focus recall ring and stopping at a pre-set distance.

High-performance design for professional demands
Designed to answer professional demands for superior image quality and versatile zoom range, the EF 200-400mm f/4L IS USM Extender 1.4x a boasts a premium-quality design befitting Canon’s industry-renowned L-series lenses.

The tough magnesium alloy chassis ensures that, despite the inclusion of the 1.4x extender, the lens is a similar weight to lenses of comparable focal length. Fluorine coatings on the front and rear lens elements also reduce the ability of dirt to cling to the lens surface, while a dust and water-resistant construction allows photographers to shoot in challenging weather conditions. The combination of outstanding optical performance, versatility, weight and tough construction will make it an essential part of any professional sports or wildlife photographer’s kitbag.

SPECIFICATIONS
Angle of view (horzntl, vertl, diagnl) 10° – 5°10′, 7° – 3°30′, 12° – 6°10′
with extender 7° 20′- 3°40′, 4° 55′- 2°25′,8° 50′ – 4°25′
Lens construction (elements/groups) 25/20 (33/24 with extender)
No. of diaphragm blades 9
Minimum aperture 32(45 with extender)¹
Closest focusing distance (m) 2
Maximum magnification (x) 0.15 (0.21 with extender)
Distance Information Provided
Image stabilizer 4-stops
AF actuator Ring USM²
PHYSICAL SPECIFICATIONS
Dust/moisture resistance* Yes
Filter diameter (mm) 52 drop in
Max. diameter x length (mm) 128×366
Weight (g) 3620
ACCESSORIES
Lens Cap E-145C
Lens hood ET-120 (WII)
Lens case/pouch 200-400
Magnification w/ Extension Tube EF12 II 0.20-0.03 (0.36- 0.02 with extender)
Magnification w/ Extension Tube EF25 II 0.26-0.07 (0.52- 0.05 with extender)
Extender Compatiblity Compatible
Other Accessories Lens wide strap B
SPECIFICATIONS WITH EF 1.4X III
Focal Length 280-560 (392-784 with built in extender)
Maximum Aperture 5.6-45¹ (8-64 with built in extender)
Maximum Magnification 0.21
AF Possible Yes²
IS Yes³
SPECIFICATIONS WITH EF 2X III
Focal Length 400-800 (560 -1120 with built in extender)
Maximum Aperture 8-64 (11 -91 with built in extender)
Maximum Magnification 0.31
AF Possible Yes² (No with built in extender)
IS Yes³
Minimum aperture ¹ Minimum aperture if using 1/3stop
increments
AF actuator ² Full time Manual focus
AF Possible ² AF only possible with EOS-1 series Cameras and 5D Mark III with Firmware update
IS ³ IS will not work with EOS film cameras with the exception of the EOS-1v when used with Mark III Extenders

High-performance 200-400mm lens
Built in 1.4x Extender
Fluorite and UD elements
Fast f/4 max aperture
Ring-type USM for fast AF
4-stop Image Stabilizer
Protective fluorine coating on front and rear elements
2.0m min focus distance with extender enabled
9 blade aperture
Power focus for video
Dust and moisture resistant
