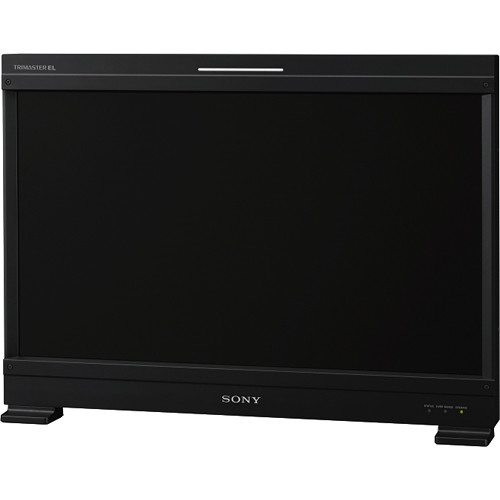

BVM-E251 24.5in HD Monitor

Overview
Sony’s TRIMASTER EL™ technology combines their high-performance OLED display with the sophisticated TRIMASTER™ technology to provide the ultimate picture performance. This includes a wide viewing angle, accurate black reproduction, high purity and accurate colour reproduction, quick response time with no motion blur, and a very high contrast ratio. Additionally, the BVM-E251 monitor is equipped with a flicker-free mode to remove any visible flicker, and Sony’s Super Top Emission™ technology enhances colour purity and light-emission efficiency.

The BVM-E251 also features an ultimate Sony display engine with high-precision signal processing, multi-format signal support, auto white balance, and a high-quality I/P conversion algorithm. It has a low video delay, individual panel calibration, and can faithfully reproduce interlaced signals. Other helpful features include Picture & Picture mode, pixel zoom mode, gamut error display, and support for S-Log3 and S-Log2 EOTF. The monitor also has a 2K picture resolution function, a scan switch, native scan mode, and an HD frame capture function. A separate control unit with a USB memory slot is available for added convenience.

Summary
Screen Size: 24.5 Inch
Resolution: 1920 x 1080
Inputs:
BNC
HDMI
LAN
XLR
Outputs: BNC
Power Supply: AC
Recording: No

About the BVM-E251 24.5in HD Monitor
24.5-inch TRIMASTER EL™ reference monitor, with 2nd Gen OLED. Dramatically improved viewing angle for critical picture evaluation in the studio and on-set

For professional applications such as colour grading, high-end editing, broadcasting and scientific research, Sony’s leading edge Organic Light-Emitting Diode (OLED) technology and signals processing technology ensures absolutely outstanding performance with the BVM-E251. The colour shift depending on the viewing angle has reduced to less than half compared the 1st generation OLED panel. It allows several people to evaluate the image with extreme accuracy at the same time, increasing the monitor’s versatility in top end monitoring solutions.

State-of-the-art product

Super Top Emission technology enhances OLED’s intrinsic benefits to deliver outstanding black performance, a quick response time with virtually no motion blur, and a wide colour gamut. A 12-bit output digital signal processing engine provides a nonlinear cubic conversion colour-management system that delivers precise colour reproduction, stunning picture uniformity, smoother-than-ever gamma performance, and picture quality consistency.

Flicker free mode

The TRIMASTER EL OLED panel’s superb quick response and scan-driving performance deliver stunning picture quality with virtually no motion blur. However, there is a possibility that flicker is just visible especially when a lower frequency signal is displayed (24p, 24PsF, and 50i). To remove visible flicker, the BVM-E251 is equipped with Flicker-free mode.

DC Operation

The BVM-E251 can be DC operated. This feature gives more flexibility and mobility to users who want the larger size screen for the on-set application.

ITU-R BT.2020 support for 4K production

BVM-E251 is surely an HD monitor that conforms to ITU-R BT.709 colour space. Responding to an increase of the demand of using an HD monitor in a 4K production, BVM-E251 newly supports ITU-R BT.2020 colour space and transfer matrix.

Accepts computer signals via HDMI

The BVM-E251 accepts various computer signals input up

Picture Performance
Panel OLED panel
Picture size (diagonal) 623.4 mm (24 5/8 inches)
Effective picture size (H x V) 543.4 x 305.6 mm (21 1/2 x 12 1/8 inches)
Resolution (H x V) 1920 x 1080 pixels (Full HD)
Aspect 16:09
Pixel efficiency 99.99%
Panel drive RGB 10-bit
Panel frame rate 48 Hz / 50 Hz / 60 Hz (48 Hz and 60 Hz are also compatible with 1/1.001 frame rates)
Viewing angle (panel specification) 89°/89°/89°/89° (typical) (up/down/left/right contrast >10:1)
Standard luminance 100 cd/m2 (preset1 to preset5 at EOTF 2.4)
48 cd/m2 (preset (DCI)) (1.0 Vp-p reference signal, 100% white signal input)
Colour temperature D55, D61, D65, D93, DCI*1, DCI XYZ and user 1-5 (5,000 k to 10,000 k adjustable)
Colour space (colour gamut) ITU-R BT.2020*2, ITU-R BT.709, EBU, SMPTE-C, DCI-P3*2, BVM-E251 Native*3, S-Gamut/S-Gamut3*2, S-
Gamut3.cine*2
Transmission Matrix ITU-R BT.2020 (Non-constant luminance is supported), ITU-R BT.709, ITU-R BT.601, SMPTE 240M
EOTF 2.2, 2.4, 2.6, CRT, S-Log3(SDR), S-Log2(SDR)

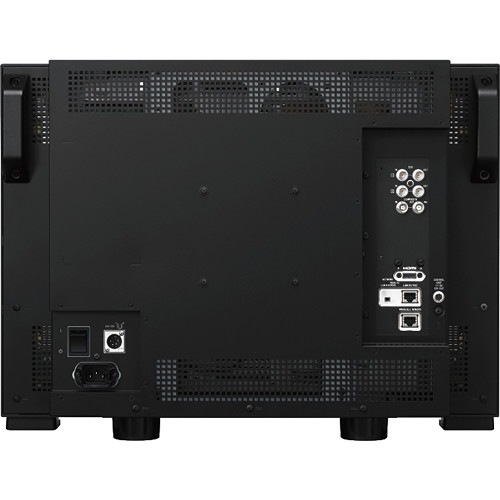

Input
SDI BNC (x2)
HDMI HDMI (x1) (HDCP correspondence, deep colour correspondence)
Composite Video BNC (x1)
Parallel remote RJ-45 modular connector 8-pin (x1) (Pin-assignable)
Serial remote (LAN) Ethernet (10BASE-T/100BASE-TX), RJ-45 (x1
DC Input XLR (x1)
Output
SDI BNC (x2)
Composite Video BNC (x1)
DC 12V out Circle 4-pin (female) (x1)
General
Power requirement AC 100 V to 240 V, 1.2 A to 0.6 A, 50/60 Hz, DC 24 V to 28 V, 4.5 A to 3.9 A
Power consumption Approx. 117 W (AC power supply) (max.)
Approx. TBA W (AC power supply) (average power consumption in the default status)
Dimensions (W x H x D) (W x H x D) 576.0 x 424.0(408.0)* x 148.0 mm (22 3/4 x 16 3/4(16 1/16)* x 5 7/8 inches)
* Height without legs
Mass Approx. 10.3 kg (22 lb11 oz)
Supplied accessories AC power cord (1), AC plug holder (1), CD-ROM (1), Before Using This Unit (Japanese, English 1), HDMI cable
holder(1)

Superb picture performance

Sony TRIMASTER EL™ technology combines the ultimate performance of Sony OLED display with the highly sophisticated TRIMASTER™ technology to provide the highest level of picture performance:

Wide viewing angle
Accurate Black Reproduction
High purity and accurate colour reproduction
Quick response time with virtually no motion blur
Very high contrast ratio

Flicker free mode

The TRIMASTER EL OLED panel’s superb quick response and scan-driving performance deliver stunning picture quality with virtually no motion blur. However, there is a possibility that flicker is just visible especially when a lower frequency signal is displayed (24p, 24PsF, and 50i). To remove visible flicker, the BVM-E251 is equipped with Flicker-free mode.

Super Top Emission™ technology

Sony’s Super Top Emission™ technology has a micro-cavity structure which incorporates colour filters. The micro-cavity structure uses an optical resonance effect to enhance colour purity and improve light-emission efficiency. In addition, the colour filter of each RGB further enhances the colour purity of emitted light, and reduces ambient light reflection.

Ultimate Sony display engine

High-precision signal processing engine has been developed to fulfil the reference monitor criteria and is optimized to maximize OLED panel performance. This engine incorporates 12-bit output accuracy at each process, and provides both a high quality I/P conversion algorithm and a highly accurate colour management system.

Multi-format signal support

The BVM-E251 monitor can accept almost any SD or HD video format, such as analogue composite video, HDMI and SDI, and variable computer signals through HDMI.

Auto White Balance

The colour temperature and white balance of BVM Series monitors can be automatically adjusted by the Auto White Balance function using specified colour temperature probes, such as

High quality I/P conversion technology

The BVM-E251 monitor uses a sophisticated I/P conversion technique that keeps artefacts that are often seen in flat panel displays to a minimum such as edge jaggedness, conversion errors, etc.

Low video delay

The BVM-E251 display engine ensures a picture delay that is less than one field.

Panel calibration

Every BVM-E251 monitor is carefully calibrated at the factory on an individual basis, providing a high level of accuracy and stability for characteristics such as gamma and uniformity.

Interlaced display mode

Faithfully reproduces interlaced signals, emulating CRT monitors.

Picture & Picture mode

The unique Picture & Picture function of the BVM-E251 allows simultaneous display of two input signals on the monitor’s screen. This function is extremely convenient for making instant adjustments to two input sources. Four modes are available to provide users with enhanced operational flexibility: Side by Side, Wipe, Butterfly and Blending.

Pixel zoom mode

A selected area of the displayed picture can be enlarged on a pixel basis, up to eight times in size both vertically and horizontally.

Gamut error display

BVM-E251 master monitor incorporates a Gamut Error Display function that detects irregular signal input.

S-Log3 and S-Log2 EOTF

BVM-E251 master monitor incorporates EOTF tables to reproduce images captured using S-Log3 and S-Log2. S-Log3 and S-Log2 are techniques used in Sony’s digital cinematography cameras that allows the full latitude of the camera sensor to be maintained throughout the production chain.

2K picture resolution

The 2048 Image Slide function of the BVM-E251 allows 2K resolution (2048 x 1080 pixels) images to be mapped, pixel-to-pixel, on the full-HD (1920 x 1080 pixels) panel without picture degradation. The monitor is equipped with a slide function that allows the display of missing pixels in native mode from the left and right part of the picture.

Scan Switch

The Scan Switch function allows switching between under scan (-3%), normal scan (0%), and over scan (5%).

Native Scan (pixel-to-pixel display)

The Native Scan function is a unique display mode that reproduces images withoutchanging the input signal’s pixel count.

HD Frame Capture mode

The HD Frame Capture function of the BVM Series allows a picture frame from the 3G-SDI and HD-SDI input to be captured and saved as a picture file on a USB memory media (BKM-17R) or a Memory Stick™ media (BKM-16R). This picture file can be used as a reference for various purposes, for example, for picture-tone adjustments between past images and for camera-framing adjustments.

Separate control unit with USB memory slot

A separate BKM-17R Monitor Control Unit is available for the BVM-E251. It is equipped with a USB Memory slot enables users to download and save all monitor set-ups such as input channel configuration, control preset adjustments, white balance settings and maintenance parameters.

Centralised monitor-wall control

The BVM Series monitors and the BKM-17R Monitor Control Unit are equipped with an Ethernet port, allowing remote control of display parameters across a standard Ethernet connection. One BKM-17R Monitor Control Unit can control up to 32 BVM monitors.

DC operation

The BVM-E251 can be DC operated. This gives more flexibility and mobility to users who want the larger size screen for the on-set application.

Character Off button

To facilitate parameter adjustments, the On-Screen Menu indication can be taken off the screen, while in Menu mode. The On-Screen Menu indication can be toggled on or off with a simple press of a button on the BKM-17R’s front panel.

Copy function for monitor setup and adjustment data

The optional BKM-17R Monitor Control Unit includes a USB Memory slot to save and load monitor configuration and adjustment settings. This is useful for multiple monitor systems, allowing the transfer of one monitor’s setup and adjustment data to another. This data can also be transferred via the BVM’s Ethernet connection.

+12dB Chroma UP function

A Chroma UP button located on the front panel of the BKM-17R allows the chroma level to be boosted by +12dB. This is a convenient feature for adjusting camera white balance with a higher degree of accuracy.

Marker settings

BVM Series monitors can display various markers, including an aspect marker, safe area marker and centre marker. In addition to this flexible selection of marker types, detailed display settings of each marker are offered. For example, the colour, brightness, horizontal/vertical position and width of aspect markers can all be controlled, while the height and width of safe area markers can be adjusted.

Aspect switch

The aspect ratio can be switched between 4:3, 16:9, 2.39: 1 and 1.896:1 depending on the input signal.

Wide variety of functions

The user has a wide variety of over 40 functions to choose from. Each of these can be assigned to any of the 16 function buttons (F1 to F16) on the BKM-17R controller.Press ENTER to display the F1 to F8 (or F9 to F16) button assignment on screen.

Status display

Simply assign STATUS to one of the function buttons (F1 to F16) on the BKM-17R Monitor Control Unit. The user can instantly grasp the whole monitor status and configurations without having to search through menus.

Ultimate picture quality and viewing angle for high-end reference monitoring applications
Multi-format capability for Broadcast and 2K Digital Cinematography
Accurate colour management, gamma tracking, picture uniformity & consistency
Flicker free function and video latency below one field
Inherit same level of features as predecessor BVM-E series
DC power operation for On-set Cinematography
