Bright Tangerine ONE Tray

Overview

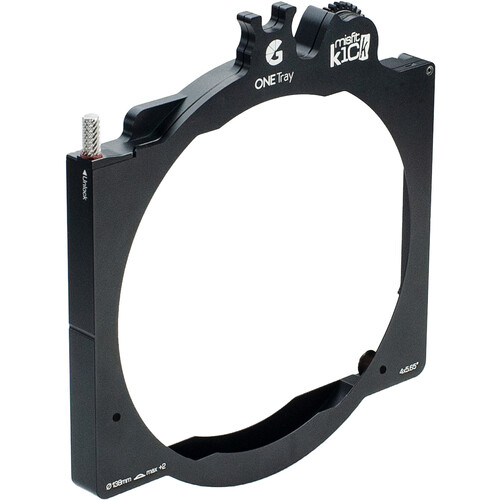

The ONE Tray for the Misfit Kick is a versatile filter frame that can be used for a variety of purposes. It can accommodate 138mm round and 4×5.65″ industry-standard filters in a single, double-width tray. The Clockwork Orange system ensures smooth rotation on any 138mm round filter and can even accommodate diopters up to +2 in strength. It is compatible with the Misfit Kick or any other ARRI LMB standard matte box.

The ONE Tray offers the flexibility of being used for multiple setups in a double-width tray without compromising field of view. It accepts industry-standard filters, eliminating the need for proprietary or specialized geared filters. The spacing of the two filters has been optimized for better performance and the tray can also accommodate diopters for closer focus or macro work. Various kits can be created using the ONE Tray and listed accessories, making it a convenient and versatile tool for filmmakers.

Included in box
1x Bright Tngerine ONE Tray for Misfit Kick

About the Bright Tangerine ONE Tray
The ONE Tray for the Misfit Kick is more than an ordinary filter frame. It can be used as a Rota Pola, Variable ND, diopter tray & more, all in a single tray.

There are many dedicated diopter & rota pola tra ys available, but compared to traditional frames, the ONE Tray offers the flexibility of being able to be used for multiple setups in a double-width tray without compromising your field of view.

The ONE Tray accepts industry-standard filters, giving you the freedom of choice to use any filter manufacturer without needing to buy proprietary or specialised geared filters. There is also no need to buy additional parts like expanding backs for your matte box, you now can use either your diopters, PV or 138mm round filters within a single tray unit 138mm round filters are securely placed within the frame with no chance of falling out.

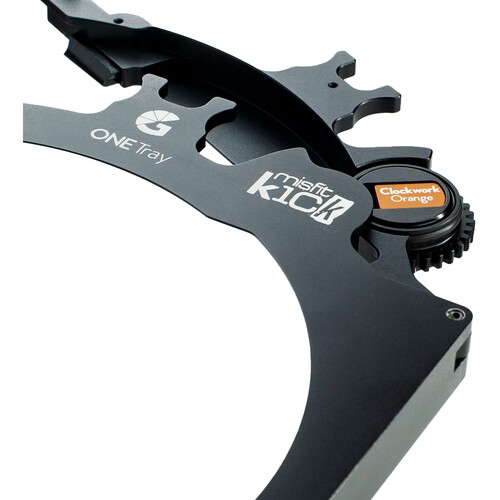

The ONE Tray adds geared rotation to any standard 138mm round filter. There is no need to buy proprietary or specialised geared filters. The Clockwork Orange system uses a spring-loaded drive system to provide smooth, buttery rotation whether it’s being operated by hand or a motor. Whether it’s a circular polariser or split diopter, the filter rotation will always be smooth, consistent and repeatable, with no chance of the gears slipping. To create a variableND setup, simply add 4×5.65” polariser into the front.The spacing of the two filters has been optimised for better performance, only 0.9mm apart, maintaining field of view.

The ONE Tray can also accommodate diopters up to +2 in strength which can be used for closer focus or macro work. When using strengths of +¾ or less, the front PV stage can still be utilised for ND or diffusion. For creative shots, the ONE Tray can be mounted off-axis to the lens using the separate adapters that mount to either M4 point on the bottom of the tray. Prism flares & diopter effects can then be positioned anywhere in the frame.

The following kits can be made by using the listed accessories:

ONE Tray Rota Pola Kit (Tiffen) – Tiffen 138mm Circular Polarising Filter W138UCP
ONE Tray Rota Pola Kit (Schneider) – Schneider 138mm Circular Polarising Filter 68-013138
ONE Tray Rota Pola Kit (Lindsey Optics) – Lindsey Optics 138mm Circular Polarising Filter L-138-CPOLA-AR
ONE Tray VND Kit (Tiffen) – Tiffen 138mm Circular Polarising Filter W138UCP + Tiffen 4×5.65″ Linear Polariser Filter W45650UPOL
ONE Tray VND Kit (Schneider) – Schneider 138mm Circular Polarising Filter 68-013138 + Schneider 4×56″ Linear Polariser Filter 68-013056
ONE Tray VND Kit (Lindsey Optics) – Lindsey Optics 138mm Circular Polarising Filter L-138-CPOLA-AR + Lindsey Optics 4×56″ Linear Polariser Filter L-4565-LPOLA-AR

Weight .093 kg
Dimensions 15 × 3 × 15 cm
Filter Size 138mm Polarizer & Diopter, 4×4″, 4×5.65″ PV

Multipurpose Filter Tray – use as for Rota Pola, Variable ND, Diopter Tray & more
Accommodates 138mm round & 4×5.65″ industry-standard filters in a single, double-width tray
Clockwork Orange system provides consistent, smooth rotation on any 138mm round filter
Accommodates diopters up to +2 in strength
Compatible with Misfit Kick or any other ARRI LMB standard matte box
